CT4540-0
CT4540 Series
Active Catalog1500V 6mm Magnetic Adapter, 4mm Angled Sheathed Jack
1500V mm Magnetic Connector, 4mm - Angled Sheathed J, Black
Where to Buy
Select Variant
Overview

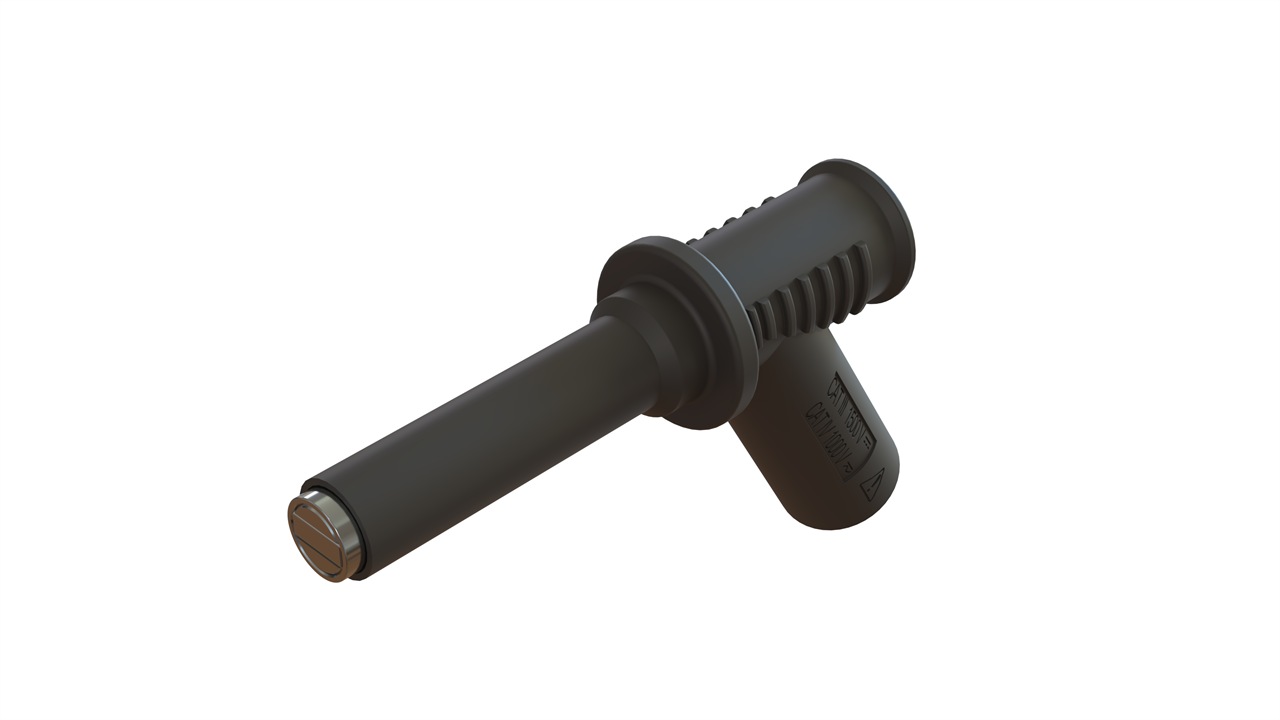

Introducing the CT4540-0 (Black) and CT4540-2 (Red) Magnetic Adapters from Cal Test Electronics — engineered to deliver a secure and dependable connection to terminal block screw heads or any metal contact points. Designed in accordance with IEC 61010-031, these probes carry a 1,500 V CAT III / 1,000V CAT IV rating and support up to 2 A, making them ideal for field service, and laboratory use. Each connector features a high-strength N35 rare-earth magnet for hands-free operation. The angled connector, coupled with a 4 mm sheathed banana jack create seamless and effortless compatibility.

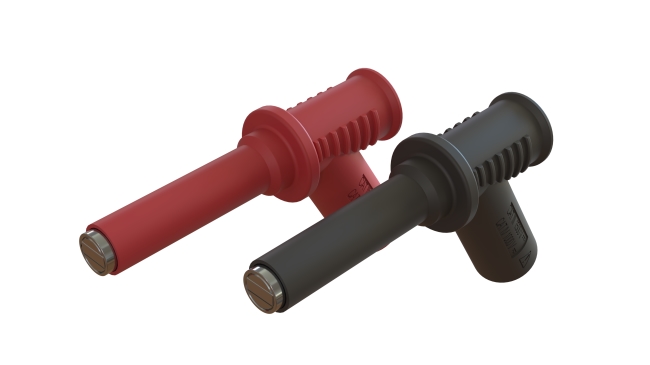

Also available as a convenient black/red pair: P/N CT4540-0_2.
Features:
- Rated 1,500 VDC CAT III / 1,000 V CAT IV with 2 A current capacity
- 6 mm diameter N35 magnetic contact tip for secure connections
- Accepts 4 mm sheathed banana plugs for standard interfacing
- Available in black (CT4540-0) and red (CT4540-2); custom colors on request
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4540-0 | 1500V mm Magnetic Connector, 4mm - Angled Sheathed J, Black | $15.00 | Active Catalog | 1 Year | Magnetic | 1500 VDC CAT III / 1000 V CAT IV | Black | Brass, Nickel Plated | Polypropylene | 2 A | - | EA |
 |
CT4540-0_2 | 1500V mm Magnetic Connector, 4mm - Angled Sheathed J, B/R | $30.00 | Active Catalog | 1 Year | Magnetic | 1500 VDC CAT III / 1000 V CAT IV | Black/Red Pair | Brass, Nickel Plated | Polypropylene | - | EA | |
 |
CT4540-2 | 1500V mm Magnetic Connector, 4mm - Angled Sheathed J, Red | $15.00 | Active Catalog | 1 Year | Magnetic | 1500 VDC CAT III / 1000 V CAT IV | Red | Brass, Nickel Plated | Polypropylene | - | EA |
Specifications
- Type
- Magnetic
- Rated Voltage
- 1500 VDC CAT III / 1000 V CAT IV
- Color
- Black
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polypropylene
- Max Current
- 2 A
- Max Voltage
- -
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- Taiwan
- Lead Time
- 70 days
- See More Specifications
- Product Drawing
Documents
- Product DrawingProduct Drawing
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
