CT4534-2
CT4534 Series
Active CatalogTerminal Block Adapter, Solid Conductor to 4 mm Banana Jack

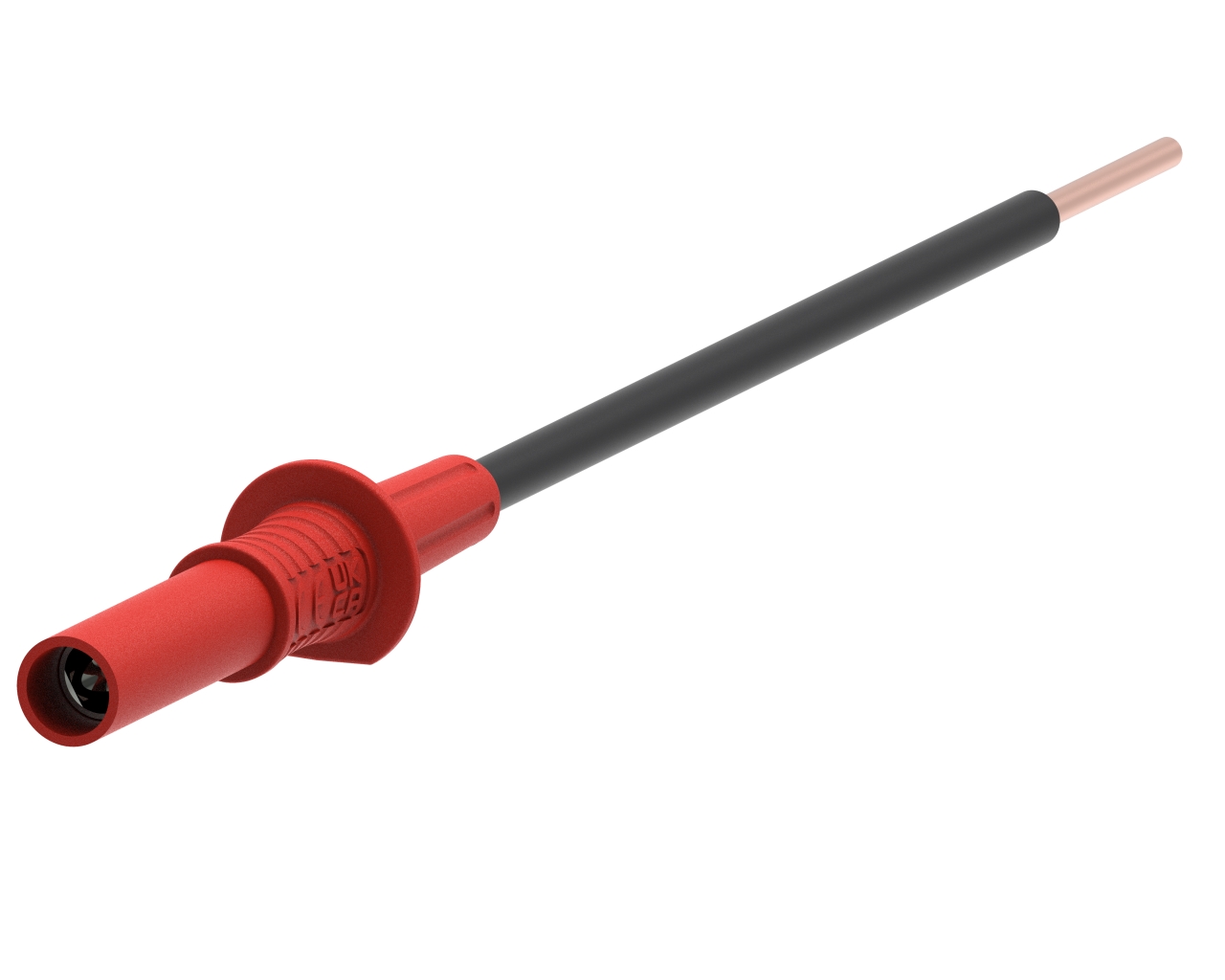

4 mm, Terminal Block Adapter, Solid Conductor, Red
Where to Buy
Overview
Cal Test’s new CT4534 adapter provides a 4 mm banana jack connection for terminal block test measurements. The terminal block screw easily tightens down on the adapter's solid wire conductor, enabling the user to make a hands-free connection. The adapter’s durable design features a bendable 14 AWG solid conductor wire, which allows the user to position the 4 mm jack for a convenient test set up. With a 1000 V CAT III / 600 V CAT IV rating, it is the ideal choice when working in category III or IV environments. As is with all of Cal Test’s products, the CT4534 is designed to be convenient, reliable, and safe.
Available in 7 colors individually, or as a black & red pair. See Order Information below.
Features:
- IEC 61010-031 category rated
- 14 AWG Solid conductor
- Durable design
- Enables 4 mm plug connectivity
- Secures easily in screw terminal
- Bendable wire material
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4534-0 | 4mm, Terminal Block Adapter, Solid Conductor, Black | $12.00 | Active Catalog | 1 Year | Adapter | 1000 V CAT III / 600 V CAT IV | Black | Brass, Nickel Plated | Polypropylene | 15 A | - | EA |
 |
CT4534-1 | 4mm, Terminal Block Adapter, Solid Conductor, Brown | $12.00 | Special Order | 1 Year | Adapter | 1000 V CAT III / 600 V CAT IV | Brown | Brass, Nickel Plated | Polypropylene | 15 A | - | EA |
 |
CT4534-2 | 4mm, Terminal Block Adapter, Solid Conductor, Red | $12.00 | Active Catalog | 1 Year | Adapter | 1000 V CAT III / 600 V CAT IV | Red | Brass, Nickel Plated | Polypropylene | 15 A | - | EA |
 |
CT4534-4 | 4mm, Terminal Block Adapter, Solid Conductor, Yellow | $12.00 | Active Catalog | 1 Year | Adapter | 1000 V CAT III / 600 V CAT IV | Yellow | Brass, Nickel Plated | Polypropylene | 15 A | - | EA |
 |
CT4534-5 | 4mm, Terminal Block Adapter, Solid Conductor, Green | $12.00 | Special Order | 1 Year | Adapter | 1000 V CAT III / 600 V CAT IV | Green | Brass, Nickel Plated | Polypropylene | 15 A | - | EA |
 |
CT4534-6 | 4mm, Terminal Block Adapter, Solid Conductor, Blue | $12.00 | Active Catalog | 1 Year | Adapter | 1000 V CAT III / 600 V CAT IV | Blue | Brass, Nickel Plated | Polypropylene | 15 A | - | EA |
 |
CT4534-8 | 4mm, Terminal Block Adapter, Solid Conductor, Grey | $12.00 | Special Order | 1 Year | Adapter | 1000 V CAT III / 600 V CAT IV | Grey | Brass, Nickel Plated | Polypropylene | 15 A | - | EA |
 |
CT4535 | 4mm Jack, Terminal Block Adapter, Solid Conductor, B/R Pair | $24.00 | Active Catalog | 1 Year | Adapter | 1000 V CAT III / 600 V CAT IV | Black/Red Pair | Brass, Nickel Plated | Polyamide | 15 A | - | EA |
Specifications
- Type
- Adapter
- Rated Voltage
- 1000 V CAT III / 600 V CAT IV
- Color
- Red
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polypropylene
- Max Current
- 15 A
- Max Voltage
- -
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
