Overview

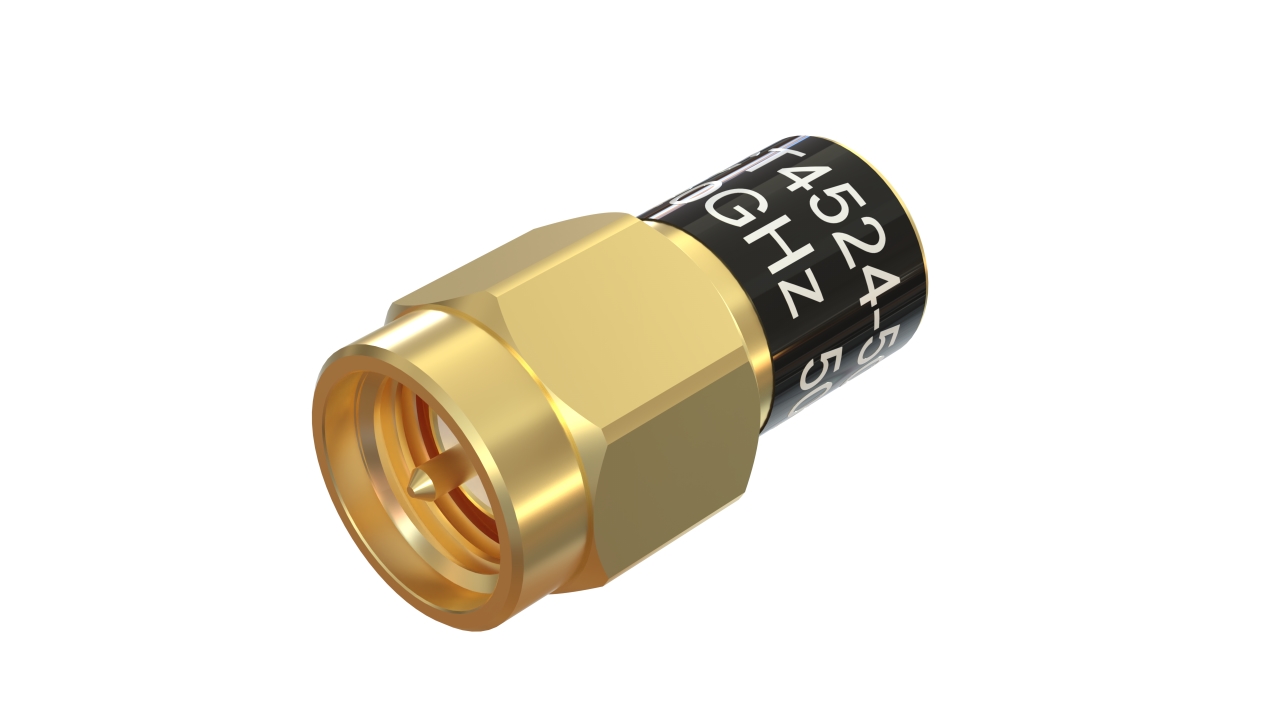

Introducing the CT4524-50 SMA Male Terminator, designed for operation from DC to 20 GHz frequency with 1 Watt power rating and a low VSWR of 1:20:1 across the entire frequency range. This terminator’s 50 Ω impedance minimizes signal reflections and ensuring optimal signal integrity. Built with a gold-plated brass body, gold-plated center contact, PTFE dielectric, and silicone rubber gasket, the CT4524-50 is ideal for laboratory instrumentation, RF testing, communications systems, and various measurement applications.
Backed by a one-year warranty and compliant with RoHS 2 and REACH standards, the CT4524-50 is your effortless choice for SMA termination.
Features:
- DC to 20 GHz frequency range
- Low VSWR for accurate measurements.
- RoHS 2 and REACH compliant
- One-year warranty
Specifications
- Type
- SMA, Male
- Connector Grade
- General Purpose
- Average Power
- 1 W
- Frequency Range
- DC to 20 GHz
- Impedance
- 50 Ω
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.69.4010
- Country of Origin
- Taiwan
- Lead Time
- 65 days
- See More Specifications
- Product Drawing
