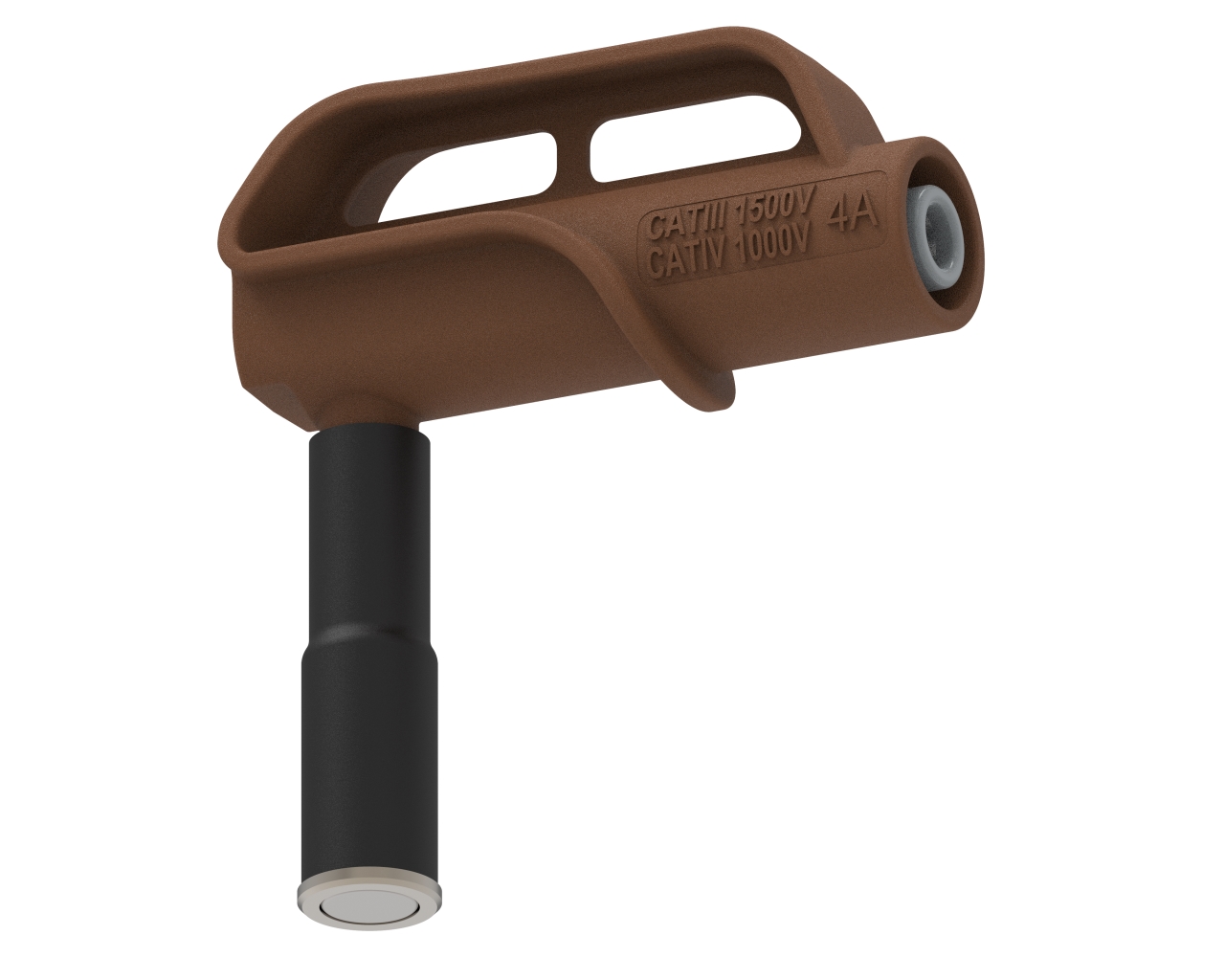

CT4520-1
CT4520 Series
Discontinued1500V 10mm Magnetic Connector, 4mm Right-Angle Sheathed Jack
1500V 10mm Mag Connector, 4mm R-Angle J, Brown
Where to Buy
Overview
Cal Test’s new CT4520 adaptor features a magnetic connector to a 4 mm jack. Primarily designed for application on circuit breakers, terminal blocks, and photovoltaic panels, this adapter incorporates a magnetic tip that provides a quick hands-free connection to ferrous conductors. Made with reinforced insulation, its category rating ensures a safe connection in environments where circuit breakers and photovoltaic panels are commonly located. The CT4520 is a great choice when an easy, reliable, and safe connection is desired.
Features:
• IEC 61010-031 Safety rated
• Magnetic connector to 4 mm sheathed jack
• Reinforced insulation
• Higher category working voltage
• 10 mm Diameter magnetic connector
• CE Mark
• RoHS 2 Compliant
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4520-0 | 1500V 10mm Mag Connector, 4mm R-Angle J, Black | $33.00 | Active Catalog | 1 Year | Magnetic | 1500 VDC CAT III / 1000 V CAT IV | Black | Brass, Nickel Plated | Polypropylene | 4 A | - | EA |
 |
CT4520-1 | 1500V 10mm Mag Connector, 4mm R-Angle J, Brown | Discontinued | 1 Year | Magnetic | 1500 VDC CAT III / 1000 V CAT IV | Brown | Brass, Nickel Plated | Polypropylene | 4 A | - | EA | |
 |
CT4520-2 | 1500V 10mm Mag Connector, 4mm R-Angle J, Red | $33.00 | Active Catalog | 1 Year | Magnetic | 1500 VDC CAT III / 1000 V CAT IV | Red | Brass, Nickel Plated | Polypropylene | 4 A | - | EA |
 |
CT4520-5 | 1500V 10mm Mag Connector, 4mm R-Angle J, Green | $33.00 | Active Catalog | 1 Year | Magnetic | 1500 VDC CAT III / 1000 V CAT IV | Green | Brass, Nickel Plated | Polypropylene | 4 A | - | EA |
 |
CT4520-6 | 1500V 10mm Mag Connector, 4mm R-Angle J, Blue | $33.00 | Active Catalog | 1 Year | Magnetic | 1500 VDC CAT III / 1000 V CAT IV | Blue | Brass, Nickel Plated | Polypropylene | 4 A | - | EA |
 |
CT4520-8 | 1500V 10mm Mag Connector, 4mm R-Angle J, Grey | $33.00 | Special Order | 1 Year | Magnetic | 1500 VDC CAT III / 1000 V CAT IV | Grey | Brass, Nickel Plated | Polypropylene | 4 A | - | EA |
Specifications
- Type
- Magnetic
- Rated Voltage
- 1500 VDC CAT III / 1000 V CAT IV
- Color
- Brown
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polypropylene
- Max Current
- 4 A
- Max Voltage
- -
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
