CT4513
CT4513 Series

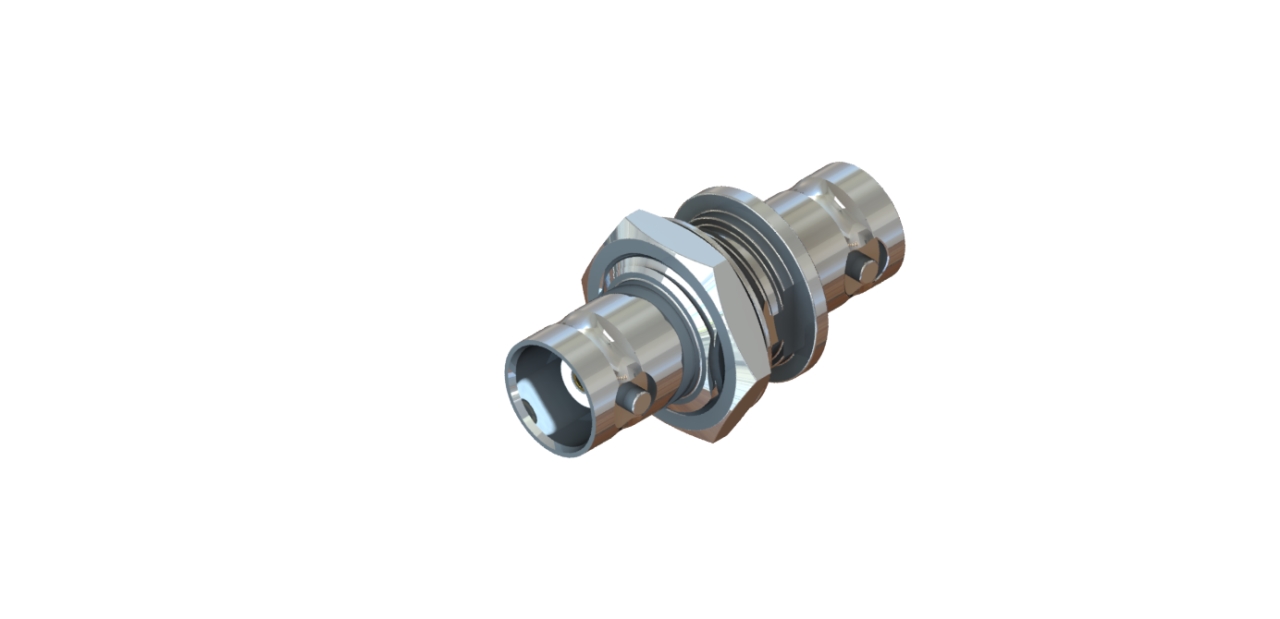

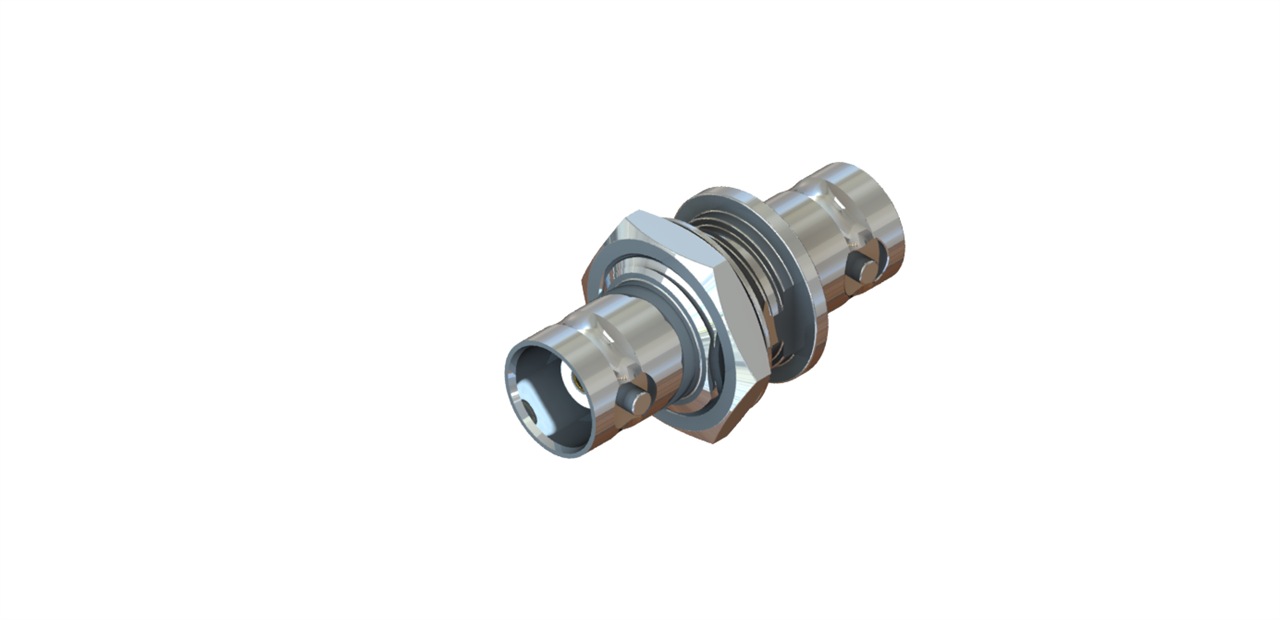

Active CatalogAdapter, BNC Female to BNC Female, Bulkhead Mount
Adapter, BNC Female to BNC Female, Bulkhead Mount
$4.801 Year Warranty
Overview
General Purpose 50 Ω BNC Female to BNC Female Bulkhead Mount Coaxial Adapter.
- General Purpose
- Body: Brass, Nickel Plated
- Contact: Brass, Gold Plated
Specifications
- Connector Grade
- General Purpose
- Frequency Range
- DC - 2 GHz
- Impedance
- 50 Ohms
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.69.4010
- Country of Origin
- Taiwan
- Lead Time
- 30 days
- See More Specifications
- Product Drawing
Documents
- Product DrawingProduct Drawing
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
