Product resources
CT4495
CT4495 Series

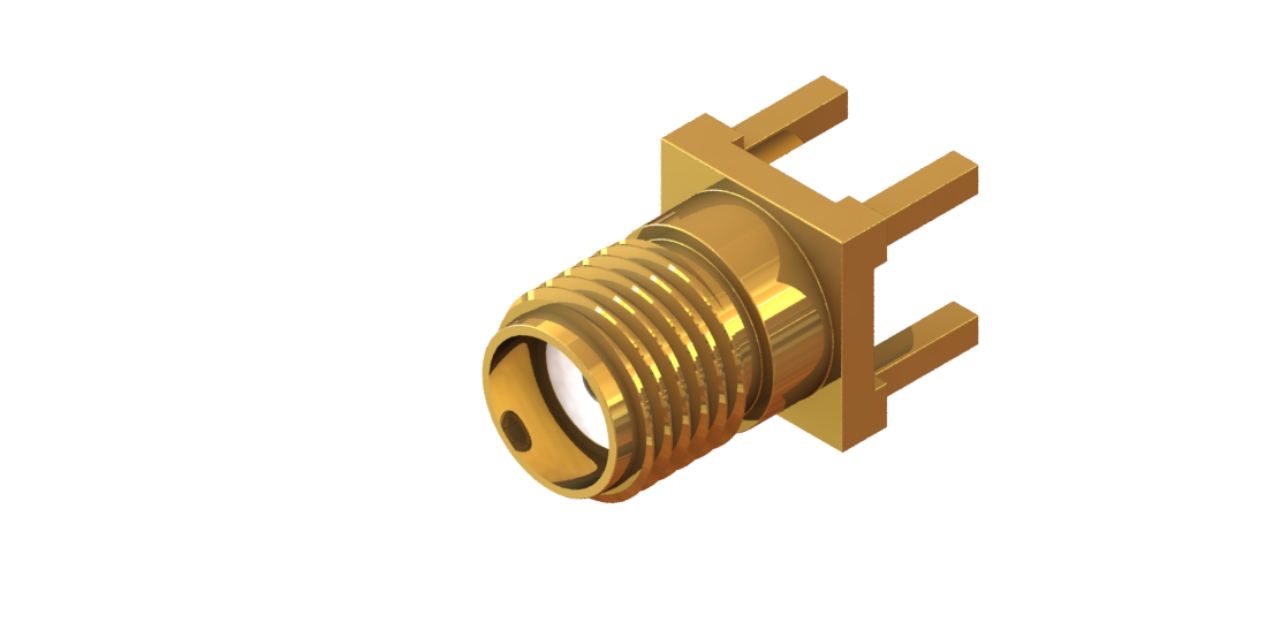

Active CatalogConnector, SMA Female, PCB Mount, Through-Hole
Connector, SMA Female, PCB Mount, Through-Hole
$5.251 Year Warranty
Overview
General Purpose SMA Female 50 Ω PCB Mount Coaxial Adapter, Through-Hole.
- General Purpose
- Body: Brass, Gold Plated
- Contact: Beryllium Copper, Gold Plated
Specifications
- Connector Grade
- General Purpose
- Frequency Range
- DC - 18 GHz
- Impedance
- 50 Ohms
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.69.4010
- Country of Origin
- Taiwan
- Lead Time
- 30 days
- See More Specifications
- Product Drawing
Documents
- Product DrawingProduct Drawing
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
