CT4466-2
CT4466 Series
Active CatalogCAT III Hook Clip
Hook Clip with 4mm Sheathed Banana Jack, Red
Where to Buy
Overview

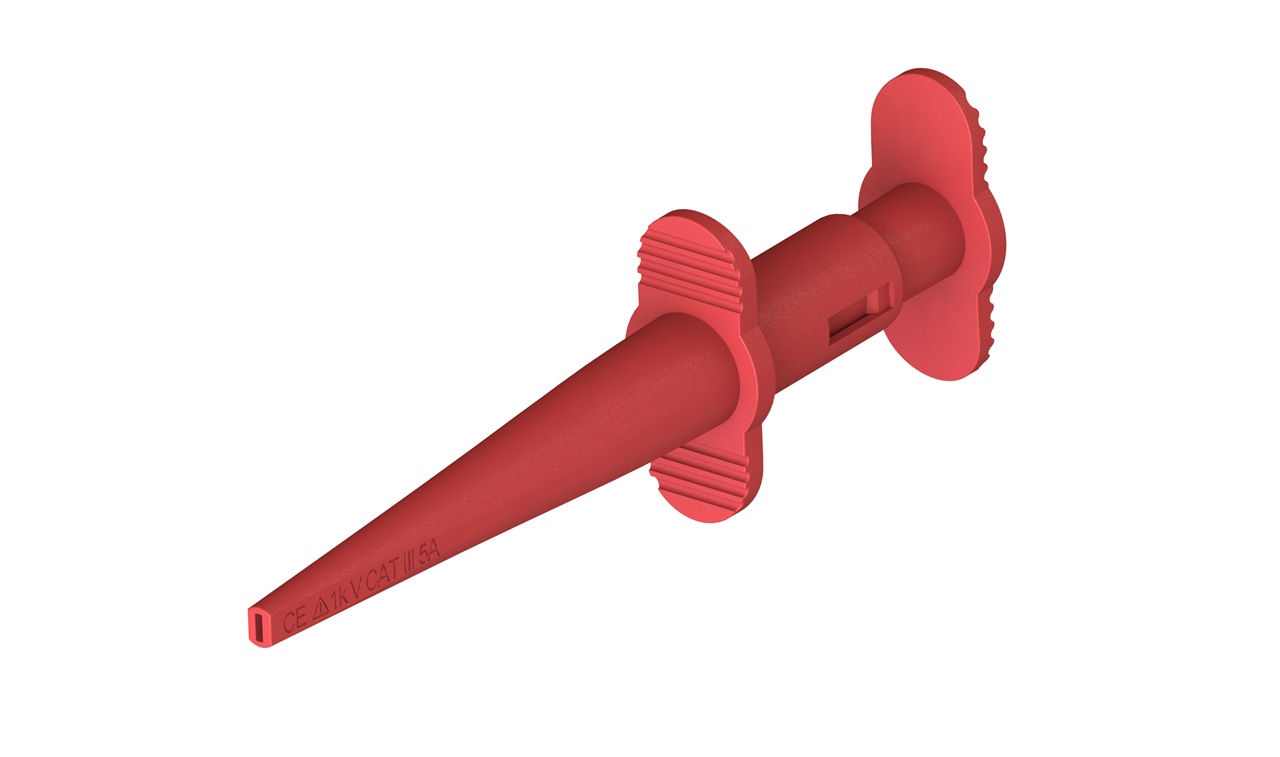

Available either individually (CT4466-#) or as a black and red pair (CT4467), these rugged hook clips are rated to 1,000 V CAT III, 5 A, when used in conjunction with similarly rated 4 mm sheathed banana plug leads..
The hook clip easily connects to the 4 mm sheathed banana plug leads of DMMs, differential probes, or other similar types of equipment.
The plunger style actuation facilitates quick connections while allowing limited exposed contacts, thus reducing unintentional shorts. The hook can accommodate conductors up to 2.5 mm in diameter.
The clip, at around 5 inches (12.6 cm) long, gives you the reach you want plus sizing needed to safely meet 1000 V CAT III, but is still compact enough for those small, hard to reach circuits.
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Color | UOM |
|---|---|---|---|---|---|---|---|---|
 |
CT4466-0 | Hook Clip with 4mm Sheathed Banana Jack, Black | $20.00 | Active Catalog | 1 Year | Hook | Black | EA |
 |
CT4466-2 | Hook Clip with 4mm Sheathed Banana Jack, Red | $20.00 | Active Catalog | 1 Year | Hook | Red | EA |
 |
CT4467 | Hook Clip with 4mm Sheathed Banana Jack, Pair B/R | $40.00 | Active Catalog | 1 Year | Hook | B/R Pair | EA |
Specifications
- Type
- Hook
- Color
- Red
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- Taiwan
- Lead Time
- 49 days
- See More Specifications
- Product Drawing
Documents
- Product DrawingProduct Drawing
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
