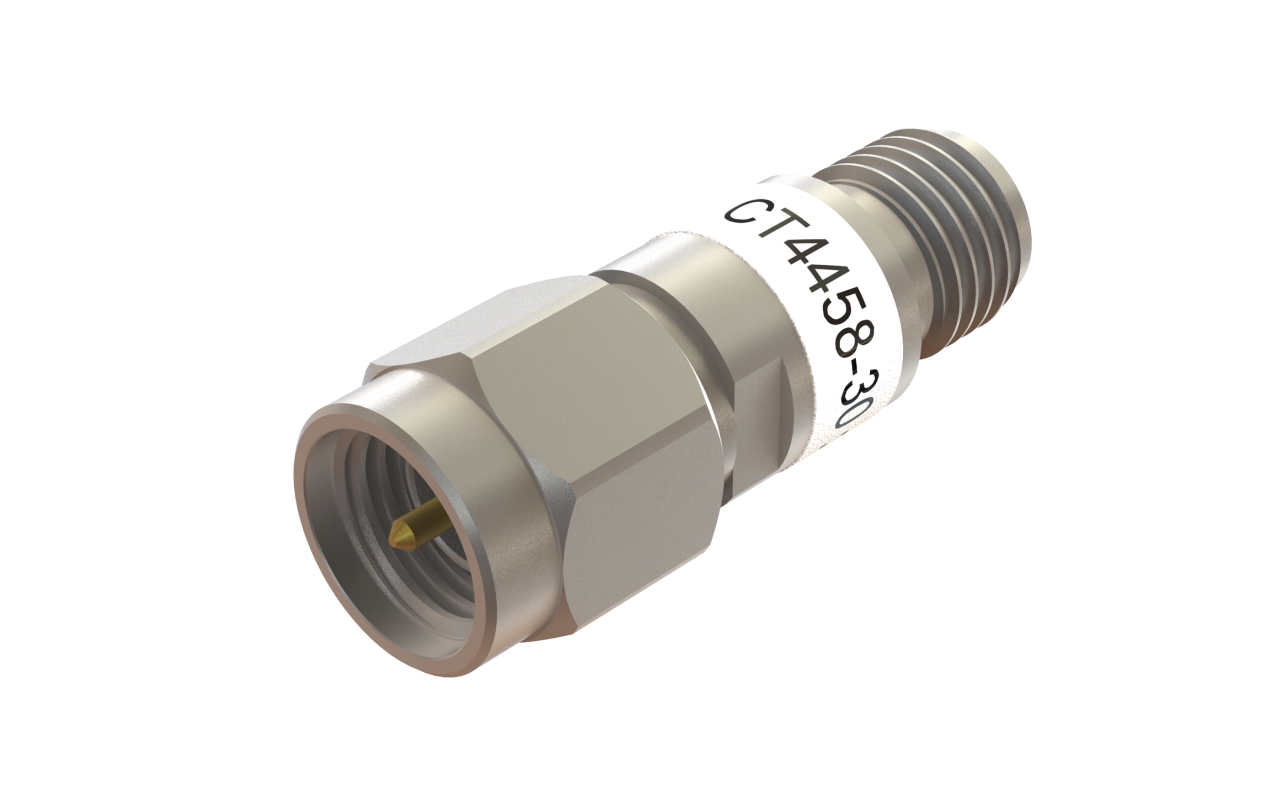

CT4458-30
CT4458 Series
Active Catalog18 GHz SMA Attenuator
SMA Attenuator, m-f, 50ohm, 30dB,18GHz, 2W
$88.001 Year Warranty
Where to Buy
Overview
The new CT4458-XX series features 50 Ω impedance, a dynamic range of 18 GHz, and input power of 2 W. They are ideal whenever there is a need to lower voltage, dissipate power, or to improve impedance matching. Use them to protect your equipment from signal levels that might damage them.
Their stainless steel bodies provide them long life protection, while gold plated BeCu contacts means reliable repeatability.
The CT4458-XX provide the important characteristics of:
- Accuracy
- Low VSWR
- Flat frequency response
- Repeatability
- Cost effectiveness
There are five convenient attenuation values offered:
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Attenuation | Average Power | Frequency Range | Impedance | Temperature | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4458-03 | SMA Attenuator, m-f, 50ohm, 3dB,18GHz, 2W | $88.00 | Active Catalog | 1 Year | SMA | 3 dB | 2 W | DC to 18 GHz | 50 Ω | -55° to +125°C | EA |
 |
CT4458-06 | SMA Attenuator, m-f, 50ohm, 6dB,18GHz, 2W | $88.00 | Active Catalog | 1 Year | SMA | 6 dB | 2 W | DC to 18 GHz | 50 Ω | -55° to +125°C | EA |
 |
CT4458-10 | SMA Attenuator, m-f, 50ohm, 10dB,18GHz, 2W | $88.00 | Active Catalog | 1 Year | SMA | 10 dB | 2 W | DC to 18 GHz | 50 Ω | -55° to +125°C | EA |
 |
CT4458-20 | SMA Attenuator, m-f, 50ohm, 20dB,18GHz, 2W | $88.00 | Active Catalog | 1 Year | SMA | 20 dB | 2 W | DC to 18 GHz | 50 Ω | -55° to +125°C | EA |
 |
CT4458-30 | SMA Attenuator, m-f, 50ohm, 30dB,18GHz, 2W | $88.00 | Active Catalog | 1 Year | SMA | 30 dB | 2 W | DC to 18 GHz | 50 Ω | -55° to +125°C | EA |
Specifications
- Type
- SMA
- Attenuation
- 30 dB
- Average Power
- 2 W
- Frequency Range
- DC to 18 GHz
- Impedance
- 50 Ω
- Temperature
- -55° to +125°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.69.4010
- Country of Origin
- USA
- Lead Time
- 49 days
- See More Specifications
- Product Drawing
