CT4425-2
CT4425 Series
Active Catalog4 mm Terminal Block Adapters

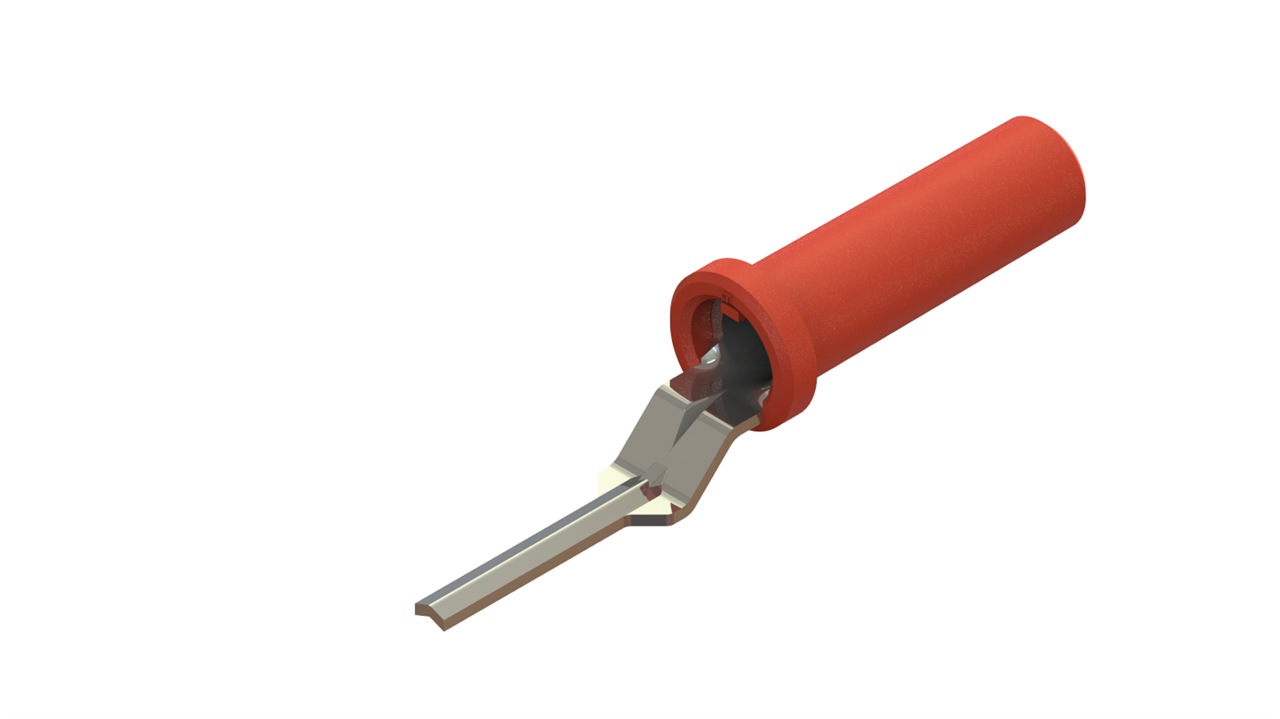

4mm Terminal Block Adapter, Red
Where to Buy
Overview
Introducing the CT4425 Terminal Block Adapter - the ultimate solution for measuring on terminal blocks with ease and convenience. This adapter allows you to effortlessly connect a 4 mm standard and sheathed banana plug to a screw clamp terminal, providing you with a versatile and reliable option for your testing needs.
The CT4425 is built to last with a high-quality polypropylene insulator and durable high conductivity nickel plated contact, ensuring that your measurements are consistent. It also boasts a current rating of 30 A, making it perfect for even the most demanding applications. You can be confident that your measurements will be precise and accurate every time.
This adapter is the perfect addition to any test and measurement setup, providing flexibility and convenience when it comes to taking measurements on a terminal block. Upgrade your tool kit today with the CT4425 Terminal Block Adapter.
The CT4425 Series features:
- The CT4425 Series features
- Compatible with 4 mm standard or sheathed banana plugs
- Jack Material: Brass, Nickel plated
- Maximum current: 30 A
- Resistance: Less than or equal to 5 mΩ (≤ 5 mΩ)
- RoHS 2 compliant for environmental safety
- 1 year warranty for added peace of mind
Models
| Image | Model | Description | MSRP | Status | Warranty | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4425-0 | 4mm Terminal Block Adapter, Black | $2.00 | Active Catalog | 1 Year | 30 VAC / 60 VDC | Black | Brass, Nickel Plated | Polypropylene | 30 A | 1200 V AC/DC | EA |
 |
CT4425-2 | 4mm Terminal Block Adapter, Red | $2.00 | Active Catalog | 1 Year | 30 VAC / 60 VDC | Red | Brass, Nickel Plated | Polypropylene | 30 A | 1200 V AC/DC | EA |
Specifications
- Rated Voltage
- 30 VAC / 60 VDC
- Color
- Red
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polypropylene
- Max Current
- 30 A
- Max Voltage
- 1200 V AC/DC
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- Taiwan
- Lead Time
- 49 days
- See More Specifications
- Product Drawing
Documents
- 3D Model3D Model
- Product DrawingProduct Drawing
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
