CT4415-0
CT4415 Series

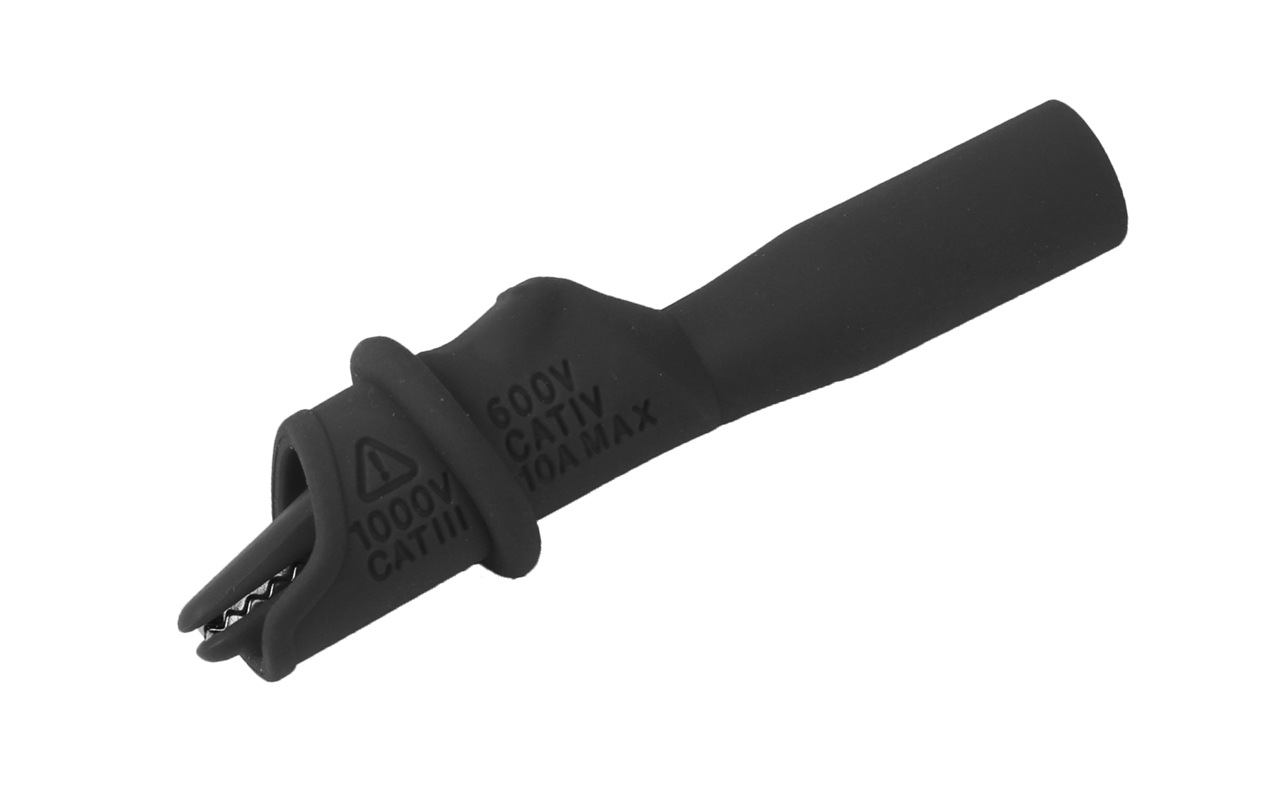

Active CatalogMedium Insulated Alligator Clip
Med Alligator Clip, 4mm Shth J, CT Mark, Black
$4.701 Year Warranty
Where to Buy
Overview
The CT4415 is fully insulated for the extra protection you need in high category environments. Rated to 1,000 V CAT III and 600 V CAT IVa, this clip is in compliance with the IEC 61010-031 safety standards. It is RoHS 2 compliant and carries the European Union CE mark.
The CT4415 is rated to 10 A and offers a 4 mm sheathed jack for standard or sheathed banana plugs. The jaw opens to 9 mm accommodating conductors up to 7 mm in diameter. Once in place, the spring loaded, three-incisor mouth will hold securely to screw heads or flat headed objects.
- IEC 61010-031 rated to 1,000 V CAT III / 600 V CAT IV
- 10 A max
- Jaw opens to 9 mm
- Three-incisor mouth to ensure grip on screw heads
- Connects to 4 mm standard or sheathed banana plugs
- CE listed
- RoHS 2 compliant
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Color | Rated Voltage | Max Current | Jaw Opening | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4415-0 | Med Alligator Clip, 4mm Shth J, CT Mark, Black | $4.70 | Active Catalog | 1 Year | Fully Insulated | Black | 1,000 V CAT III / 600 V CAT IV | 10 A | 9 mm | EA |
 |
CT4415-2 | Med Alligator Clip, 4mm Shth J, CT Mark, Red | $4.70 | Active Catalog | 1 Year | Fully Insulated | Red | 1,000 V CAT III / 600 V CAT IV | 10 A | 9 mm | EA |
Specifications
- Type
- Fully Insulated
- Color
- Black
- Rated Voltage
- 1,000 V CAT III / 600 V CAT IV
- Max Current
- 10 A
- Jaw Opening
- 9 mm
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 70 days
- See More Specifications
- Datasheet
