CT4409-2
CT4409 Series
Active CatalogLarge Insulated Alligator Clip
Lg Alligator Clip, 4mm Shth J, CalTest, Red
Where to Buy
Overview

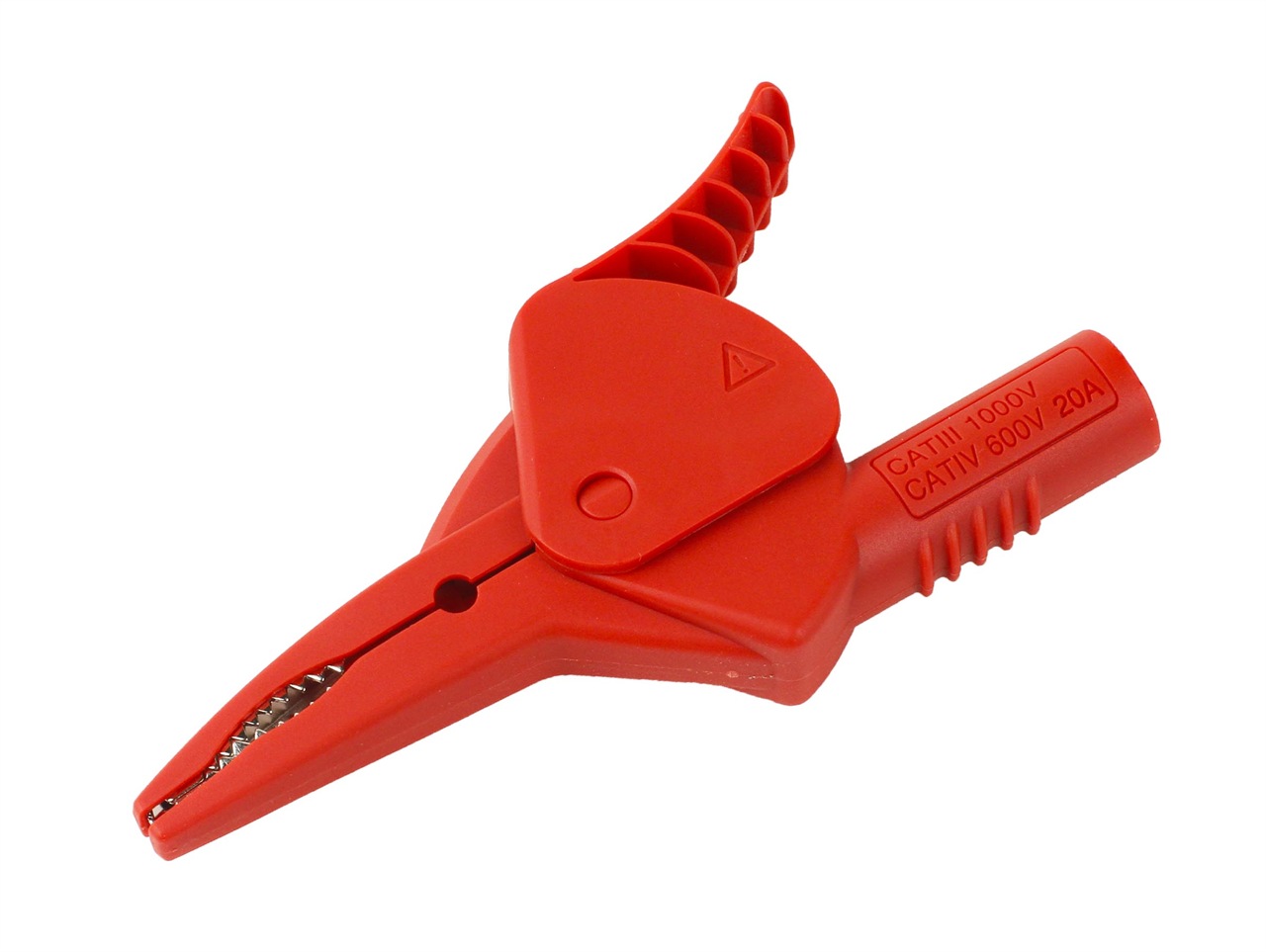

The CT4409 is fully insulated for the extra protection you need in high category environments. Rated to 1,000 V CAT III and 600 V CAT IVa, this clip is in compliance with the IEC 61010-031 safety standards. It is RoHS 2 compliant and carries the European Union CE mark.
The CT4409 is rated to 20 A and offers a 4 mm sheathed jack for standard or sheathed banana plugs. The thumb actuator is ergonomically curved and boasts lined ridges for a sure grip. The slim beak jaw allows the clip to reach into those narrow spaces and with a 34 mm jaw opening, you’ll easily grab even the largest terminal. Once in place, the spring loaded, three-incisor mouth will hold securely to screw heads or flat headed objects.
- IEC 61010-031 rated to 1,000 V CAT III / 600 V CAT IV
- 20 A max
- Ergonomic Design
- Slim beak jaw allows reach into narrow spaces
- Jaw opens to 34.5 mm
- Three-incisor mouth to ensure grip on screw heads
- Connects to 4 mm standard or sheathed banana plugs
- CE listed
- RoHS 2 compliant
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Color | Rated Voltage | Max Current | Jaw Opening | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4409-0 | Lg Alligator Clip, 4mm Shth J, CalTest, Black | $8.15 | Active Catalog | 1 Year | Fully Insulated | Black | 1,000 V CAT III / 600 V CAT IV | 20 A | 34.5 mm | EA |
 |
CT4409-2 | Lg Alligator Clip, 4mm Shth J, CalTest, Red | $8.15 | Active Catalog | 1 Year | Fully Insulated | Red | 1,000 V CAT III / 600 V CAT IV | 20 A | 34.5 mm | EA |
Specifications
- Type
- Fully Insulated
- Color
- Red
- Rated Voltage
- 1,000 V CAT III / 600 V CAT IV
- Max Current
- 20 A
- Jaw Opening
- 34.5 mm
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 70 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
