CT4406-0
CT4406 Series
Active CatalogBanana Jack Panel Mount

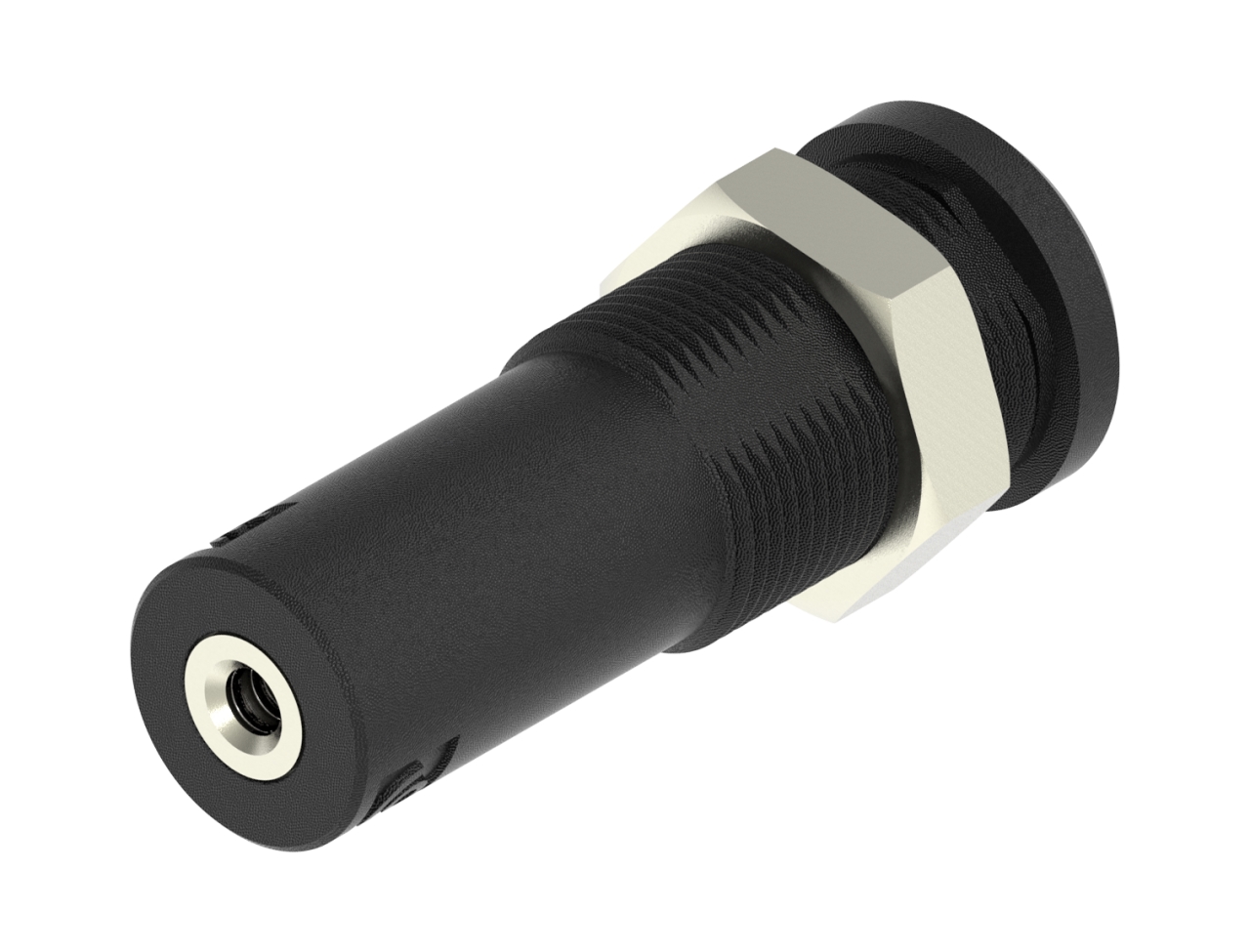

5 kV, 4 mm Sheathed Banana Jack, M3 Threaded Hole, Panel, Black
$5.551 Year Warranty
Where to Buy
Overview
The CT4406 operates up to 5 kV when used in non-category environments with transient overvoltages up to 2 kV. The jack also extends the rating of our 4mm Sheathed Banana Jacks to 1,000 V CAT IV.
For use only with Cal Test’s Long-Reach High Voltage Test Leads, CT3018 or CT3020. The jack offers a M3 threaded hole for connections. The jack fits into both plastic and metal panels fixed with a 14.5 mm hex panel nut.
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4406-0 | 5kV, 4mm Shth Jack,M3 Threaded Hole, Panel, Black | $5.55 | Active Catalog | 1 Year | Panel Mount | 1500 VDC CAT III / 1000 V CAT IV | Black | Brass, Nickel Plated | Polyamide | 10 A | 5 kV | EA |
 |
CT4406-2 | 5kV, 4mm Shth Jack, M3 Threaded Hole, Panel, Red | $5.55 | Active Catalog | 1 Year | Panel Mount | 1500 VDC CAT III / 1000 V CAT IV | Red | Brass, Nickel Plated | Polyamide | 10 A | 5 kV | EA |
Specifications
- Type
- Panel Mount
- Rated Voltage
- 1500 VDC CAT III / 1000 V CAT IV
- Color
- Black
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 10 A
- Max Voltage
- 5 kV
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
