CT4401-2
CT4401 Series
Active Catalog8kV Sprung Hook Clip
8kV Hook Clip with 4mm Sheathed Banana Jack, Red
Where to Buy
Overview

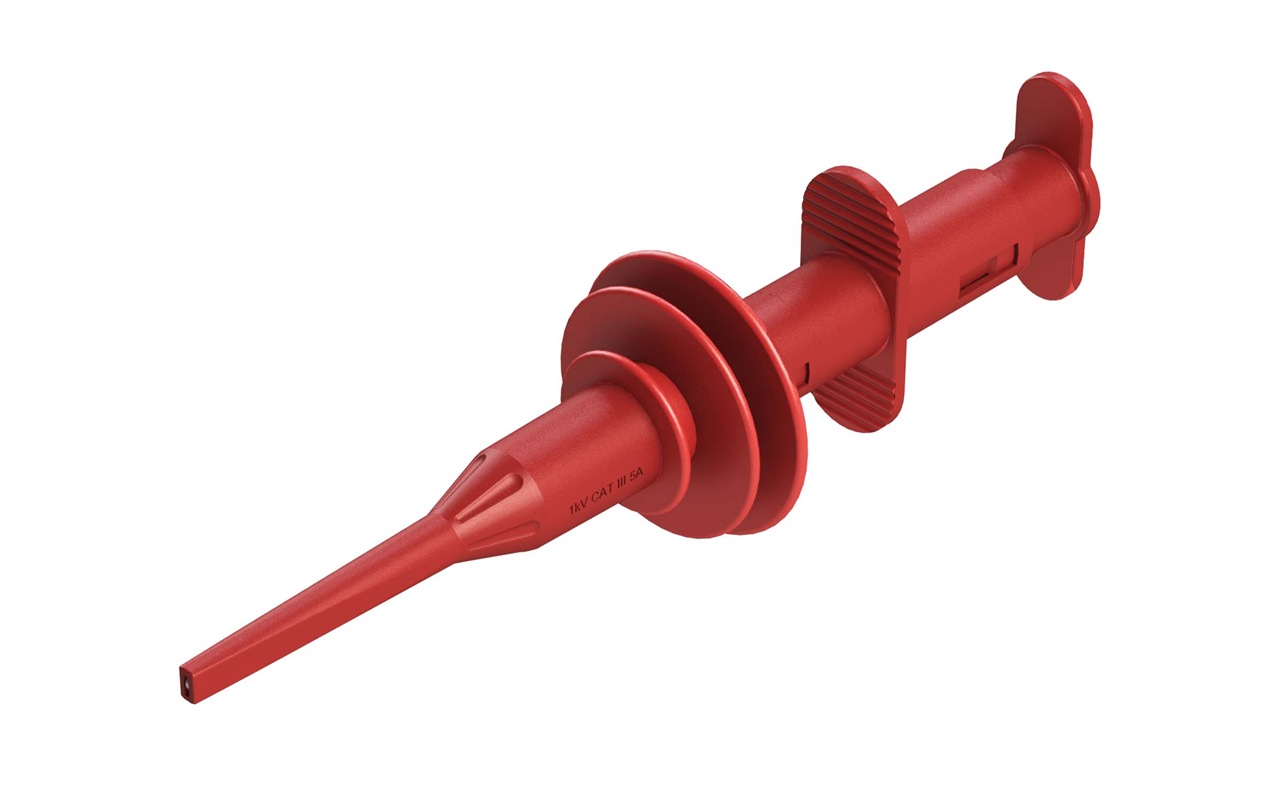

The Cal Test Electronics’ CT4401 is a High Voltage Sprung Hook Clip. Its robust size provides that extra level of protection needed in high voltage applications. With its extra clearance and creep distances, it can operate up to 8 kV when used in non-category environments.a In addition, these clips meet the rigorous standards of IEC 61010-031, rated at 1,000 V CAT III, 5 A.b
The CT4401 connects to 4 mm sheathed banana plug leads for use with DMMs, differential probes, or other needed test equipment. Its plunger style actuation facilitates quick connections while allowing for minimal exposed contacts, thus reducing unintentional short circuits.
Ribbed handles provide for a sure grip. The hook fits conductors up to 2.5 mm in diameter.
- Specified up to 8 kV in non-CAT rated environments
- IEC 61010-031 rated to 1,000 V CAT III, 5 A
- Rugged and durable fiber filled Nylon
- Ribbed handles provide for a sure grip
- Connects to 4 mm sheathed banana plugs
- CE listed
- RoHS 2 compliant
a. Never hold or touch equipment while connected to live voltages.
b. Must be used in conjunction with other similarly rated products.
Available also as a pair of black and red, CT4402.
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Color | Rated Voltage | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4401-0 | 8kV Hook Clip with 4mm Sheathed Banana Jack, Black | $21.00 | Active Catalog | 1 Year | Hook | Black | 1,000 V CAT III | 5 A | EA |
 |
CT4401-2 | 8kV Hook Clip with 4mm Sheathed Banana Jack, Red | $21.00 | Active Catalog | 1 Year | Hook | Red | 1,000 V CAT III | 5 A | EA |
 |
CT4402 | 8kV Hook Clip with 4mm Sheathed Banana Jack Pair - B/R | $42.00 | Active Catalog | 1 Year | Hook | B/R Pair | 1,000 V CAT III | 5 A | EA |
Specifications
- Type
- Hook
- Color
- Red
- Rated Voltage
- 1,000 V CAT III
- Max Current
- 5 A
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 49 days
- See More Specifications
- Datasheet
