Overview

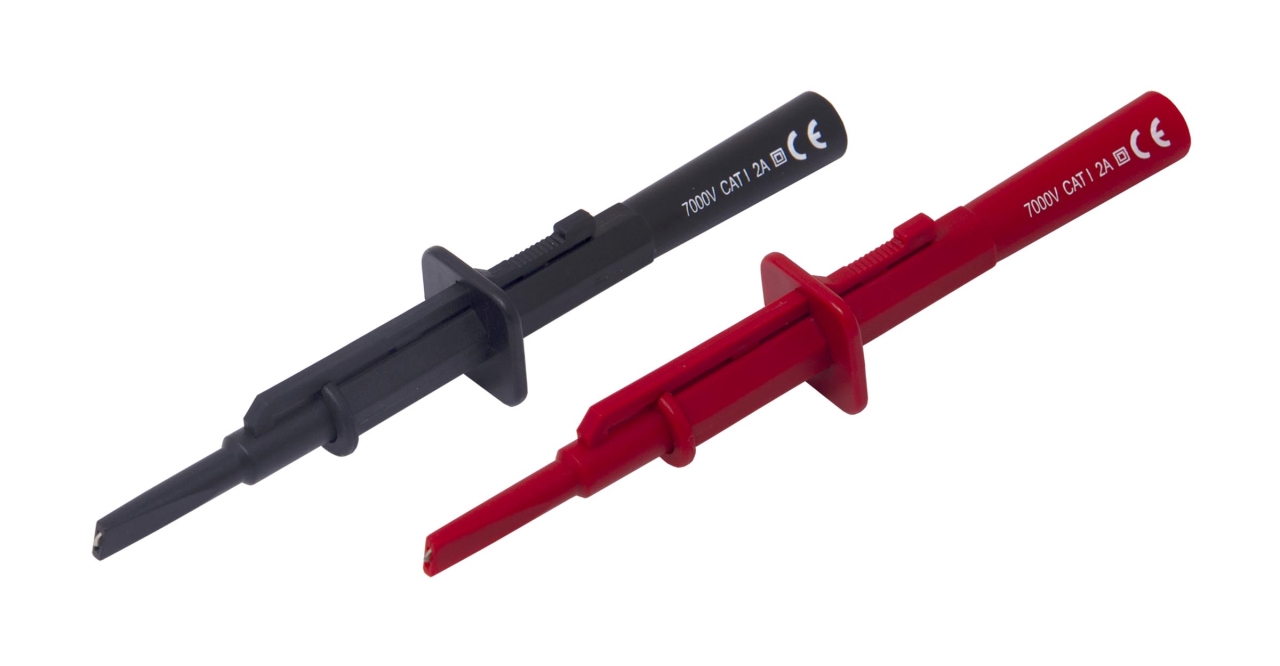

Cal Test's High Voltage Insulated Spring Hook Probe comes with a 4 mm safety banana jack for easy connections. The retractable sheath allows for probing and hooking onto electrical components. The spring loaded clip is IEC 6101-031 rated to 7,000 V in a CAT I environment. Available as a convenient black and red pair (model CT4384) or individually (special order) in 2 colors (model CT4385-#). Applications include electrical, automotive, industrial and high power electronics.
Specifications
- Type
- Differential
- Rated Voltage
- 7,000 CAT I
- Max Current
- 2 A
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Datasheet
