CT4299-2
CT4299 Series
DiscontinuedFused Probe, 500mA with Locking Tip Cover

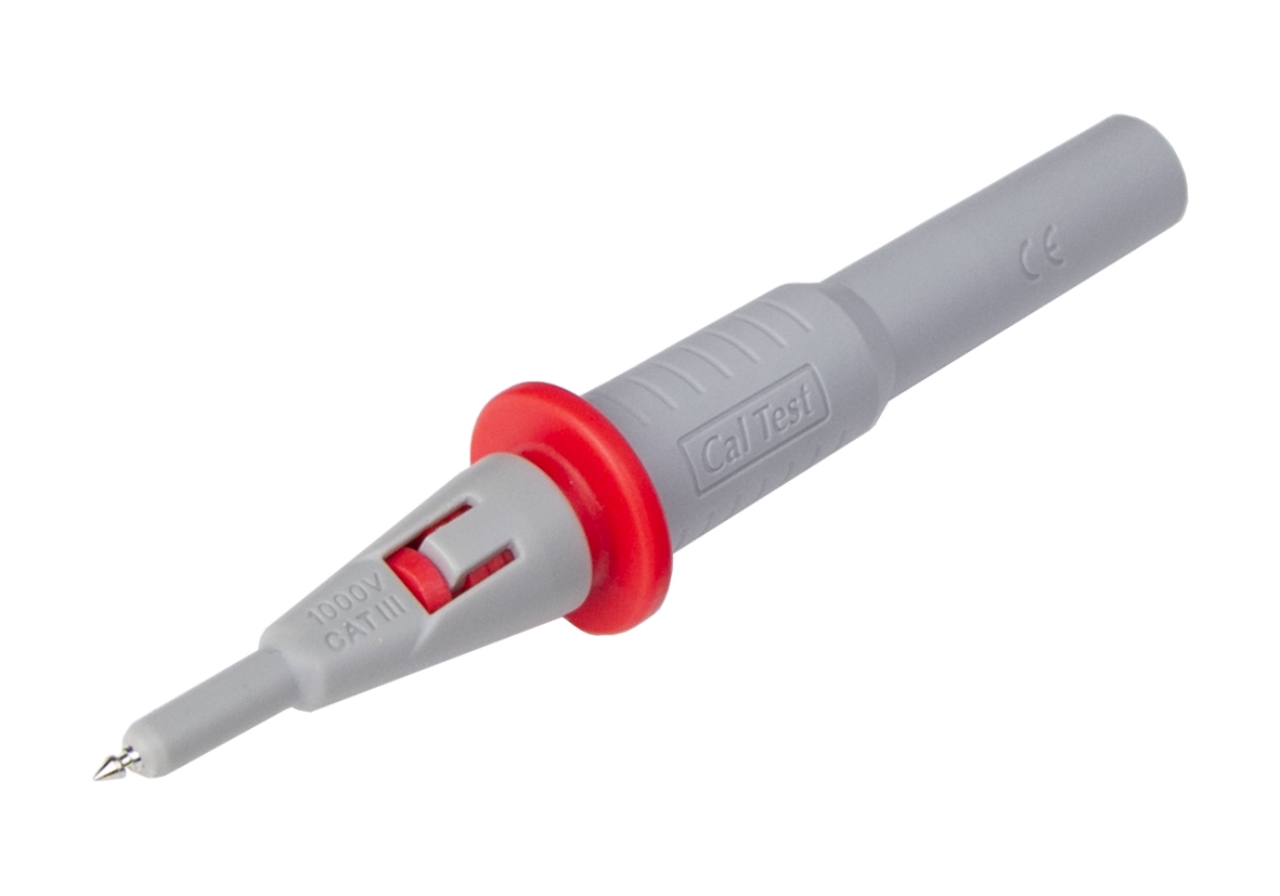

Fused Probe Body, 500 mA with Locking Tip Cover, Red
1 Year Warranty
Where to Buy
Checking distributor stock…
Select Variant
Color
Overview
The CT4299 Fused Probe easily connects to 4 mm sheathed banana plug leads, which are in turn connected to a DMM or other equipment. The small, compact body features an internal, fast acting, ceramic fuse, which can cut power in microseconds during a transient overvoltage, thereby protecting both equipment and more importantly personnel, working in high energy environments. The closer the fuse is to the test point the higher the level of protection.
Available in a black and red pair: CT4300
Features:
- Enhanced user safety for high-energy applications. Fast blow fuse will sever the connection in events such as meter failures, transient over-voltages, or arc-flash.
- Small, compact body.
- Rated to 1,000 V CATIII / 600 V CAT IV per IEC/EN 61010-031.
- Fast acting, high quality 500 mA ceramic fuse (maximum fuse current rating).
- Tool-removable locking tip cover.
- Designed to work with 3900 Series DMM tip accessories.
- Easy fuse replacement (Model CT4049-0.5A)
- CE listed – LVD and RoHS 2 compliant.
Kit Contents
- (1) Probe Tip Cap,Locking Cap, 3900B Series UL, Grey - CT3994B-8
- (1) Fused Probe, 3900 Series - 500mA Fuse, No Cap, Red - CT4399-2
Models
| Image | Model | Description | MSRP | Status | Warranty | Rated Voltage | Max Current | Color | UOM |
|---|---|---|---|---|---|---|---|---|---|
 |
CT4299-0 | Fused Probe Body, 500mA w/Locking Tip Cover, Black | Discontinued | 1 Year | 1,000 V CAT III / 600 V CAT IV w/ locking tip cover 1,000 V CAT II w/o locking tip cover | 500 mA | Black | EA | |
 |
CT4299-2 | Fused Probe Body, 500mA w/Locking Tip Cover, Red | Discontinued | 1 Year | 1,000 V CAT III / 600 V CAT IV w/ locking tip cover 1,000 V CAT II w/o locking tip cover | 500 mA | Red | EA | |
 |
CT4300 | Fused Probe Body Pair, 500mA with Locking Tip Cover, B/R | Discontinued | 1 Year | 1,000 V CAT III / 600 V CAT IV w/ locking tip cover 1,000 V CAT II w/o locking tip cover | 500 mA50 kA | Black & Red (Pair) | EA |
Specifications
- Rated Voltage
- 1,000 V CAT III / 600 V CAT IV w/ locking tip cover 1,000 V CAT II w/o locking tip cover
- Max Current
- 500 mA
- Color
- Red
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Country of Origin
- Taiwan
- Lead Time
- 84 days
Documents
- User GuideUser Guide
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
