Overview
The CT4200 Series is a high quality, easy to use family of 2.5 mm Passive Voltage Oscilloscope probes in stylish, slim-line bodies. The series features superior input impedances for enhanced measurement performance when compared to other oscilloscope probes. Replacement for Keysight N2894A.

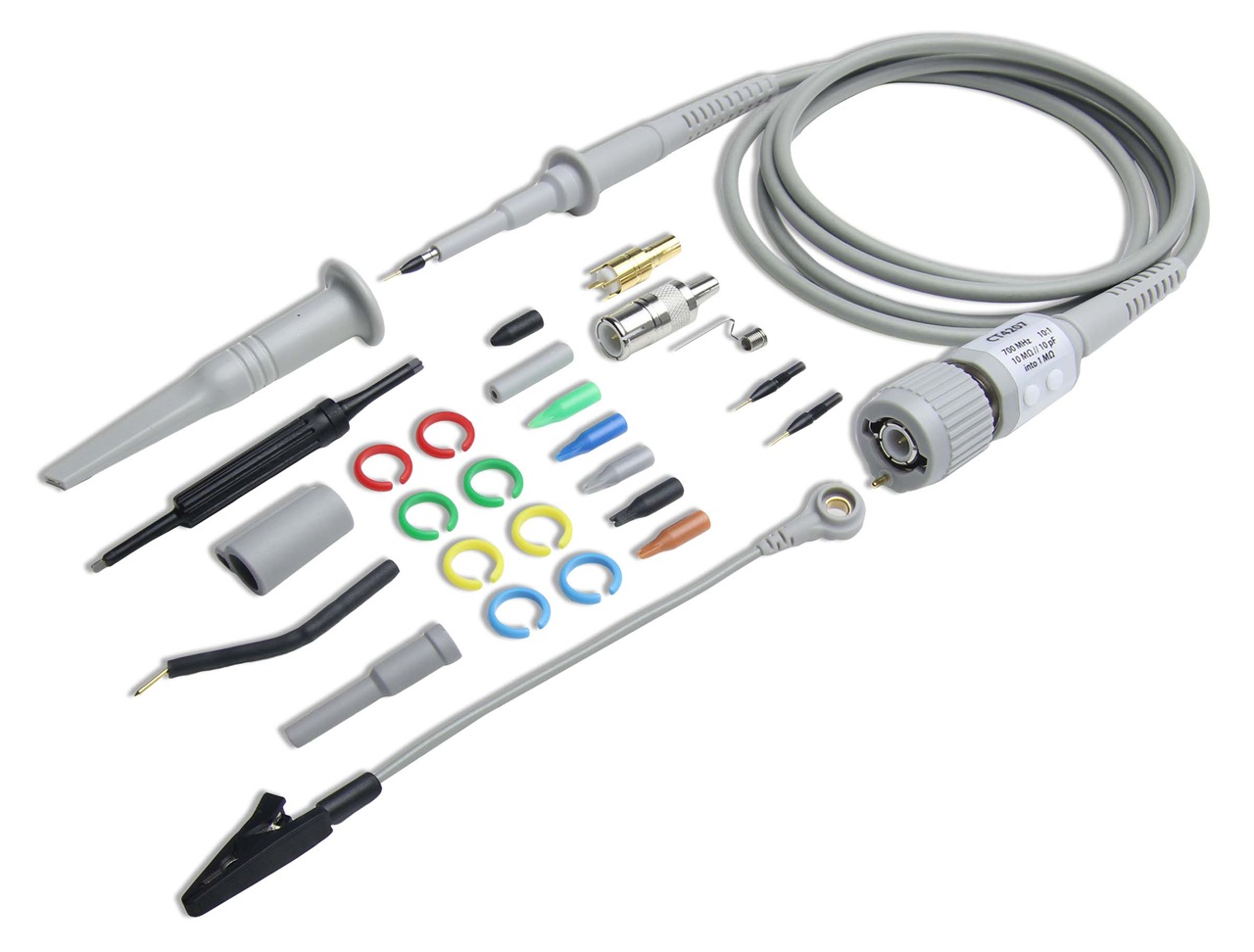

Model CT4207 is a 10x passive voltage probe with 10 MΩ input impedance.
- 700 MHz (-3 dB) bandwidth
- 10 MΩ // 10 pF - input impedance
- 10-25 pF compensation range
- 300 V CAT II
- 1.3 m cable length
Features & Benefits:
- Equipped with Readout Actuator
- Snap-Locking Sprung Hook
- Easily replaceable screw-on rigid and spring tips
- Large accessory set
- Meets IEC 61010-031
- RoHS 2 compliant
Specifications
- Type
- 4200
- Attenuation
- 10x
- Bandwidth
- 700 MHz
- Rated Voltage
- 300 V CAT II
- Cable Length
- 1.3 m
- Impedance
- 10 MΩ /10 pF
- Input Capacitance
- 10 pF
- Readout Actuator
- Yes
- Rise Time
- 0.5 ns
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 84 days
