Overview
The CT4200 Series is a high quality, easy to use family of 2.5 mm Passive Voltage Oscilloscope probes in stylish, slim-line bodies. The series features superior input impedances for enhanced measurement performance when compared to other oscilloscope probes. Replacement for Keysight N2874A.

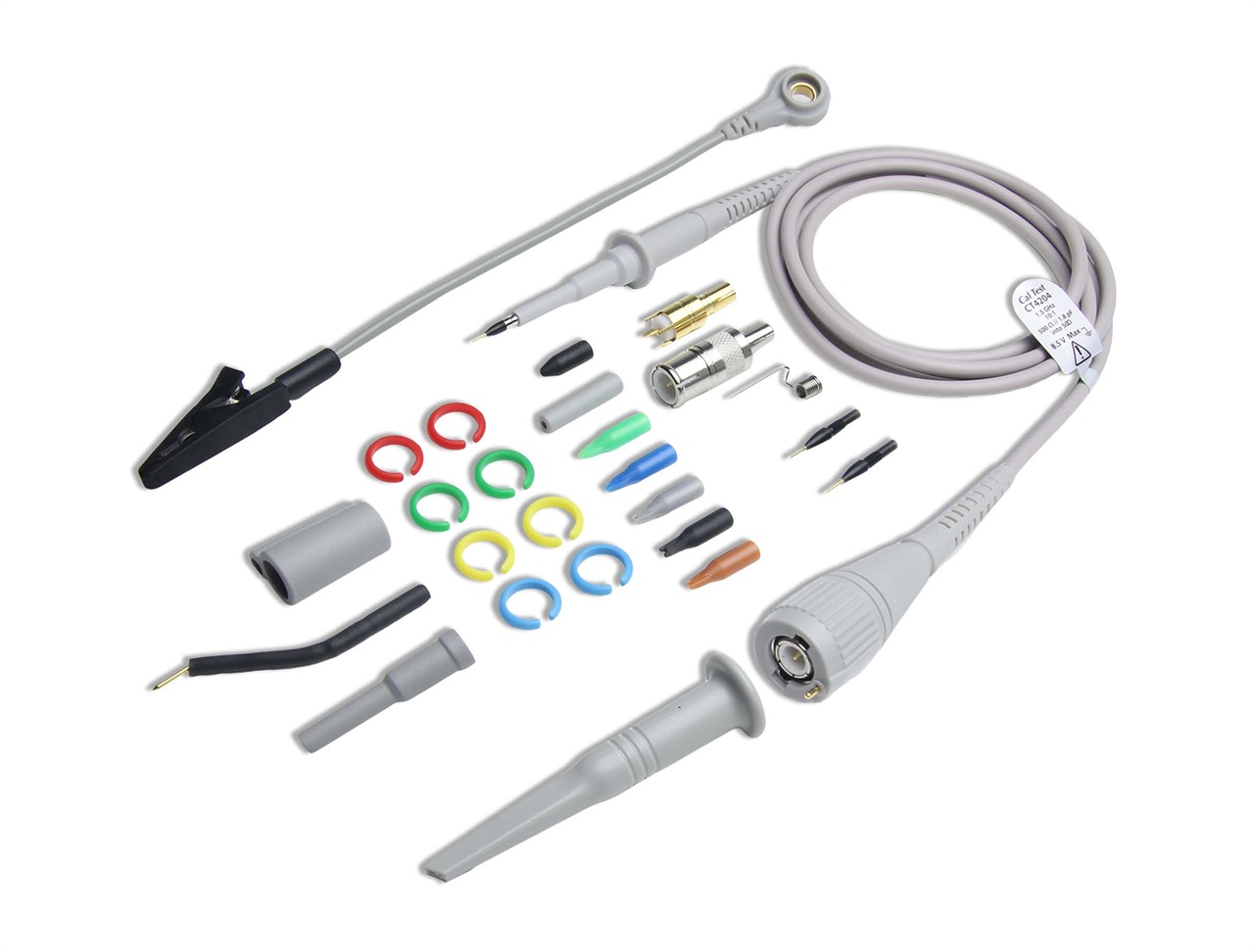

Model CT4204 is a 10x passive voltage probe with 500 Ω input impedance.
- 1.5 GHz (-3 dB) bandwidth
- 500 Ω // 1.8 pF - input impedance
- 8.5 V
- 1.3 m cable length
Features & Benefits:
- Equipped with Readout Actuator
- Snap-Locking Sprung Hook
- Easily replaceable screw-on rigid and spring tips
- Large accessory set
- Meets IEC 61010-031
- RoHS 2 compliant
Specifications
- Type
- 4200
- Attenuation
- 10x
- Bandwidth
- 1.5 GHz
- Rated Voltage
- 8.5 V
- Cable Length
- 1.3 m
- Impedance
- 500 Ω / 2 pF
- Input Capacitance
- 8 pF
- Readout Actuator
- Yes
- Rise Time
- 0.24 ns
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 70 days
