Overview
The CT4200 Series is a high quality, easy to use family of 2.5 mm Passive Voltage Oscilloscope probes in stylish, slim-line bodies. The series features superior input impedances for enhanced measurement performance when compared to other oscilloscope probes. Replacement for Keysight N2870A.
Model CT4200 is a 1x passive voltage probe with 1 MΩ input impedance.
- 55 MHz (-3 dB) bandwidth
- 1 MΩ // 39 pF - input impedance
- 55 V CAT II
- 1.3 m cable length
Features & Benefits:
- Equipped with Readout Actuator
- Snap-Locking Sprung Hook
- Easily replaceable screw-on rigid and spring tips

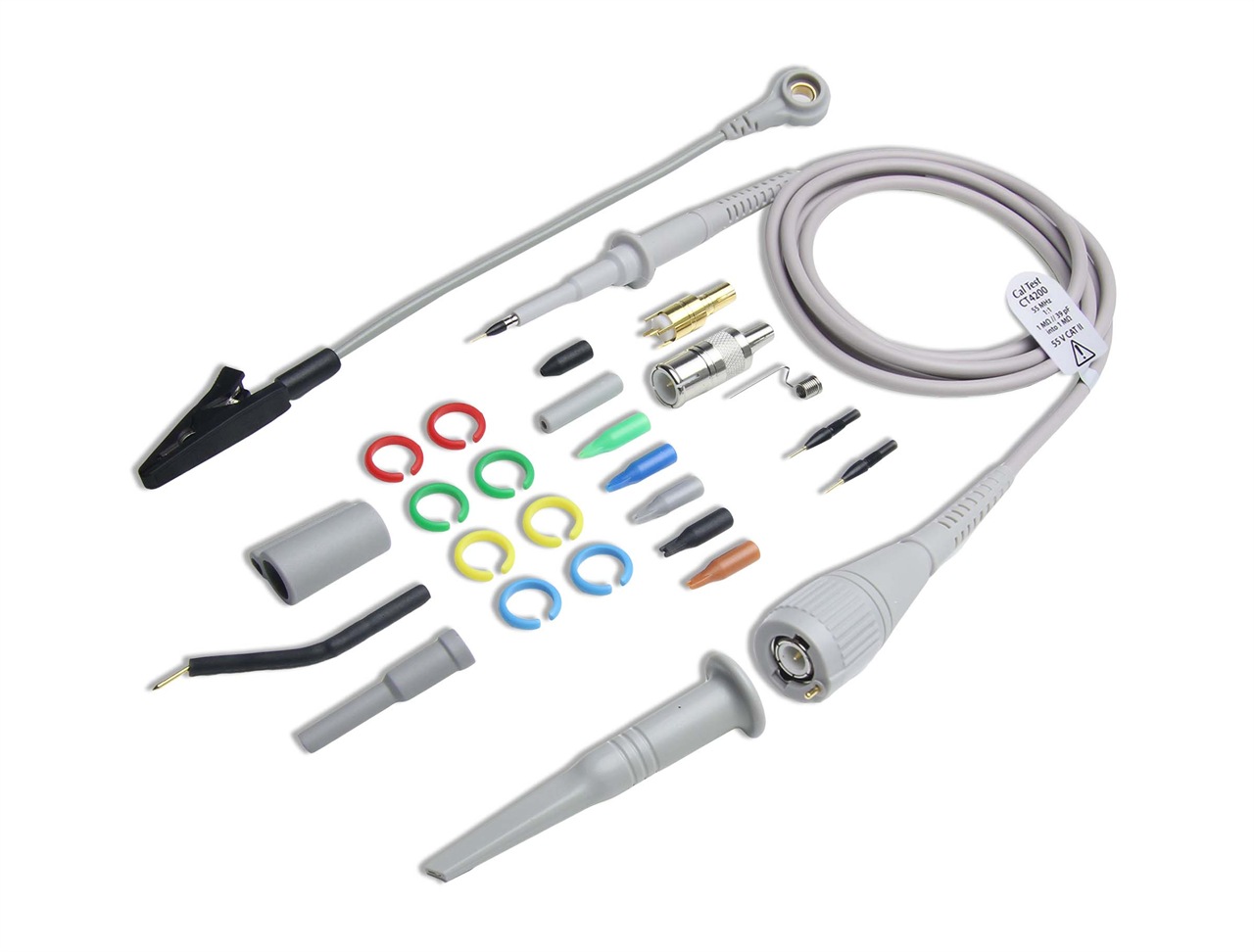

- Large accessory set
- Meets IEC 61010-031
- RoHS 2 compliant
Specifications
- Type
- 4200
- Attenuation
- 1x
- Bandwidth
- 55 MHz
- Rated Voltage
- 55 V CAT II
- Cable Length
- 1.3 m
- Impedance
- 1 MΩ /39 pF
- Input Capacitance
- 39 pF
- Readout Actuator
- Yes
- Rise Time
- 6.36 ns
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 84 days
