CT4140A-2.0A
CT4140A Series
Discontinued4mm Inline Fuse Adapter, 1kV CATIV, Grey w/IDs

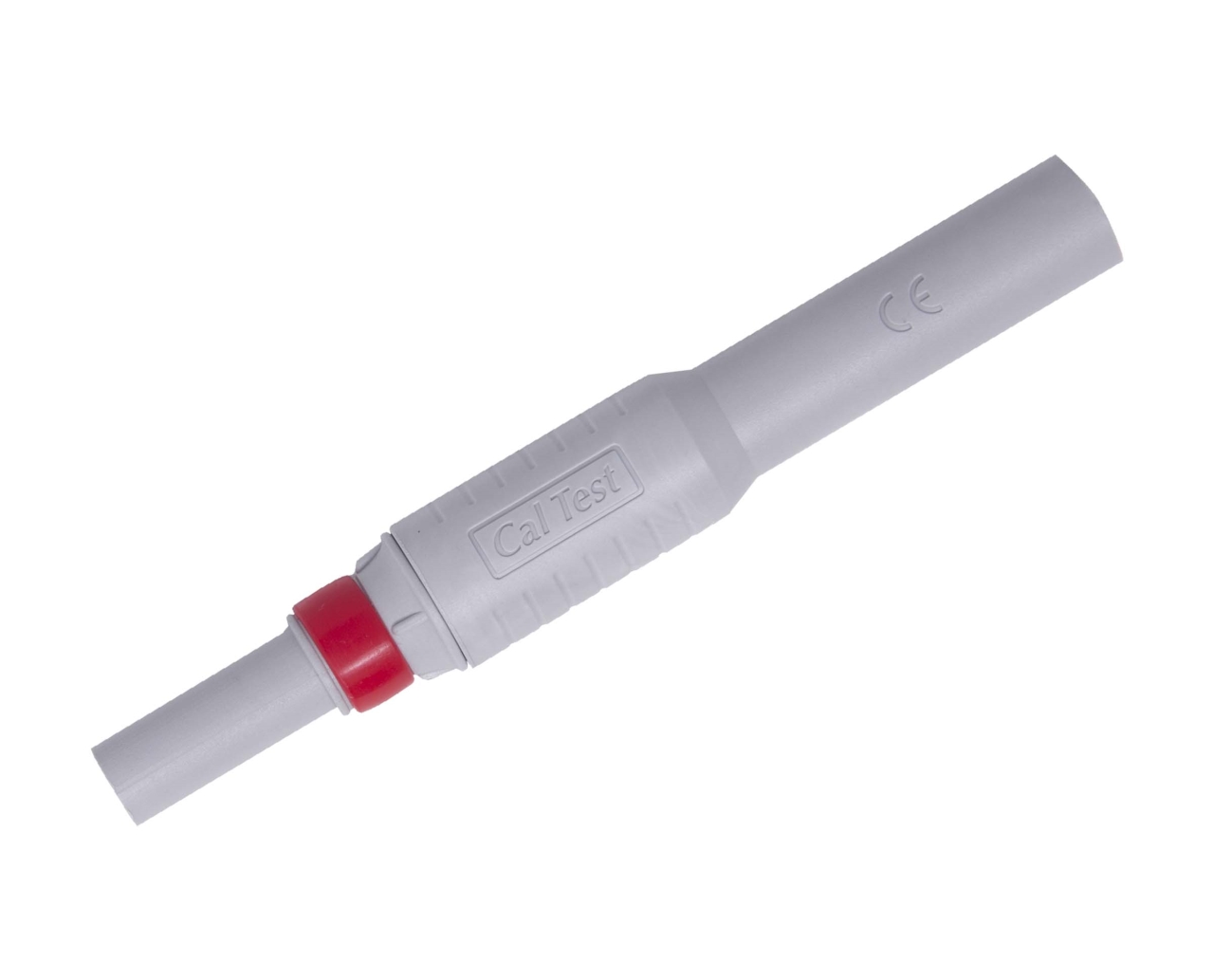

4mm Inline Fuse Adapter A, 1kV CATIV, 2.0A, Grey w/IDs
Where to Buy
Overview
This adapter adds flexibility to virtually any electrical application as it fits in-series with existing test set-ups. Easily connecting inline with sheathed 4 mm banana plugs, the CT4140A extends safety by reducing risks associated with arc flashes. In the event of a power surge, its internal fast acting fuse will cut power in fractions of a second, thereby protecting the individual and equipment.
The versatile CT4140A allows users to easily replace blown fuses. Unscrew the forward portion of the body to access and replace the 6 x 32 mm type FF fast-acting ceramic fuse*. Fuses range from 0.5 A to 2 A. You'll be back to your project in no time flat.
Each adapter comes with a set of 8 ID rings to identify multiple fuse adapters and organize the testing area. The ID rings come in black, brown, red, orange, yellow, blue, grey, white.
*Order replaceable fuses CT4049-# (-#: -0.5A, -1.0A, -1.5A,- 2.0A)
Kit Contents
- (1) Fuse, Ceramic, Very-Fast, 6x32mm, 2.0A, 1000Vac/dc - CT4049-2.0A
- (1) 4 mm Inline Fuse Adapter, Shth P-J, 1kV, No Fuse, Grey, ND - CT4130A-0.0A
- (1) Marker Ring Set, 0.25"w, 8 pieces - CT4132-X08
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|
 |
CT4140A-0.0A | 4mm Inline Fuse Adapter A, 1kV CATIV, No Fuse, Grey w/IDs | $28.00 | Special Order | 1 Year | Digital Multimeter (DMM) | 1,000 V CAT IV | 2 A | EA |
 |
CT4140A-0.5A | 4mm Inline Fuse Adapter A, 1kV CATIV, 500mA, Grey w/IDs | $31.00 | Special Order | 1 Year | Digital Multimeter (DMM) | 1,000 V CAT IV | 2 A | EA |
 |
CT4140A-1.0A | 4mm Inline Fuse Adapter A, 1kV CATIV, 1.0A, Grey w/IDs | Discontinued | 1 Year | Digital Multimeter (DMM) | 1,000 V CAT IV | 2 A | EA | |
 |
CT4140A-1.5A | 4mm Inline Fuse Adapter A, 1kV CATIV, 1.5A, Grey w/IDs | Discontinued | 1 Year | Digital Multimeter (DMM) | 1,000 V CAT IV | 2 A | EA | |
 |
CT4140A-2.0A | 4mm Inline Fuse Adapter A, 1kV CATIV, 2.0A, Grey w/IDs | Discontinued | 1 Year | Digital Multimeter (DMM) | 1,000 V CAT IV | 2 A | EA |
Specifications
- Type
- Digital Multimeter (DMM)
- Rated Voltage
- 1,000 V CAT IV
- Max Current
- 2 A
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Product Drawing
