CT4028A

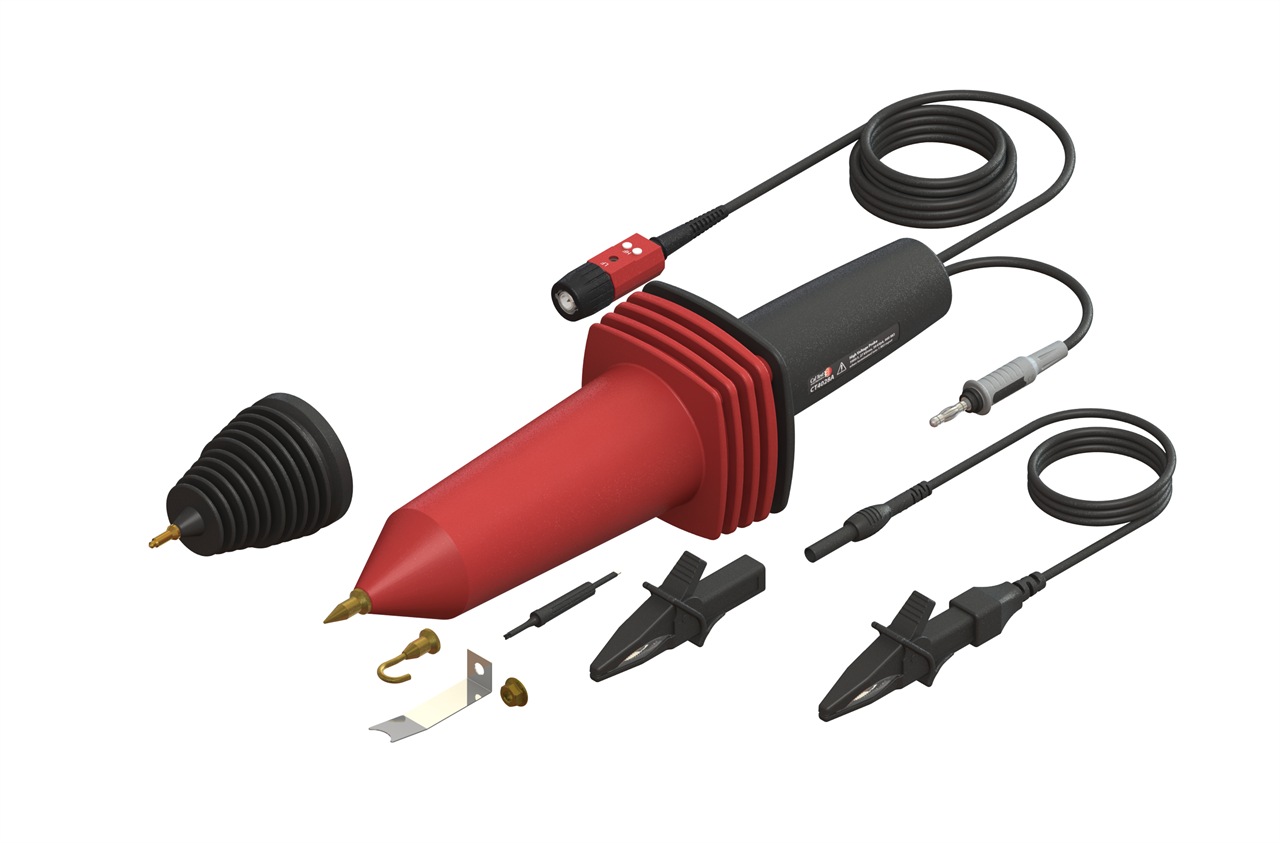

Cal Test Electronics’ improved CT4028A High-Voltage Oscilloscope Probe enables one to safely measure voltages up to 30 kV DC or 12 kV ACrms - now with a longer operating cycle. With new input circuitry, the probe can measure voltage up to 30 kV DC for 30 minutes before recommend removal. The original operating cycle was only 1 minute.

The CT4028A features 1000x attenuation, a bandwidth up to 50 MHz, plus features a full range of contact tips and ground connection alligator clips.

With a compensation range of 10 pF to 35 pF, the probe is compatible with 1 MΩ input oscilloscopes from all major manufacturers. Using the optional CT3197B Impedance Converter, the probe is DMM compatible.

The CT4028A is now covered by a two-year warranty, and is fully RoHS 2 and REACH compliant.

Features:

• Up to 30 kV DC
• 50 MHz Bandwidth
• Improved usage time at high voltage
• Compensation range of 10 pF - 35 pF
• Insulated BNC connection
• Full accessory offering
• Hard-shell carrying case
• DMM compatible with optional BNC Converter, CT3197B
• RoHS and REACH Compliant
• Two-year warranty
