CT4025
CT4025 Series
Active Catalog10 kV High Voltage Oscilloscope Probe
HV Oprobe, 10 kV, 120 MHz - 2.0m, BNC(m)
$550.001 Year Warranty
Overview
High voltage probes allow safe and accurate voltage measurement using your oscilloscope.
Model CT4025 features a 100:1 divider ratio with voltage up to 10 kV (DC+peak AC), 7 kV (ACrms) and bandwidth up to 120 MHz.
Compatible with oscilloscopes from all major manufacturers, the probe is a necessity for user safety during high voltage measurements.
Features:
- Meets IEC 61010-031 safety standard
- Up to 10 kV DC + peak AC
- 120 MHz bandwidth
- Readout actuator 100x
- Handle/Body: Black/Grey

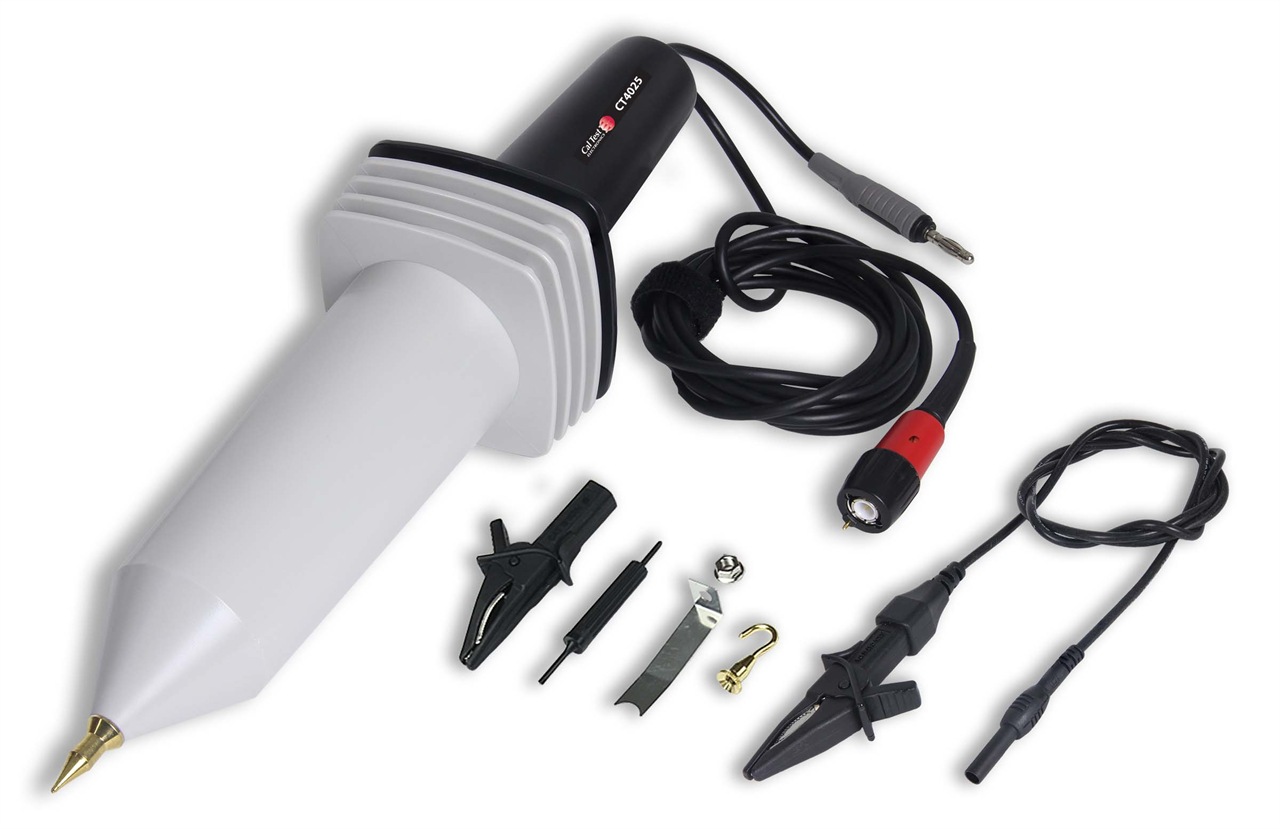

- Packaged in foam-lined carrying case kit contains:
- High voltage probe
- Grounding alligator clip
- Grounding lead extension w/ alligator clip
- Trimmer tool
- Tip
- Hook tip
- Flat bar tip
- User manual
Can be used with your DMM by employing BNC Converter CT3197B
Specifications
- Attenuation
- 100x
- Bandwidth
- 120 MHz
- Rated Voltage
- 10 kV CAT I
- Compensation Range
- 10 – 35 pF
- Cable Length
- 2 m
- Input Impedance
- 100 MΩ
- Input Capacitance
- 2 pF
- Readout Actuator
- Yes
- Rise Time
- 3 ns
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 49 days
