Overview
High voltage probes allow safe and accurate voltage measurement using your oscilloscope.

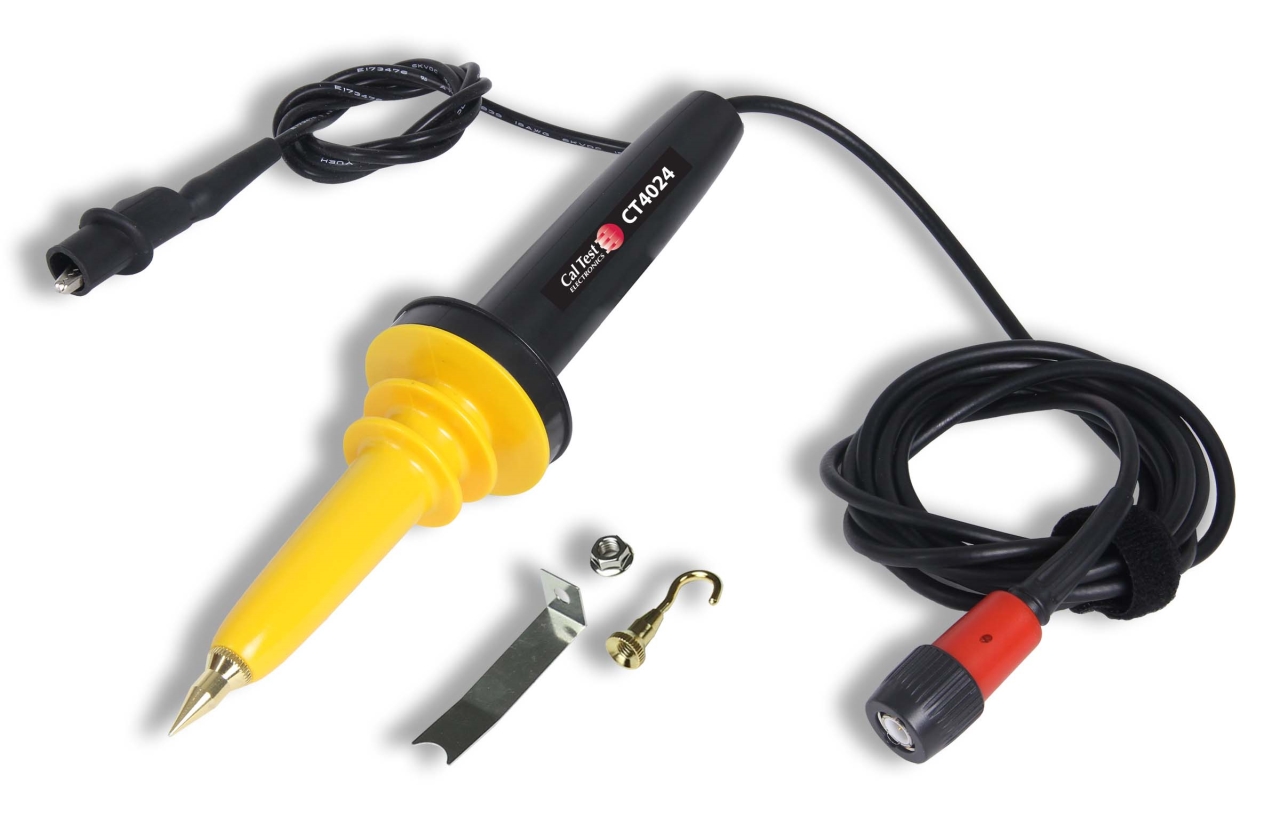

Model CT4024 is a compact probe featuring a 1000:1 divider ratio with voltage up to 8 kV (DC+peak AC), 6 kV (ACrms) and bandwidth up to 40 MHz.
Compatible with oscilloscopes from all major manufacturers, the probe is a necessity for user safety during high voltage measurements.
Features:
- Meets IEC 61010-031 safety standard
- Small size with big performance
- Up to 8 kV DC + peak AC
- 40 MHz bandwidth
- Handle/Body: Black/Yellow
- Kit contains:
- High voltage probe
- Trimmer tool
- Tip
- Hook tip
- Flat bar tip
- User manual
Can be used with your DMM by employing BNC Converter CT3197B
Specifications
- Attenuation
- 1000x
- Bandwidth
- 40 MHz
- Rated Voltage
- 8 kV CAT I
- Compensation Range
- 5 – 50 pF
- Cable Length
- 2 m
- Input Impedance
- 100 MΩ
- Input Capacitance
- 3 pF
- Readout Actuator
- No
- Rise Time
- 8.8 ns
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 49 days
- See More Specifications
- Manual
