CT4006-0
CT4006 Series
Active CatalogBanana Jack Panel Mount

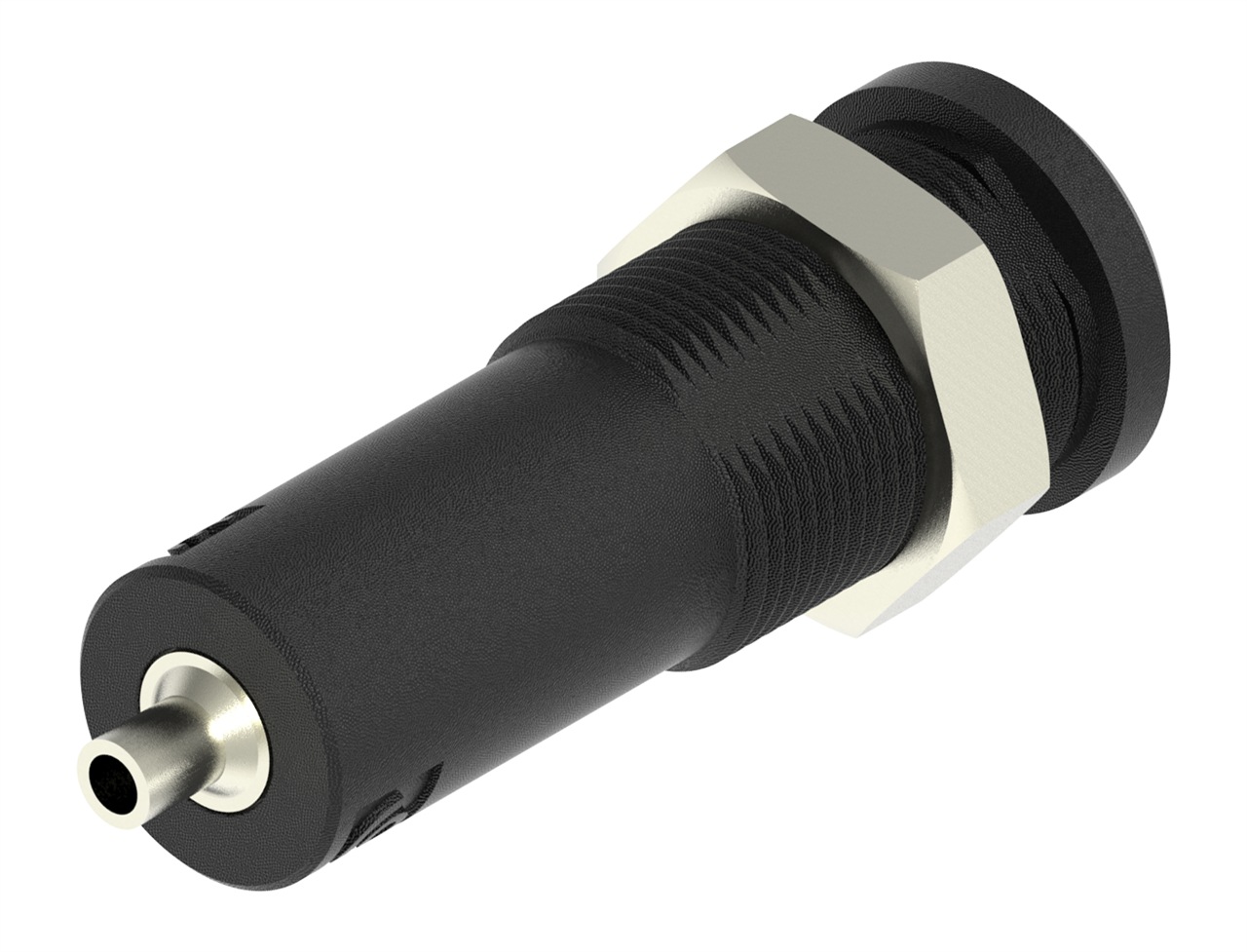

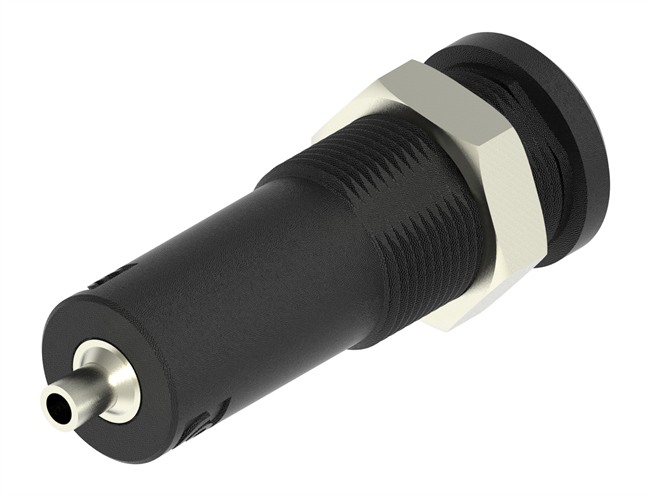

5 kV 4 mm Sheathed Banana Jack, 2 mm Solder Cup, Panel, Black
$5.751 Year Warranty
Where to Buy
Overview
The CT4006 operates up to 5 kV when used in non-category environments with transient overvoltages up to 2 kV. The jack also extends the rating of our 4mm Sheathed Banana Jacks to 1,000 V CAT IV.
For use only with Cal Test’s Long-Reach High Voltage Test Leads, CT3018 or CT3020. The jack offers a Ø2 mm solder cup termination for soldering to a wire. The jack fits into both plastic and metal panels fixed with a 14.5 mm hex panel nut.
- 1,000 V CAT IV, 5 kV non‐category with 2 kV transient overvoltage
- 10 A Max
- CE listed
- RoHS 2 compliant
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4006-0 | 5kV 4mm Shth Jack,2mm Solder Cup, Panel, Black | $5.75 | Active Catalog | 1 Year | Panel Mount | 1500 VDC CAT III / 1000 V CAT IV | Black | Brass, Nickel Plated | Polyamide | 10 A | 5 kV | EA |
 |
CT4006-2 | 5kV 4mm Shth Jack,2mm Solder Cup, Panel, Red | $5.75 | Active Catalog | 1 Year | Panel Mount | 1500 VDC CAT III / 1000 V CAT IV | Red | Brass, Nickel Plated | Polyamide | 10 A | 5 kV | EA |
Specifications
- Type
- Panel Mount
- Rated Voltage
- 1500 VDC CAT III / 1000 V CAT IV
- Color
- Black
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 10 A
- Max Voltage
- 5 kV
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
