CT3985B-120
CT3985B Series
Active CatalogProbe w/Locking Cap, RaShth Plug Leads, UL, 120cm, B/R Pair
Probe with Locking Cap, Right-Angle Sheathed Plug Leads, UL, 120 cm, Black and Red Pair
$24.001 Year Warranty
Where to Buy
Select Variant
Length
Overview

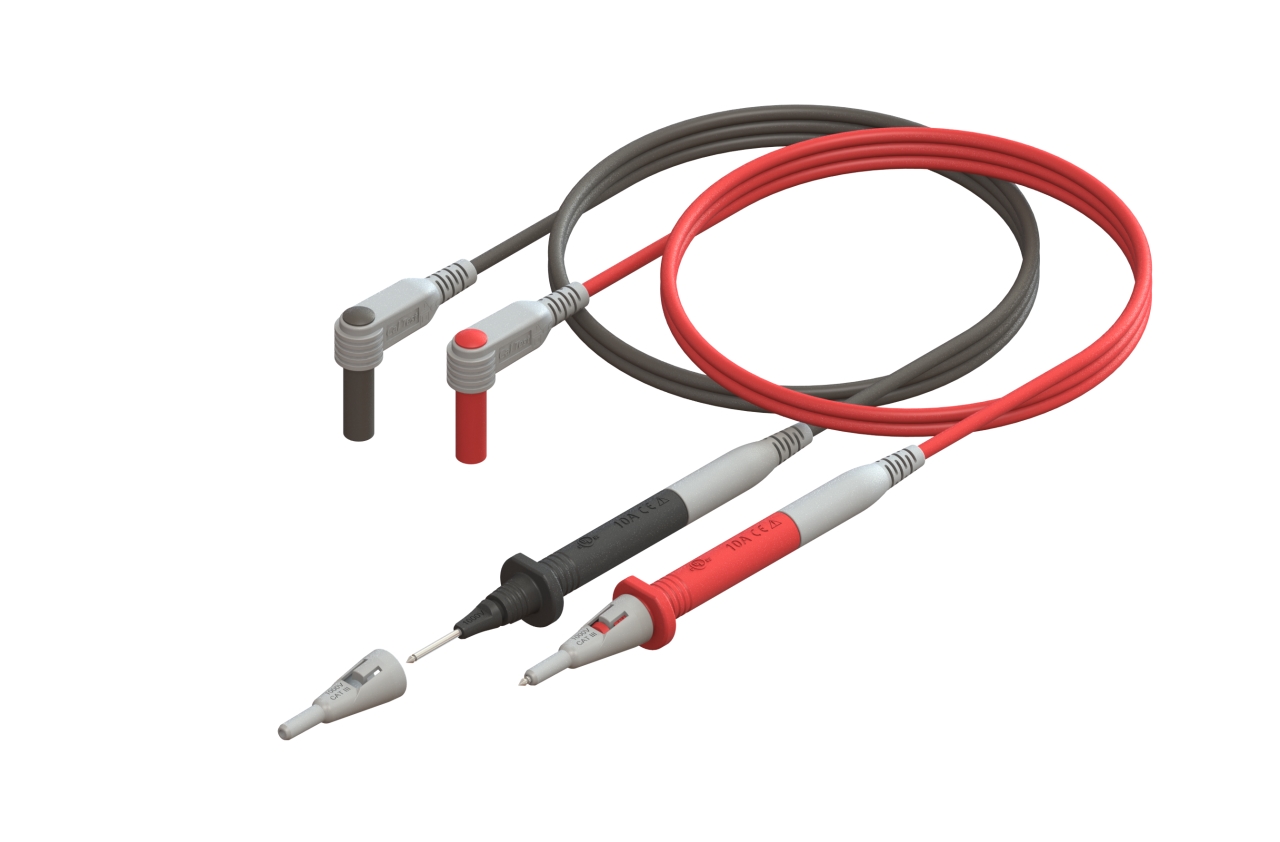

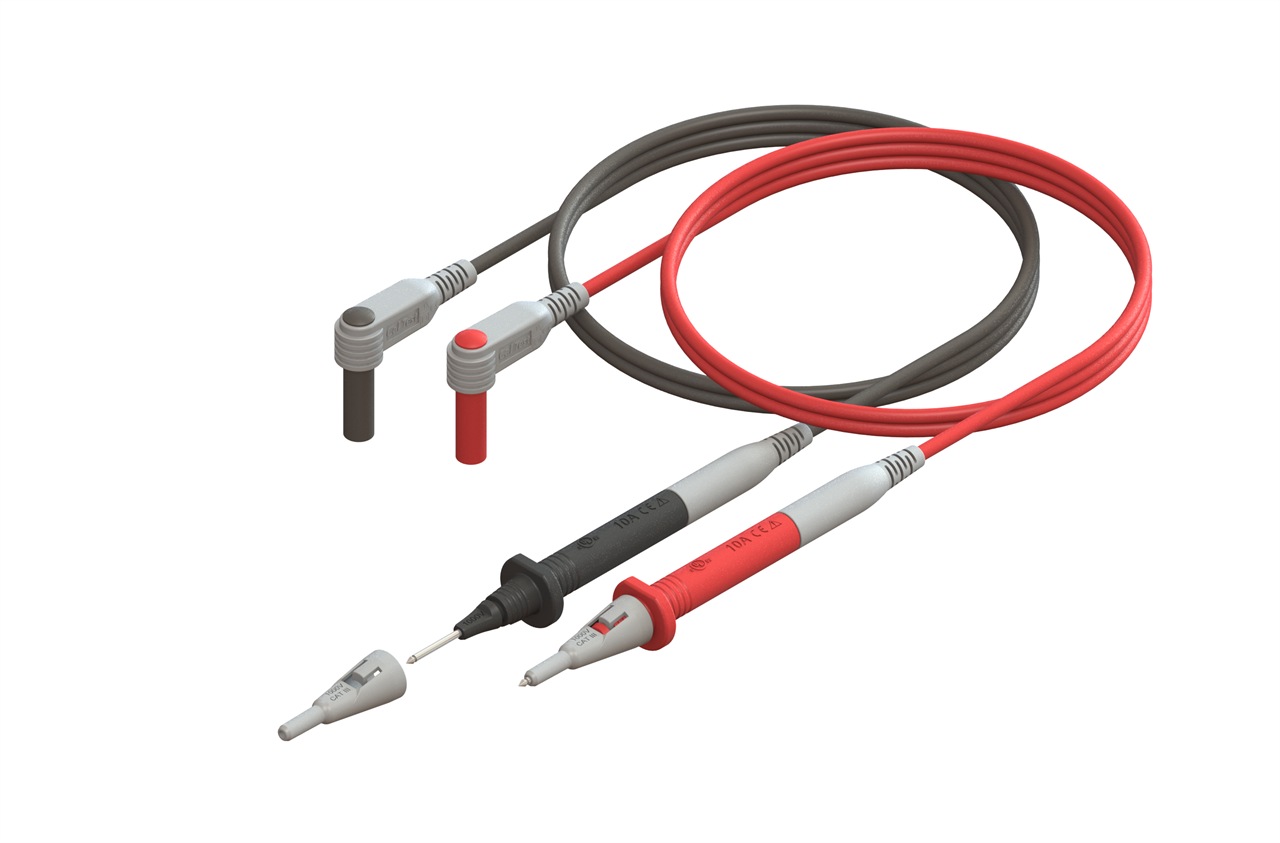

Pair of DMM probe with fixed right angle sheathed banana plug test leads, with 2 mm (.080”) diameter x 19 mm (0.75”) probe tips. With locking caps installed, probes meet the 600 V CAT IV per UL 61010-031. Remove the safety caps to access standard 2 mm tips and attach optional tip accessories that snap-lock to the probe body for secure connection.
Features:
- UL 61010-031 listed
- Pair, black and red
- Highly flexible silicone jacket lead wires
- 4 mm right-angle sheath banana plug connectors
- Tip: Brass, Nickel plated
- Tip fits North American power sockets
Excellent cross to Fluke® TL75 Hard Point™ Test Lead Set
Optional tip accessory pairs that snap-lock to the probe tips:
- CT3941B Extended Tips
- CT3943B Alligator Clips
- CT3945B Spade Lugs
- CT3947B Spring Hooks
Kit Contents
- (1) Probe w/Lock Cap, RaShth Plug Leads, UL, 120cm, Black - CT3984B-120-0
- (1) Probe w/Lock Cap, RaShth Plug Leads, UL, 120cm, Red - CT3984B-120-2
Specifications
- Type
- DMM Probe
- Connector A
- DMM Probe
- Length
- 120 cm
- Max Current
- 10 A
- Wire Gauge
- 18 AWG
- Jacket Material
- Silicone
- OD
- 3.7 mm (0.146")
- Operating Temperature
- -20º to +80ºC
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 56 days
