CT3981B-120
CT3981B Series
Active CatalogProbe w/Locking Cap, Shth Plug Leads, UL, 120cm, B/R Pair
Probe w/Lock Cap, Shth Plug Leads, UL, 120cm, B/R Pair
$24.001 Year Warranty
Overview

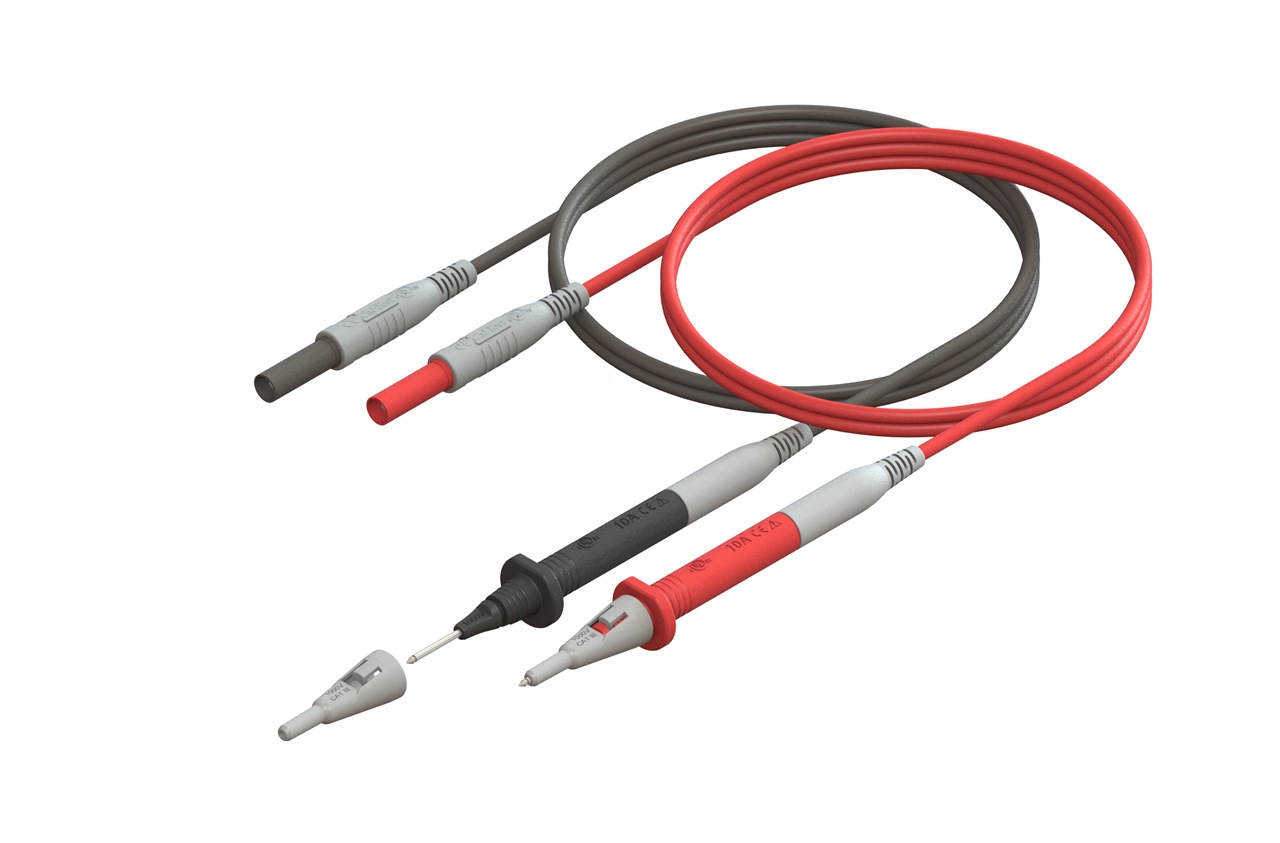

Pair of DMM probes with fixed leads, black and red, with 2 mm (.080”) diameter x 19 mm (0.75”) probe tips. With locking caps installed, probes are rated for 600 V CAT IV per UL 61010-031. Remove the safety caps to access the standard 2 mm tips and attach optional tip accessories that snap-lock to the probe body for secure connection.
Features:
- UL 61010-031 listed
- Pair, black and red
- Highly flexible silicone jacket lead wires
- 4 mm right-angle sheathed banana plug connectors
- Tip: Brass, Nickel plated
- Tip fits North American power sockets
Optional tip accessory pairs that snap-lock to the probe tips:
- CT3941B Extended Tips
- CT3943B Alligator Clips
- CT3945B Spade Lugs
- CT3947B Sprung Hooks
Kit Contents
- (1) Probe w/Lock Cap, Shth Plug Leads, UL, 120cm, Black - CT3980B-120-0
- (1) Probe w/Lock Cap, Shth Plug Leads, UL, 120cm, Red - CT3980B-120-2
Specifications
- Type
- Digital Multimeter (DMM)
- Max Current
- 10 A
- Color
- Black and Red Pair
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 56 days
- See More Specifications
- Manual
Documents
- ManualManual
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
