Product resources
CT3889
CT3889 Series
Active CatalogFully insulated BNC female to sheathed 4 mm Banana Plugs, General Purpose
Coax Adapter, Insulated BNC (f) to 4mm ShthPlugs
$24.001 Year Warranty
Overview

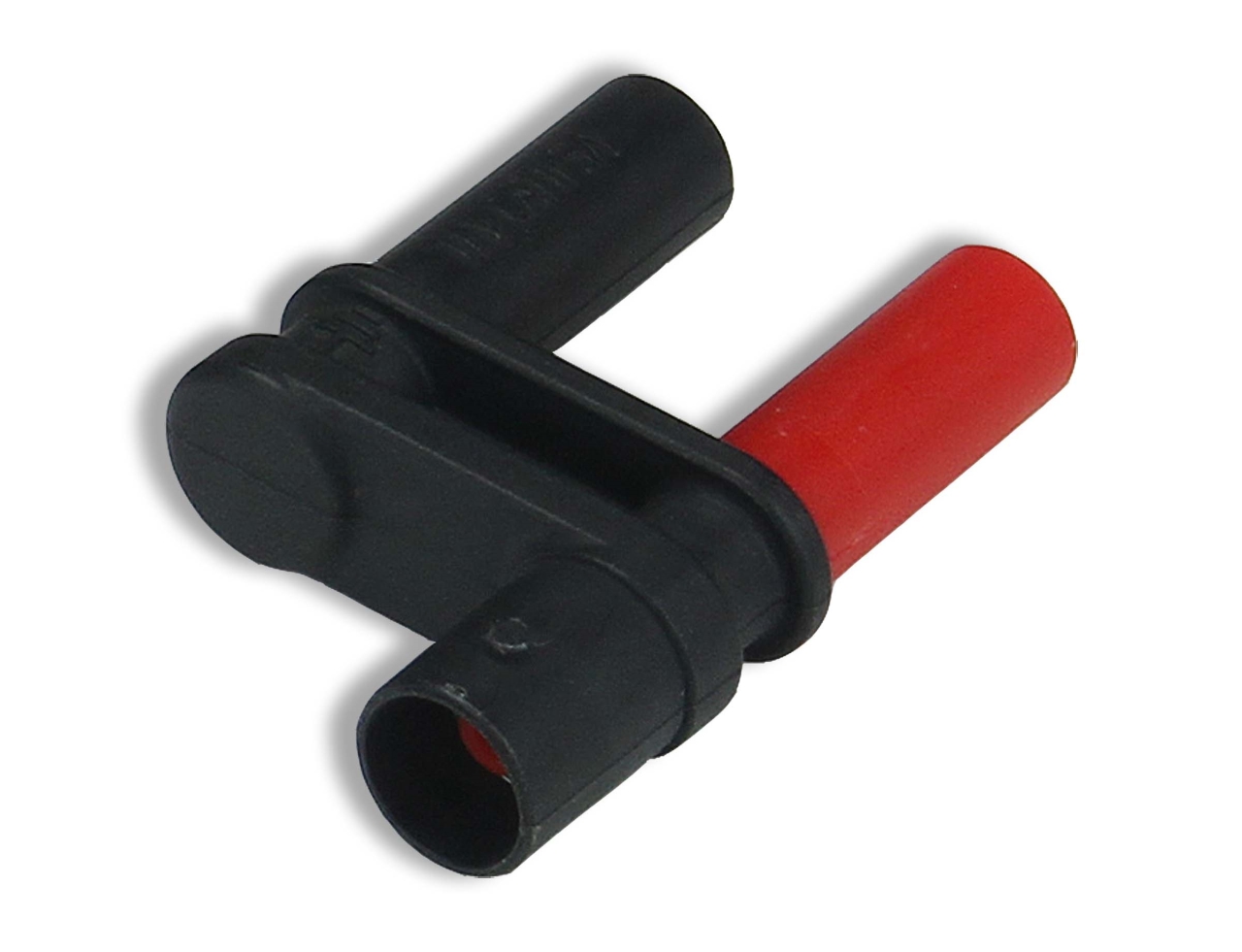

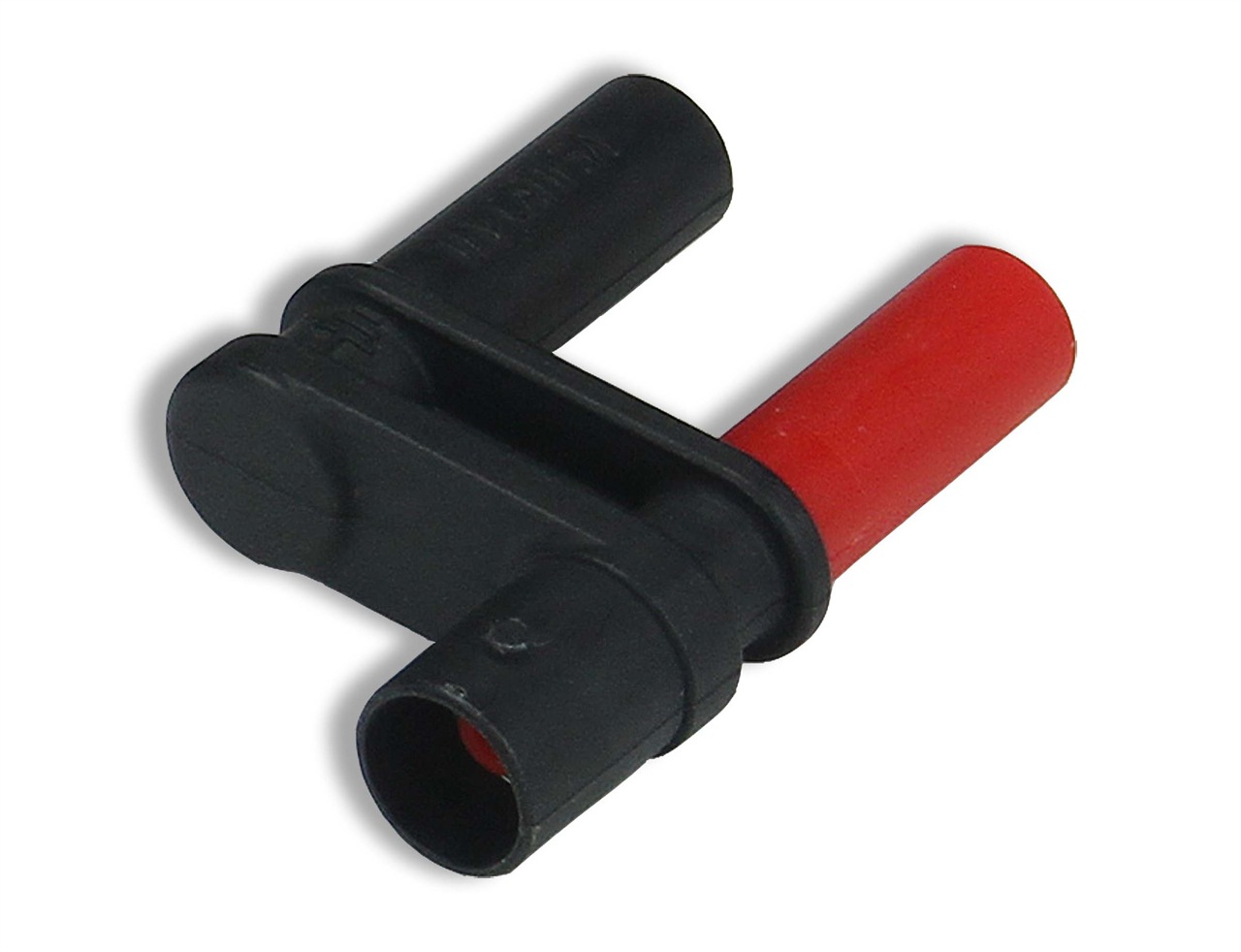

Fully insulated BNC female to sheathed 4 mm banana plugs coax adapter. Adapts a BNC male cable, component or equipment to double banana plugs.
Fits shrouded (sheathed) safety banana jacks on standard 19 mm (.75") centers. Used for interconnection to power supplies, function generators and other test instrumentation. A very versatile adapter.
Features:
- Fully insulated, plastic, BNC female
- Sheathed banana plugs
- IEC rated to 1,000 V CAT II
- 19 mm (.75") plug spacing
- RoHS 2 compliant
Specifications
- Connector Grade
- -
- Impedance
- 50 Ohms
- Rated Voltage
- 1,000 V CAT II / 600 V CAT III
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.69.4010
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
