CT3887-5
CT3887 Series
Special OrderBanana Jack Panel Mount

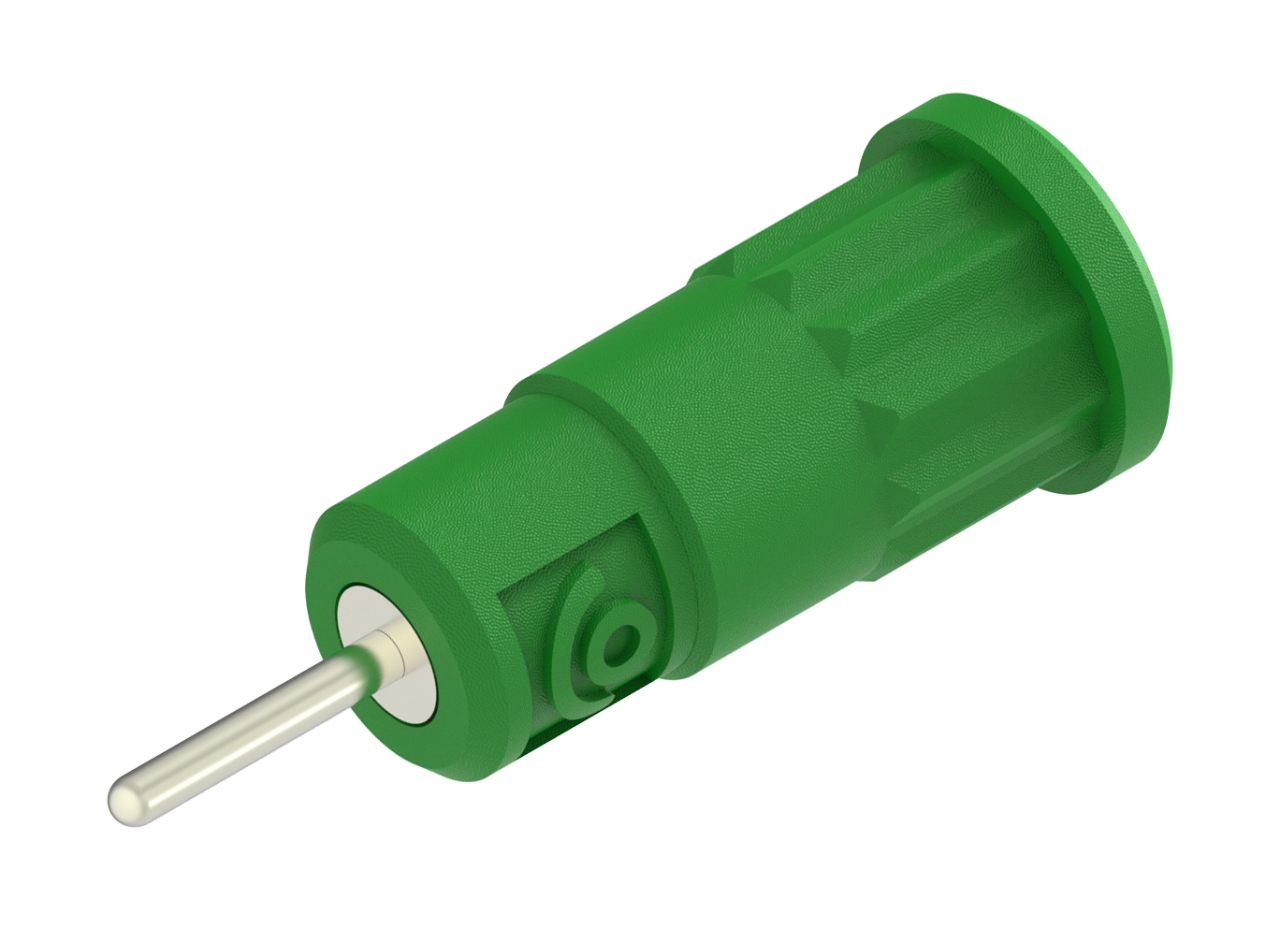

CAT IV 4 mm Sheathed Banana Jack, Press Fit, 2 mm Pin, 1 kV, Green
$7.001 Year Warranty
Where to Buy
Overview
Cal Test Electronics is pleased to introduce its new CAT IV rated Sheathed Banana Jack. The CT3887 extends the rating of our Sheathed Banana Jacks from 1,000 V CAT III to 1,000 V CAT IV.
Accepting sheathed 4 mm banana plugs, the CT3887 offers a Ø2 mm x 12 mm short pin termination for solder of a wire or onto a PCB. The jack press fits into both plastic and metal panels.
- 1,000 V CAT IV
- Meets IEC 61010-031 safety standard
- Accepts sheathed or standard banana plugs
- Press fit to panel mounts
- Ø2 mm x 12 mm Short pin termination
- 36 A Max
- CE listed
- RoHS 2 compliant
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3887-0 | CAT IV 4mm Shth J, Press Fit, 2mm Pin, 1kV, Black | $7.00 | Active Catalog | 1 Year | Panel Mount | 1500 VDC CAT III / 1000 V CAT IV | Black | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT3887-2 | CAT IV 4mm Shth J, Press Fit, 2mm Pin, 1kV, Red | $7.00 | Active Catalog | 1 Year | Panel Mount | 1500 VDC CAT III / 1000 V CAT IV | Red | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT3887-4 | CAT IV 4mm Shth J, Press Fit, 2mm Pin, 1kV, Yellow | $7.00 | Special Order | 1 Year | Panel Mount | 1500 VDC CAT III / 1000 V CAT IV | Yellow | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT3887-5 | CAT IV 4mm Shth J, Press Fit, 2mm Pin, 1kV, Green | $7.00 | Special Order | 1 Year | Panel Mount | 1500 VDC CAT III / 1000 V CAT IV | Green | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT3887-6 | CAT IV 4mm Shth J, Press Fit, 2mm Pin, 1kV, Blue | $7.00 | Active Catalog | 1 Year | Panel Mount | 1500 VDC CAT III / 1000 V CAT IV | Blue | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT3887-9 | CAT IV 4mm Shth J, Press Fit, 2mm Pin, 1kV, White | $7.00 | Active Catalog | 1 Year | Panel Mount | 1500 VDC CAT III / 1000 V CAT IV | White | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
Specifications
- Type
- Panel Mount
- Rated Voltage
- 1500 VDC CAT III / 1000 V CAT IV
- Color
- Green
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 36 A
- Max Voltage
- -
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
