CT3810-60
CT3810 Series
Active CatalogAlligator Clip Test Lead

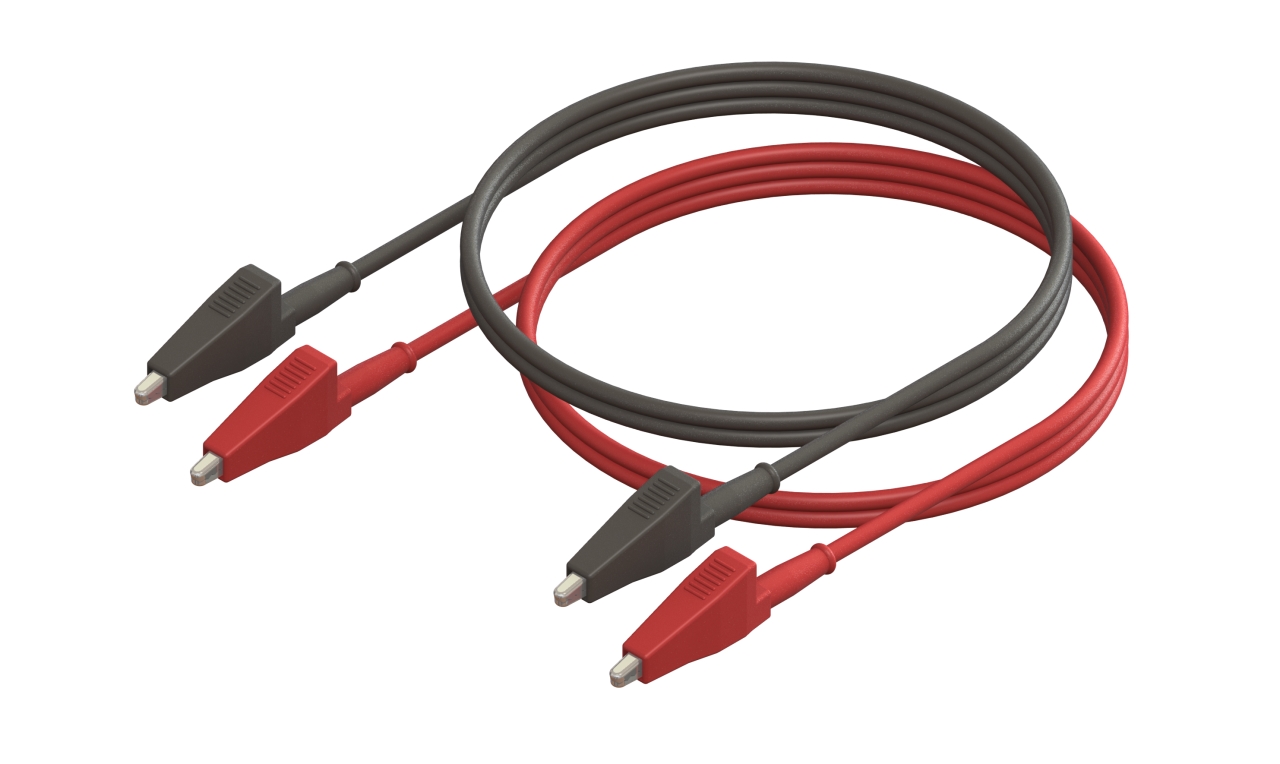

Lead, Med. Alligator Clips - Silicone 0.82, 60 cm, Black and Red Pair
$12.901 Year Warranty
Where to Buy
Overview
Black and red pair of standard insulated alligator clip to standard insulated alligator clip test leads. Alligator clips have insulated PVC boots. Test lead wire is 18 AWG with highly flexible silicone jackets.
Features:
- Materials:
- Body & spring: steel, nickel plated
- Insulator: PVC
- Wire: high stranded bare copper; silicone jacket
- Jaws open to 7.9 mm (0.31")
- Black & red pair
- Available in 3 lengths
- IEC 61010-031 rated
Available as individual colors Model CT3809
Kit Contents
- (1) Lead, Md Allig Clips - SILIC 0.82, 60cm, Black - CT3809-60-0
- (1) Lead, Md Allig Clips - SILIC 0.82, 60cm, Red - CT3809-60-2
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Connector A | Length | Max Current | Wire Gauge | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3810-100 | Lead, Med. Allig Clips - SILIC 0.82, 100cm, B/R Pair | $15.20 | Active Catalog | 1 Year | Alligator | Alligator | 100 cm | 10 A | 18 AWG | EA |
 |
CT3810-30 | Lead, Med. Allig Clips - SILIC 0.82, 30cm, B/R Pair | $11.20 | Active Catalog | 1 Year | Alligator | Alligator | 30 cm | 10 A | 18 AWG | EA |
 |
CT3810-60 | Lead, Med. Allig Clips - SILIC 0.82, 60cm, B/R Pair | $12.90 | Active Catalog | 1 Year | Alligator | Alligator | 60 cm | 10 A | 18 AWG | EA |
Specifications
- Type
- Alligator
- Connector A
- Alligator
- Length
- 60 cm
- Max Current
- 10 A
- Wire Gauge
- 18 AWG
- Conductor Area
- 0.82 mm2
- Jacket Material
- Silicone
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Datasheet
