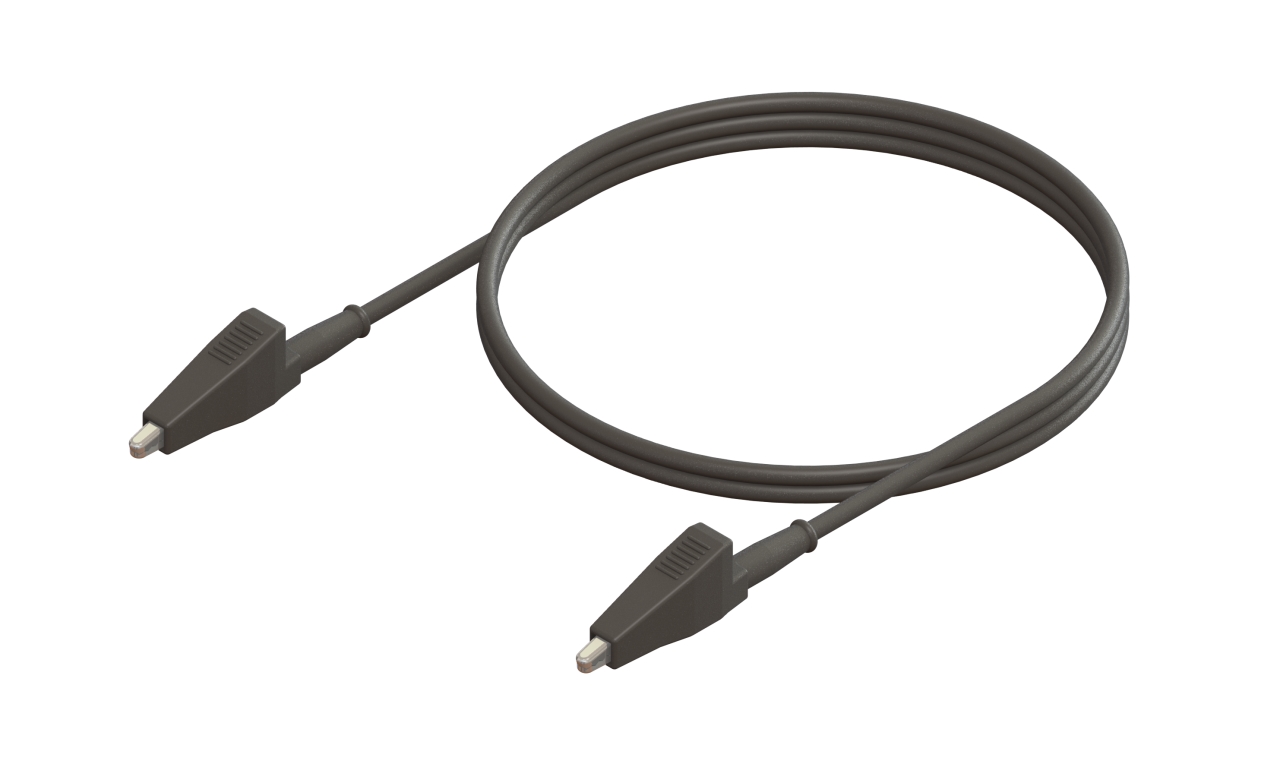

CT3809-30-0
CT3809 Series
Active CatalogAlligator Clip Test Lead
Lead, Md Allig Clips - SILIC 0.82, 30cm, Black
$5.601 Year Warranty
Where to Buy
Overview
Individual color, standard insulated alligator clip to standard insulated alligator clip test lead. Alligator clips have insulated PVC boots. Test lead wire is 18 AWG with highly flexible silicone jacket.
Features:
- Materials:
- Body & spring: steel, nickel plated
- Insulator: PVC
- Wire: bare copper, high stranding; silicone jacket
- Jaws open to 7.9 mm (0.31")
- Available in 2 colors and 3 lengths
- IEC 61010-031 rated
Available as a black and red pair Model CT3810
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Connector A | Length | Color | Max Current | Wire Gauge | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3809-100-0 | Lead, Med. Allig Clips - SILIC 0.82, 100cm, Black | $7.60 | Active Catalog | 1 Year | Alligator | Alligator | 100 cm | Black | 10 A | 18 AWG | EA |
 |
CT3809-100-2 | Lead, Med. Allig Clips - SILIC 0.82, 100cm, Red | $7.60 | Active Catalog | 1 Year | Alligator | Alligator | 100 cm | Red | 10 A | 18 AWG | EA |
 |
CT3809-30-0 | Lead, Md Allig Clips - SILIC 0.82, 30cm, Black | $5.60 | Active Catalog | 1 Year | Alligator | Alligator | 30 cm | Black | 10 A | 18 AWG | EA |
 |
CT3809-30-2 | Lead, Md Allig Clips - SILIC 0.82, 30cm, Red | $5.60 | Active Catalog | 1 Year | Alligator | Alligator | 30 cm | Red | 10 A | 18 AWG | EA |
 |
CT3809-60-0 | Lead, Md Allig Clips - SILIC 0.82, 60cm, Black | $6.45 | Active Catalog | 1 Year | Alligator | Alligator | 60 cm | Black | 10 A | 18 AWG | EA |
 |
CT3809-60-2 | Lead, Md Allig Clips - SILIC 0.82, 60cm, Red | $6.45 | Active Catalog | 1 Year | Alligator | Alligator | 60 cm | Red | 10 A | 18 AWG | EA |
Specifications
- Type
- Alligator
- Connector A
- Alligator
- Length
- 30 cm
- Color
- Black
- Max Current
- 10 A
- Wire Gauge
- 18 AWG
- Conductor Area
- 0.82 mm2
- Jacket Material
- Silicone
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 95 days
- See More Specifications
- Datasheet
