Product resources
CT3805-100
CT3805 Series
Active CatalogBanana Plug Test Lead
Lead, Med. Allig - Shth RaP - SILIC 0.82, 100cm, B/R Pair
$14.701 Year Warranty
Where to Buy
Overview

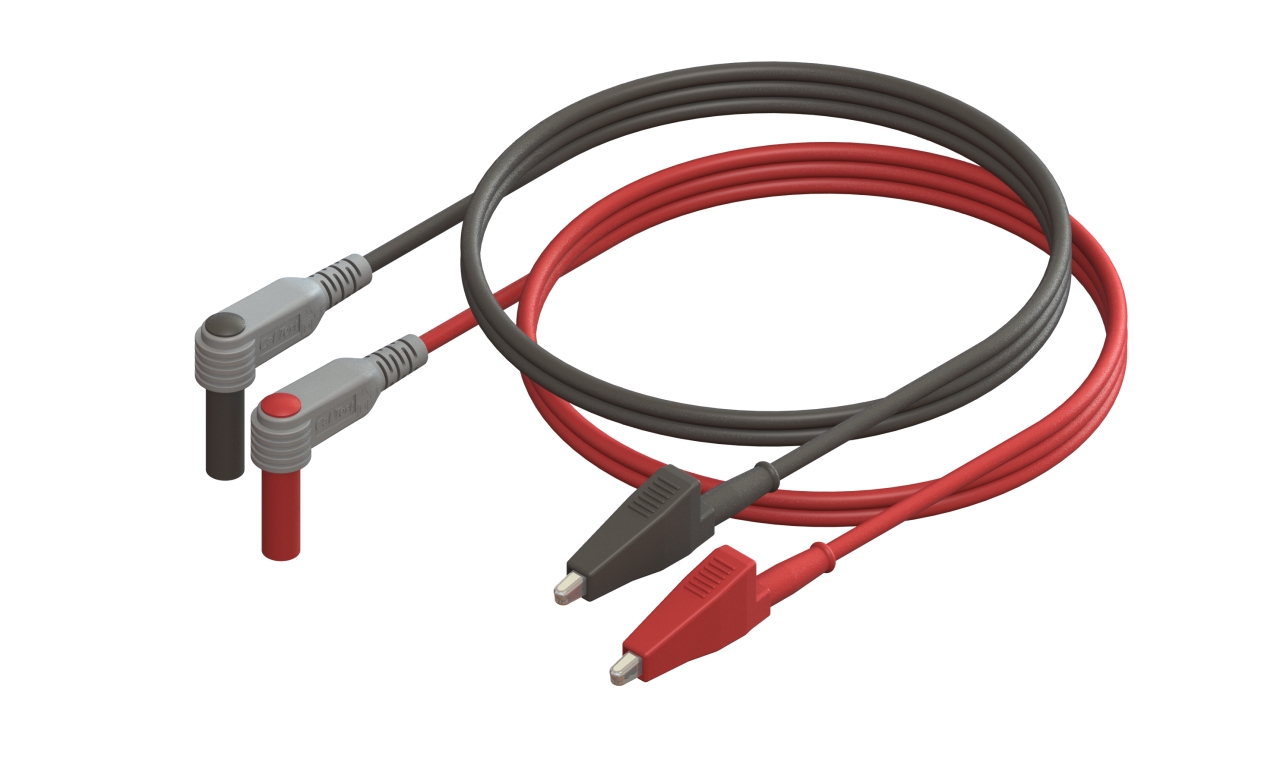

Pair of 4mm Right-Angle Sheath Banana Plug to Insulated Alligator Clip Test Leads, Black and Red. Highly flexible silicone jacketed test lead wire.
- Banana Contact: BeCu, Nickel Plt.
- Alligator Clip: Steel, Nickel Plt.
- Jaws open to 0.31" (7.9 mm)
- Available in 3 standard lengths
- Black and Red pair
Kit Contents
- (1) Lead, Med. Allig - Shth RaP - SILIC 0.82, 100cm, Black - CT3804-100-0
- (1) Lead, Med. Allig - Shth RaP - SILIC 0.82, 100cm, Red - CT3804-100-2
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Connector A | Length | Max Current | Wire Gauge | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3805-100 | Lead, Med. Allig - Shth RaP - SILIC 0.82, 100cm, B/R Pair | $14.70 | Active Catalog | 1 Year | Alligator | Alligator | 100 cm | 10 A | 18 AWG | EA |
 |
CT3805-30 | Lead, Med. Allig - Shth RaP - SILIC 0.82, 30cm, B/R Pair | $11.50 | Active Catalog | 1 Year | Alligator | Alligator | 30 cm | 10 A | 18 AWG | EA |
 |
CT3805-60 | Lead, Med. Allig - Shth RaP - SILIC 0.82, 60cm, B/R Pair | $12.90 | Active Catalog | 1 Year | Alligator | Alligator | 60 cm | 10 A | 18 AWG | EA |
Specifications
- Type
- Alligator
- Connector A
- Alligator
- Length
- 100 cm
- Max Current
- 10 A
- Wire Gauge
- 18 AWG
- Conductor Area
- 0.87 mm2
- Jacket Material
- Silicone
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
