CT3804-60-0
CT3804 Series
Active CatalogBanana Plug Test Lead
Lead, Med. Allig - Shth RaP - SILIC 0.82, 60cm, Black
$6.451 Year Warranty
Where to Buy
Overview

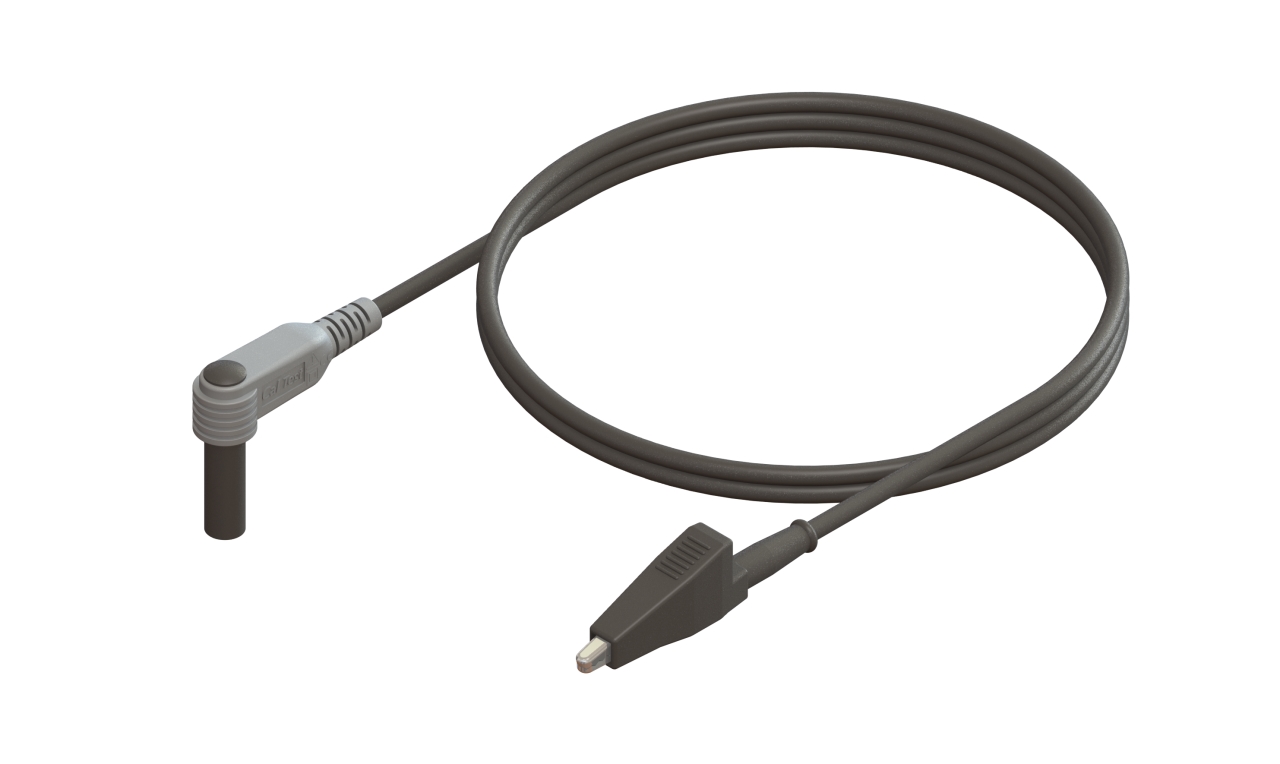

4mm Right-Angle Sheath Banana Plug to Insulated Alligator Clip Test Lead. Highly flexible silicone jacketed test lead wire.
- Banana Contact: BeCu, Nickel Plt.
- Alligator Clip: Steel, Nickel Plt.
- Jaws open to 0.31" (7.9 mm)
- Available in 2 standard lengths
- Available in 2 colors
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Connector A | Length | Color | Max Current | Wire Gauge | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3804-100-0 | Lead, Med. Allig - Shth RaP - SILIC 0.82, 100cm, Black | $7.35 | Active Catalog | 1 Year | Alligator | Alligator | 100 cm | Black | 10 A | 18 AWG | EA |
 |
CT3804-100-2 | Lead, Med. Allig - Shth RaP - SILIC 0.82, 100cm, Red | $7.35 | Active Catalog | 1 Year | Alligator | Alligator | 100 cm | Red | 10 A | 18 AWG | EA |
 |
CT3804-30-0 | Lead, Med. Allig - Shth RaP - SILIC 0.82, 30cm, Black | $5.75 | Active Catalog | 1 Year | Alligator | Alligator | 30 cm | Black | 10 A | 18 AWG | EA |
 |
CT3804-30-2 | Lead, Med. Allig - Shth RaP - SILIC 0.82, 30cm, Red | $5.75 | Active Catalog | 1 Year | Alligator | Alligator | 30 cm | Red | 10 A | 18 AWG | EA |
 |
CT3804-60-0 | Lead, Med. Allig - Shth RaP - SILIC 0.82, 60cm, Black | $6.45 | Active Catalog | 1 Year | Alligator | Alligator | 60 cm | Black | 10 A | 18 AWG | EA |
 |
CT3804-60-2 | Lead, Med. Allig - Shth RaP - SILIC 0.82, 60cm, Red | $6.45 | Active Catalog | 1 Year | Alligator | Alligator | 60 cm | Red | 10 A | 18 AWG | EA |
Specifications
- Type
- Alligator
- Connector A
- Alligator
- Length
- 60 cm
- Color
- Black
- Max Current
- 10 A
- Wire Gauge
- 18 AWG
- Conductor Area
- 0.87 mm2
- Jacket Material
- Silicone
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 95 days
- See More Specifications
- Datasheet
