CT3756

Name: CT3756 Med. Alligator Clips, Insul. w/8-32 Thd, B/R Pair
Brand: Cal Test Electronics
SKU: CT3756
Price: 4.5 USD
Availability: InStock

CT3756 Series

Active Catalog

Insulated Alligator Clip

Med. Alligator Clips, Insul. w/8-32 Thd, B/R Pair

$4.501 Year Warranty

Where to Buy

Distributor	Availability
DIGIKEY	2 in stock	Buy Now →
MOUSER ELECTRONICS	Low Stock	Buy Now →
TestEquity LLC	Low Stock	Buy Now →

Overview

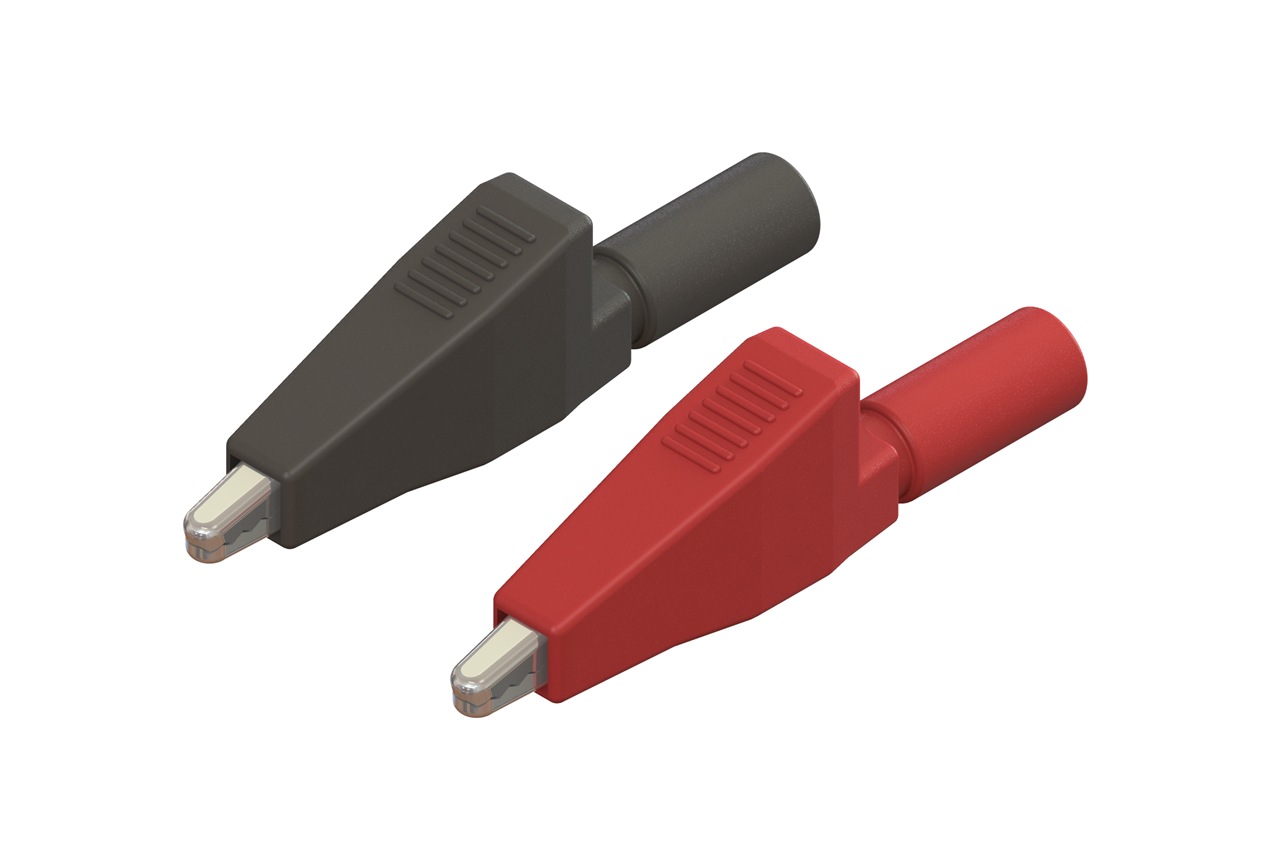

Black and red pair of standard alligator clips with flexible PVC insulators. The clips accept probes with 8-32 UNC threads at the base of their tips.

Features:

Materials:
- Body & spring: steel, nickel plated
- Insulator: PVC
Black & red pair
Overall length: 56 mm (2.21")
Jaws open to 7.9 mm (0.31")
IEC 61010-031 rated

Available as individual colors Model CT3755

Kit Contents

(1) Med. Alligator Clip, Insul. w/8-32 Thd, Black - CT3755-0
(1) Med. Alligator Clip, Insul. w/8-32 Thd, Red - CT3755-2

Specifications

Type: Partial Insulation
Rated Voltage: 300 V CAT II
Max Current: 10 A
Voltage: 300 V CAT II
Operating Temperature: 0° to +60°C
Export Control Classification Number (ECCN): EAR99
REACH Compliance: Compliant
RoHS Compliance: RoHS 2 (2015/863/EU) Compliant
Schedule B Number: 8536.90.4000
Country of Origin: Taiwan
Lead Time: 84 days
See More Specifications: Datasheet
