Product resources
CT3754-200
CT3754 Series
Active CatalogUL Listed Silicone Test Leads
Lead, Shth P-Shth RaP - SILIC 0.82, 200cm, B/R Pair, CT UL
$26.001 Year Warranty
Where to Buy
Overview

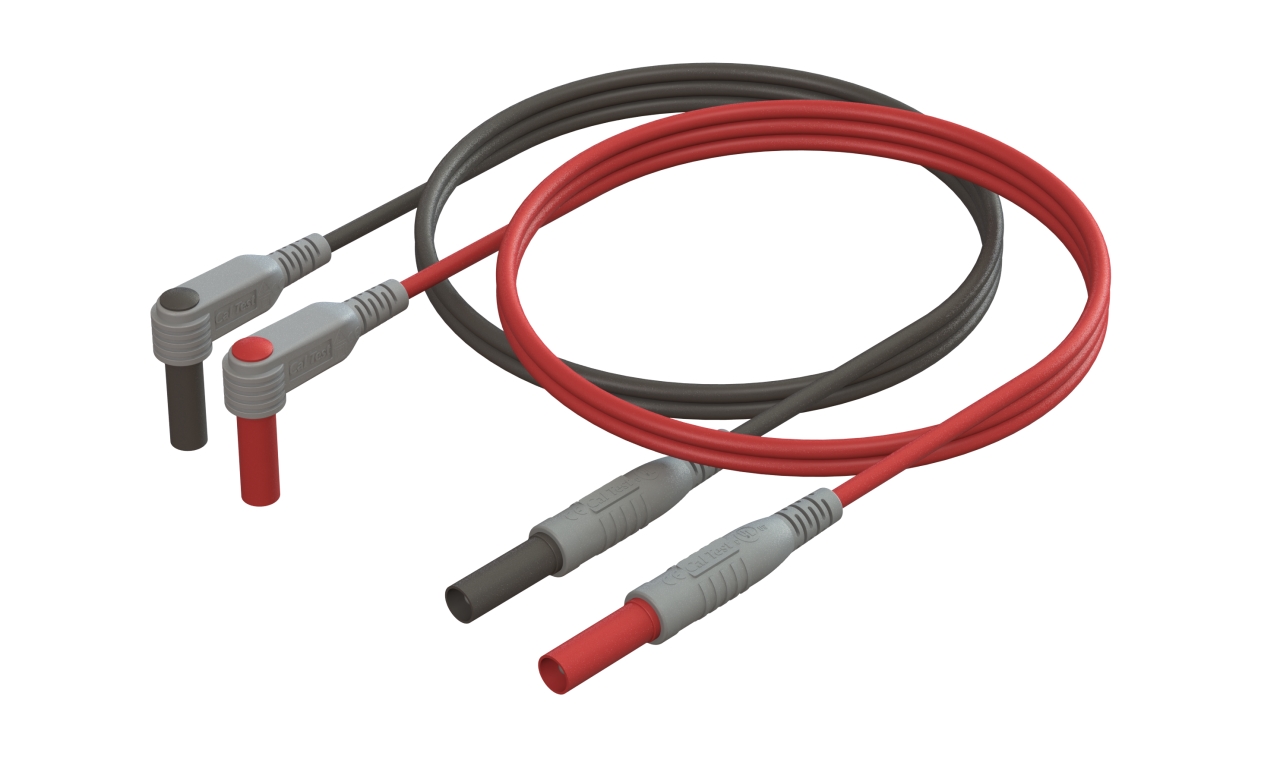

Pair of UL Listed 4mm Straight Sheathed Banana Plug to Right-Angle Sheathed Banana Plug Test Leads, Black and Red. Highly flexible silicone jacketed test lead wire.
- Banana Contact: BeCu, Nickel Plt.
- Available in 3 standard lengths
- Black and Red pair
Kit Contents
- (1) Lead, Shth P-Shth RaP - SILIC 0.82, 200cm, Black; CT UL - CT3753-200-0
- (1) Lead, Shth P-Shth RaP - SILIC 0.82, 200cm, Red; CT UL - CT3753-200-2
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Connector A | Length | Color | Max Current | Wire Gauge | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3754-100 | Lead, Shth P-Shth RaP - SILIC 0.82, 100cm, B/R Pair, CT UL | $20.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 100 cm | Black/Red Pair | 10 A | 18 AWG | EA |
 |
CT3754-150 | Lead, Shth P-Shth RaP - SILIC 0.82, 150cm, B/R Pair, CT UL | $24.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 150 cm | Black/Red Pair | 10 A | 18 AWG | EA |
 |
CT3754-200 | Lead, Shth P-Shth RaP - SILIC 0.82, 200cm, B/R Pair, CT UL | $26.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 200 cm | Black/Red Pair | 10 A | 18 AWG | EA |
Specifications
- Type
- Banana Plug
- Connector A
- Banana Plug
- Length
- 200 cm
- Color
- Black/Red Pair
- Max Current
- 10 A
- Wire Gauge
- 18 AWG
- Conductor Area
- 0.87 mm2
- Jacket Material
- Silicone
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
