Product resources
CT3752-200
CT3752 Series
Active CatalogBanana Plug Test Lead
Lead, Shth P-Shth P - SILIC 0.82, 200cm, B/R Pair, CT UL
$24.001 Year Warranty
Where to Buy
Overview

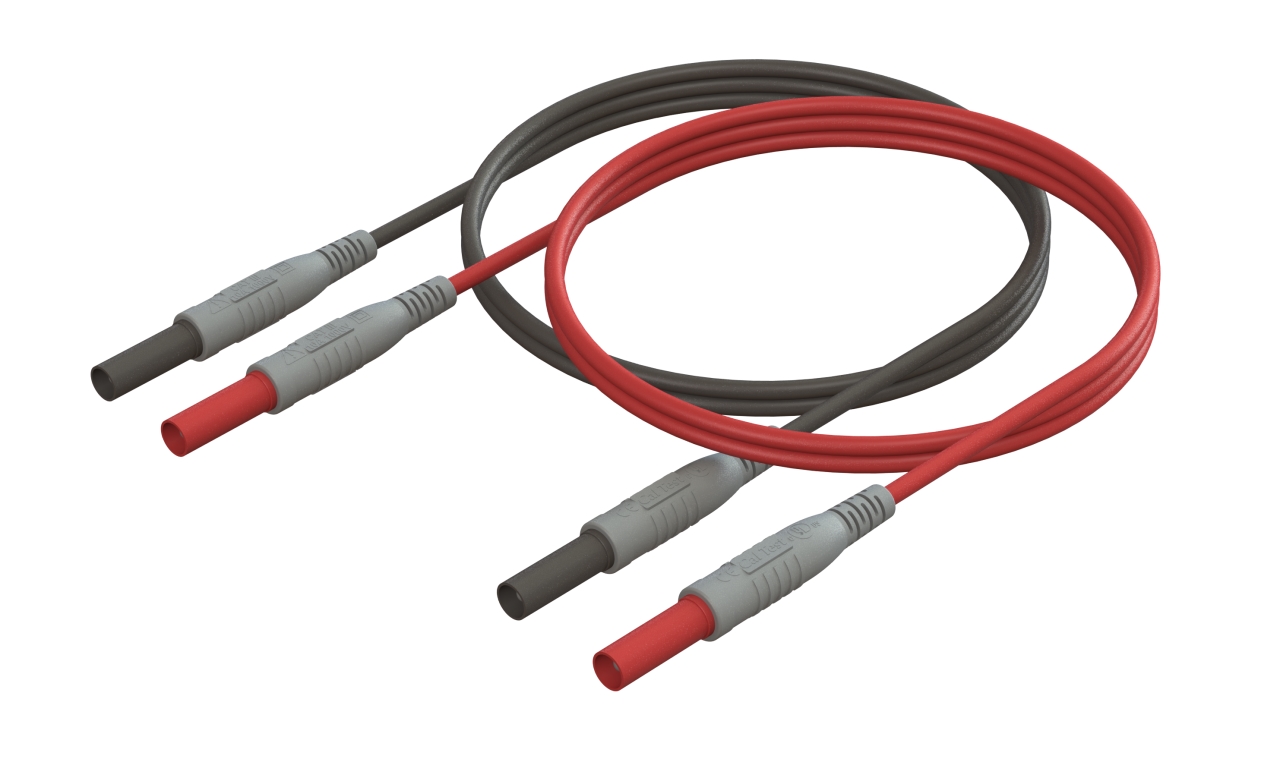

UL Listed 4mm Straight Sheathed Banana Plug to Straight Sheathed Banana Plug Test Lead pair, Black and Red. Highly flexible silicone jacketed test lead wire.
- Banana Contact: BeCu, Nickel Plt.
- Available in 3 standard lengths
- Available in Black and Red Pair
Kit Contents
- (1) Lead, Shth P-Shth P - SILIC 0.82, 200cm, Black; CT UL - CT3751-200-0
- (1) Lead, Shth P-Shth P - SILIC 0.82, 200cm, Red; CT UL - CT3751-200-2
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Connector A | Length | Max Current | Wire Gauge | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3752-100 | Lead, Shth P-Shth P - SILIC 0.82, 100cm, B/R Pair, CT UL | $20.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 100 cm | 10 A | 18 AWG | EA |
 |
CT3752-150 | Lead, Shth P-Shth P - SILIC 0.82, 150cm, B/R Pair, CT UL | $22.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 150 cm | 10 A | 18 AWG | EA |
 |
CT3752-200 | Lead, Shth P-Shth P - SILIC 0.82, 200cm, B/R Pair, CT UL | $24.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 200 cm | 10 A | 18 AWG | EA |
Specifications
- Type
- Banana Plug
- Connector A
- Banana Plug
- Length
- 200 cm
- Max Current
- 10 A
- Wire Gauge
- 18 AWG
- Conductor Area
- 0.87 mm2
- Jacket Material
- Silicone
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Product Drawing
Documents
- Product DrawingProduct Drawing
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
