Overview

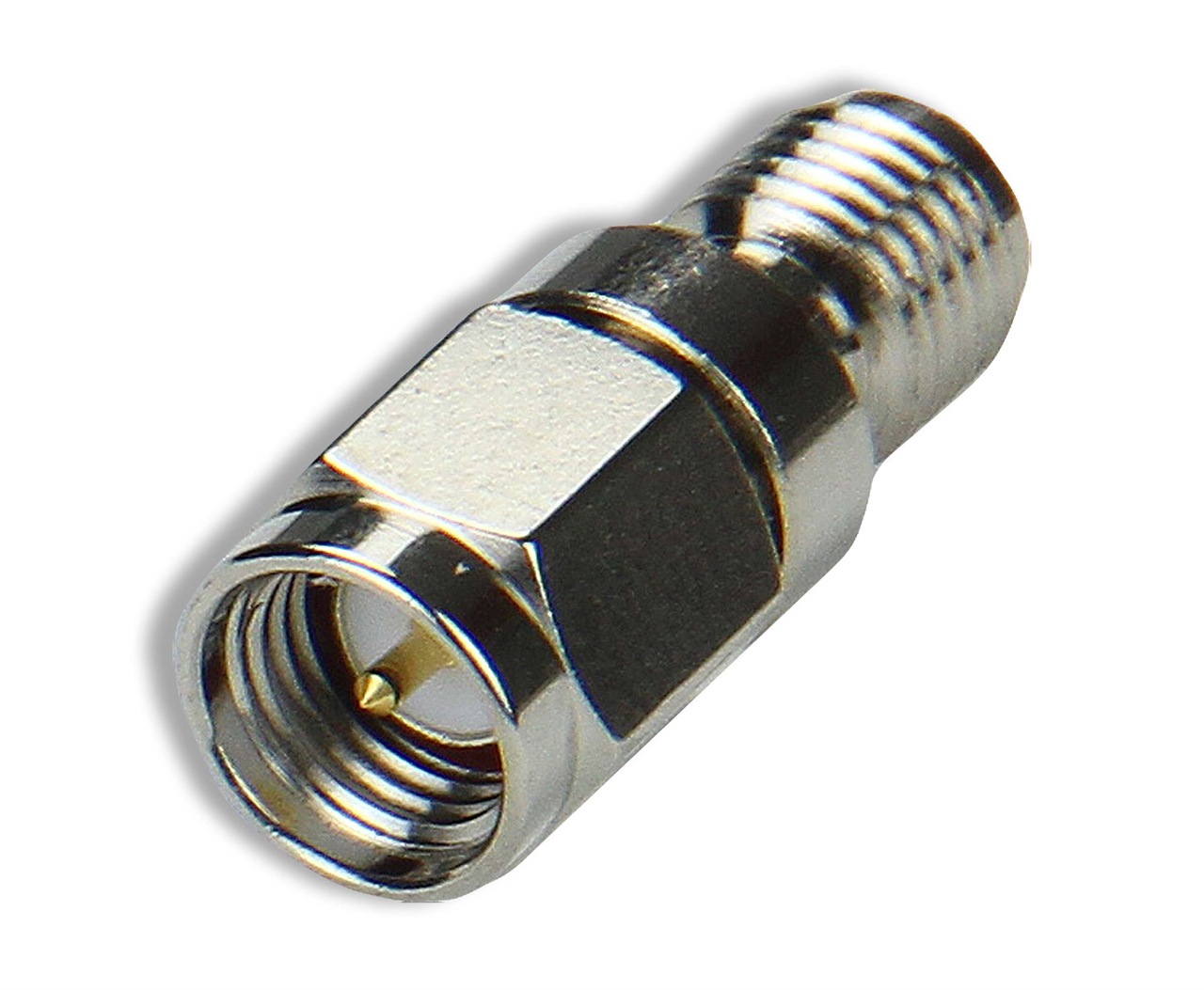

General Purpose SMA barrel, male to female, 50 Ω in-series coaxial adapter.
- General Purpose
- Body: Brass, Gold Plated
- Contact: Brass and BeCu, Gold Plated
- Dielectric: PTFE
Specifications
- Connector Grade
- General Purpose
- Frequency Range
- DC to 12.4 GHz
- Impedance
- 50 Ohms
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.69.4010
- Country of Origin
- Taiwan
- Lead Time
- 30 days
- See More Specifications
- Datasheet
