Product resources
CT3672
CT3672 Series
Active CatalogOscilloscope Probe Cover Shell &Tip Grounds

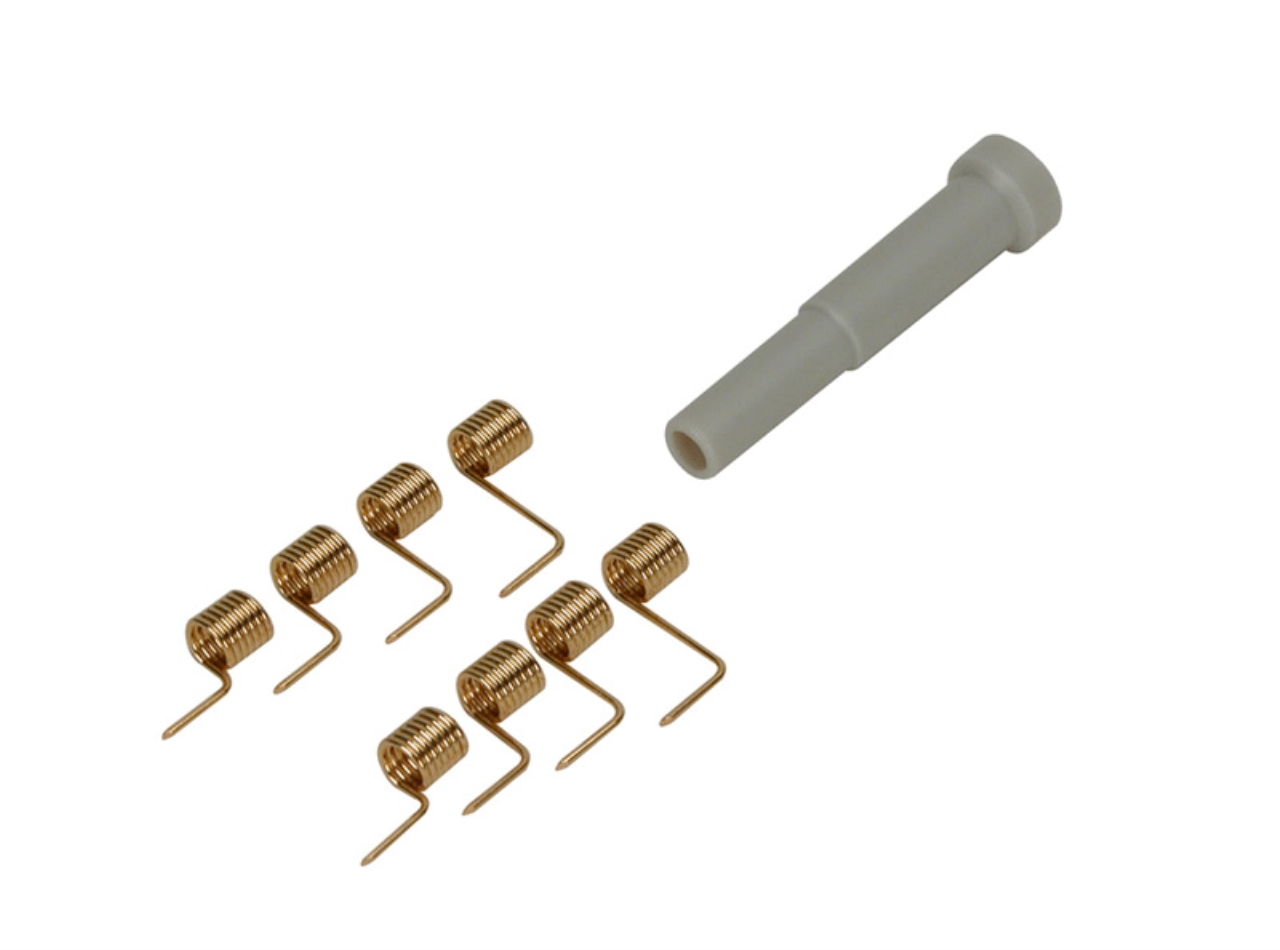

Cover Shell w/Probe Tip Grounds, 8pcs.
$17.001 Year Warranty
Overview
Cover for attenuator tip assembly with probe tip grounds. Kit includes 2 each of 4 ground tips sizes - 0.1", 0.2", 0.3" & 0.4" spacing. Compatible with all 3.5 mm Compact scope probes
- Gold plated ground tips
- Reference Tektronix 016-1077-00
Kit Contents
- (1) Cover Shell, 3.5mm, Grey (no Slip-on GND) - CT3651-8
- (2) Probe Tip Ground, 3.5mm, 2.5mm (0.1") Reach, Gold Plt. - CT3663
- (2) Probe Tip Ground, 3.5mm, 5.0mm (0.2") Reach, Gold Plt. - CT3664
- (2) Probe Tip Ground, 3.5mm, 7.5mm (0.3") Reach, Gold Plt. - CT3665
- (2) Probe Tip Ground, 3.5mm, 10mm (0.4") Reach, Gold Plt. - CT3666
Specifications
- Type
- 3.5mm
- Accessory Type
- Cover Shell w/Probe Tip Grounds
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
