CT3637-200-0
CT3637 Series
Active CatalogRetractable Sleeve Banana Plug Test Lead

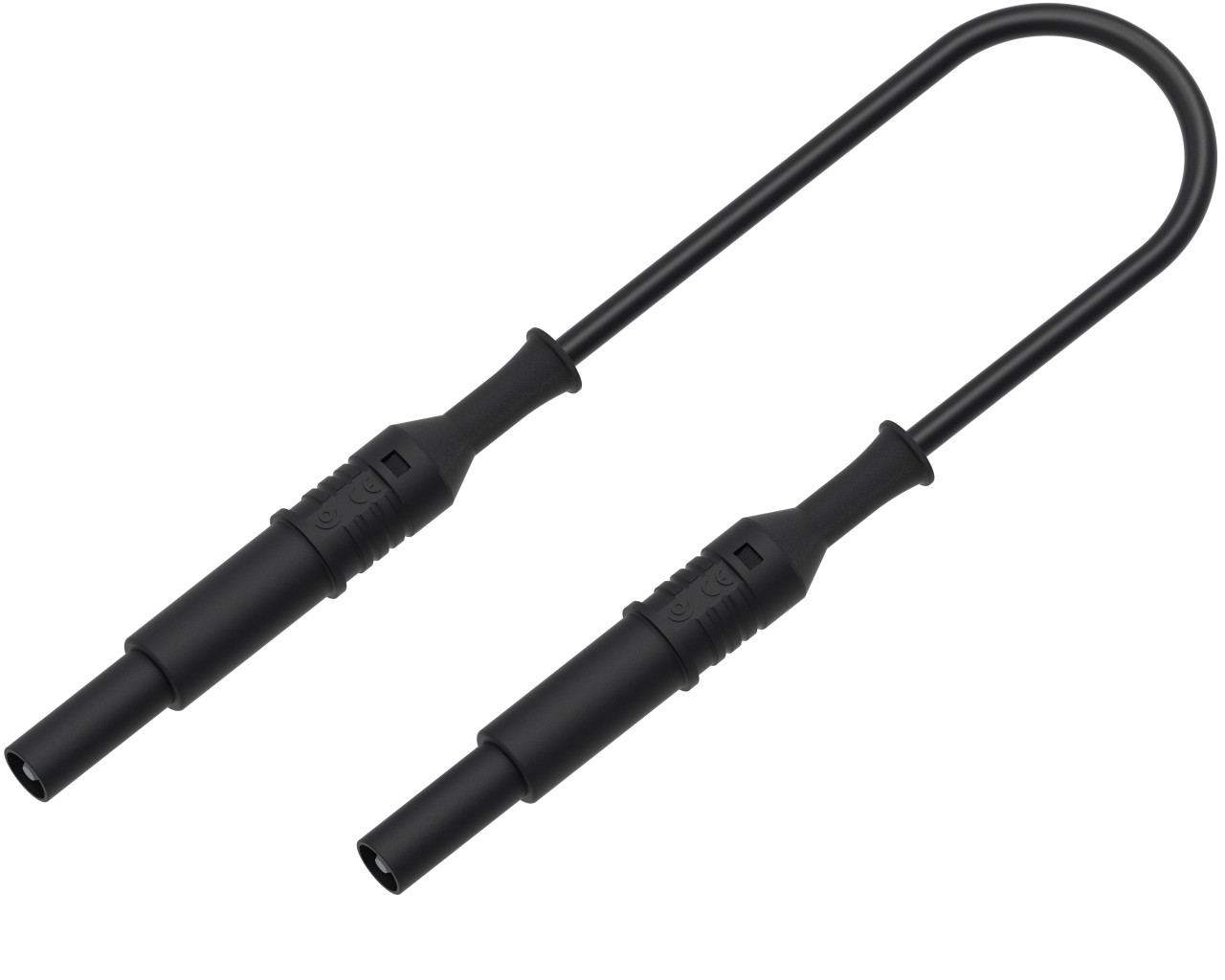

Lead, 4mm RShth P-P - SILIC 0.75, 200cm, Black
$31.001 Year Warranty
Where to Buy
Custom cables can be designed in the Test Lead Builder
Overview
Added safety and protection when standard banana jack connections are encountered. With Silicone jacketed wire, 0.75 mm2 (18 AWG). Covering sleeve retracts as you plug into the jack. Banana plug includes a Grey plastic insulation tip for added protection.
- Materials: Body: Polyamide; Contact: Brass, Nickel Plt.
- Banana Contact: BeCu, Nickel Plt.
- Meets IEC 61010-031 safety specifications
- Available in 6 standard lengths
- Available in 6 colors
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Connector A | Length | Color | Rated Voltage | Max Current | Wire Gauge | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3637-100-0 | Lead, 4mm RShth P-P - SILIC 0.75, 100cm, Black | $25.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 100 cm | Black | 600 V CAT II | 12 A | 18 AWG | EA |
 |
CT3637-100-2 | Lead, 4mm RShth P-P - SILIC 0.75, 100cm, Red | $25.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 100 cm | Red | 600 V CAT II | 12 A | 18 AWG | EA |
 |
CT3637-150-0 | Lead, 4mm RShth P-P - SILIC 0.75, 150cm, Black | $29.00 | Special Order | 1 Year | Banana Plug | Banana Plug | 150 cm | Black | 600 V CAT II | 12 A | 18 AWG | EA |
 |
CT3637-150-2 | Lead, 4mm RShth P-P - SILIC 0.75, 150cm, Red | $29.00 | Special Order | 1 Year | Banana Plug | Banana Plug | 150 cm | Red | 600 V CAT II | 12 A | 18 AWG | EA |
 |
CT3637-200-0 | Lead, 4mm RShth P-P - SILIC 0.75, 200cm, Black | $31.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 200 cm | Black | 600 V CAT II | 12 A | 18 AWG | EA |
 |
CT3637-200-2 | Lead, 4mm RShth P-P - SILIC 0.75, 200cm, Red | $31.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 200 cm | Red | 600 V CAT II | 12 A | 18 AWG | EA |
Specifications
- Type
- Banana Plug
- Connector A
- Banana Plug
- Length
- 200 cm
- Color
- Black
- Rated Voltage
- 600 V CAT II
- Max Current
- 12 A
- Wire Gauge
- 18 AWG
- Conductor Area
- 0.75 mm2
- Jacket Material
- Silicone
- OD
- 3.7 mm (0.146")
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
