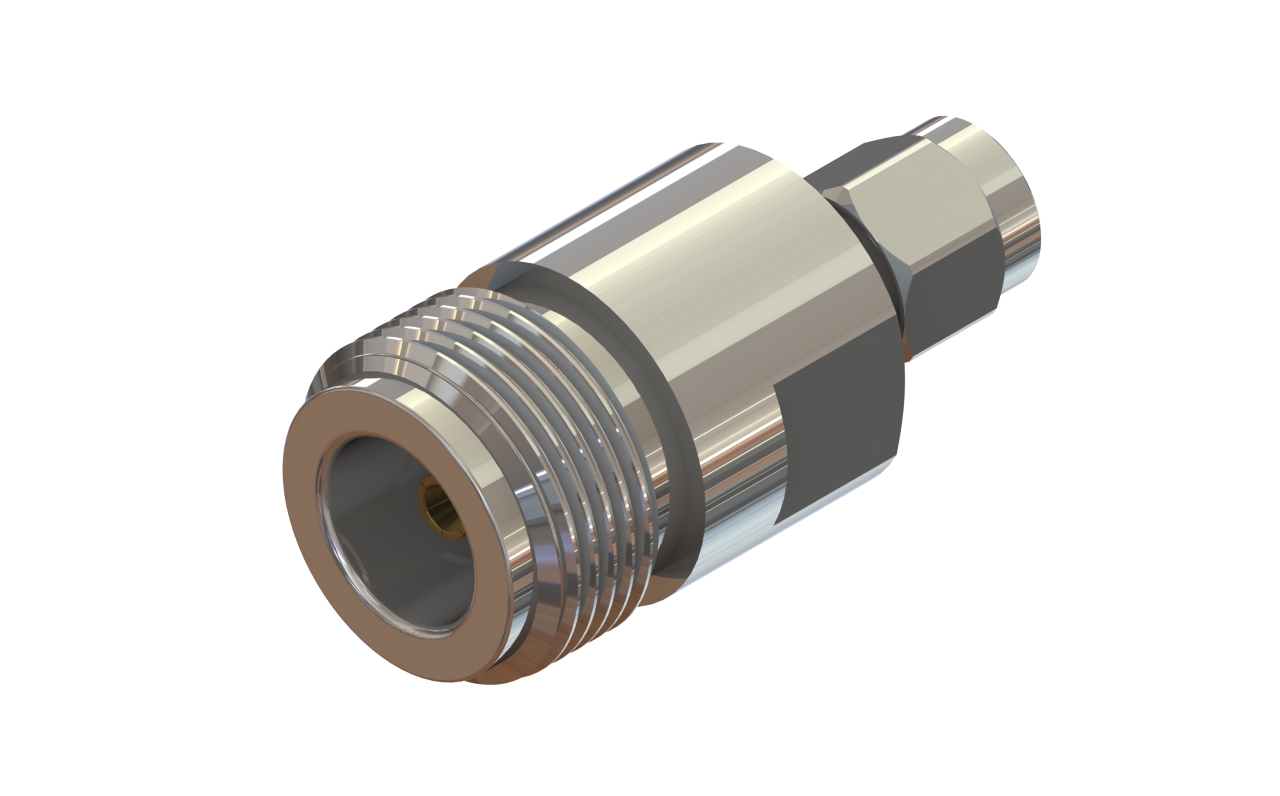

CT3321A
CT3321A Series
Active CatalogN-Type female to SMA male, 12 GHz, 50 Ω
N female to SMA male Adapter, 50 Ohm, Instrument Grade
$52.001 Year Warranty
Overview
The CT3321A in an Instrument Grade coaxial adapter which provides that next level of measurement confidence. The grade provides tighter tolerances and better materials for improved performance in critical measurements. It is that cost effective middle-ground between general-purpose and very expensive metrology grade.
The CT33231A features:
- Accuracy
- Low VSWR
- Flat frequency response
- Repeatability
- Cost effectiveness
*The replacement to the CT3321.
Specifications
- Connector Grade
- Instrument
- Frequency Range
- DC to 12 GHz
- Impedance
- 50 Ohms
- VSWR
- 1.20:1 @ DC - 12 GHz
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.69.4010
- Country of Origin
- China
- Lead Time
- 49 days
- See More Specifications
- Product Drawing
Documents
- Product DrawingProduct Drawing
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
