CT3320A
CT3320A Series
Active CatalogN-Type male to SMA female, 12 GHz, 50 Ω

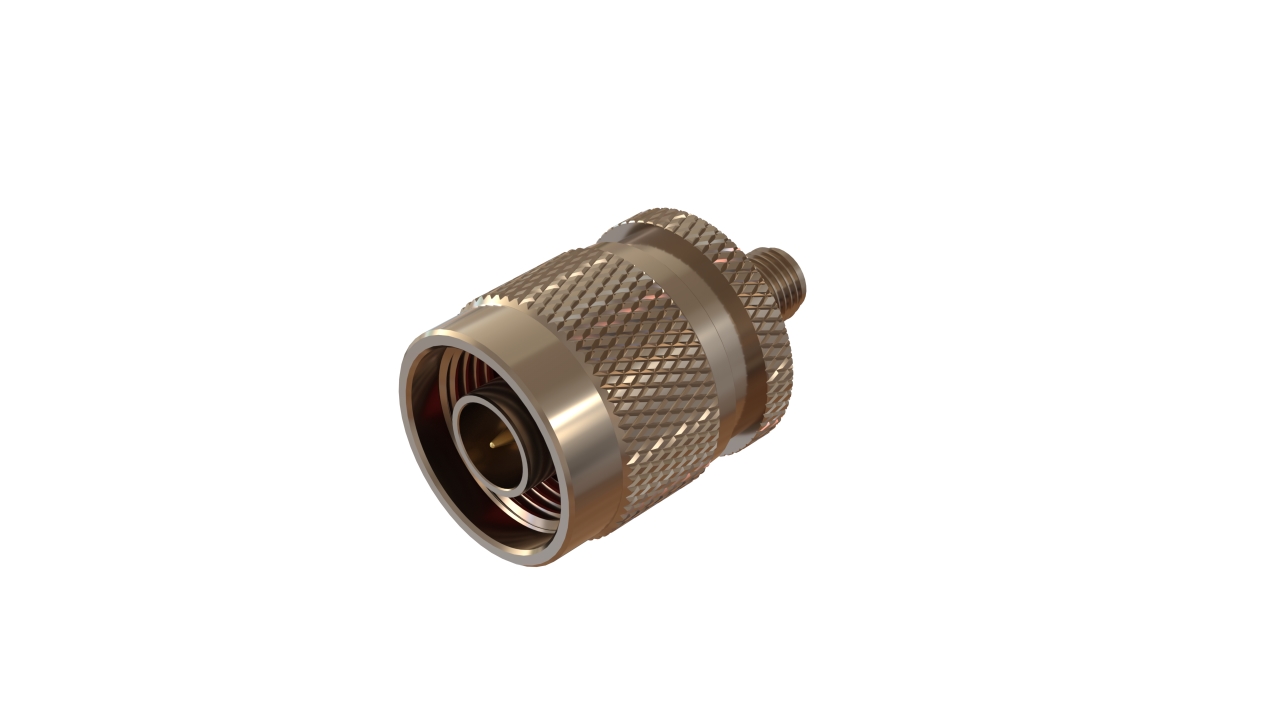

N male to SMA female Adapter, 50 Ohm, Instrument Grade
$31.001 Year Warranty
Overview
The CT3320A in an Instrument Grade coaxial adapter which provides that next level of measurement confidence. The grade provides tighter tolerances and better materials for improved performance in critical measurements. It is that cost effective middle-ground between general-purpose and very expensive metrology grade.
The CT3320A features:
- Accuracy
- Low VSWR
- Flat frequency response
- Repeatability
- Cost effectiveness
*The replacement to the CT3320.
Specifications
- Connector Grade
- Instrument
- Frequency Range
- DC to 18 GHz
- Impedance
- 50 Ohms
- VSWR
- 1.20:1
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.69.4010
- Country of Origin
- Taiwan
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
