CT3313
CT3313 Series
Active CatalogBNC Right-Angle, male-female, General Purpose

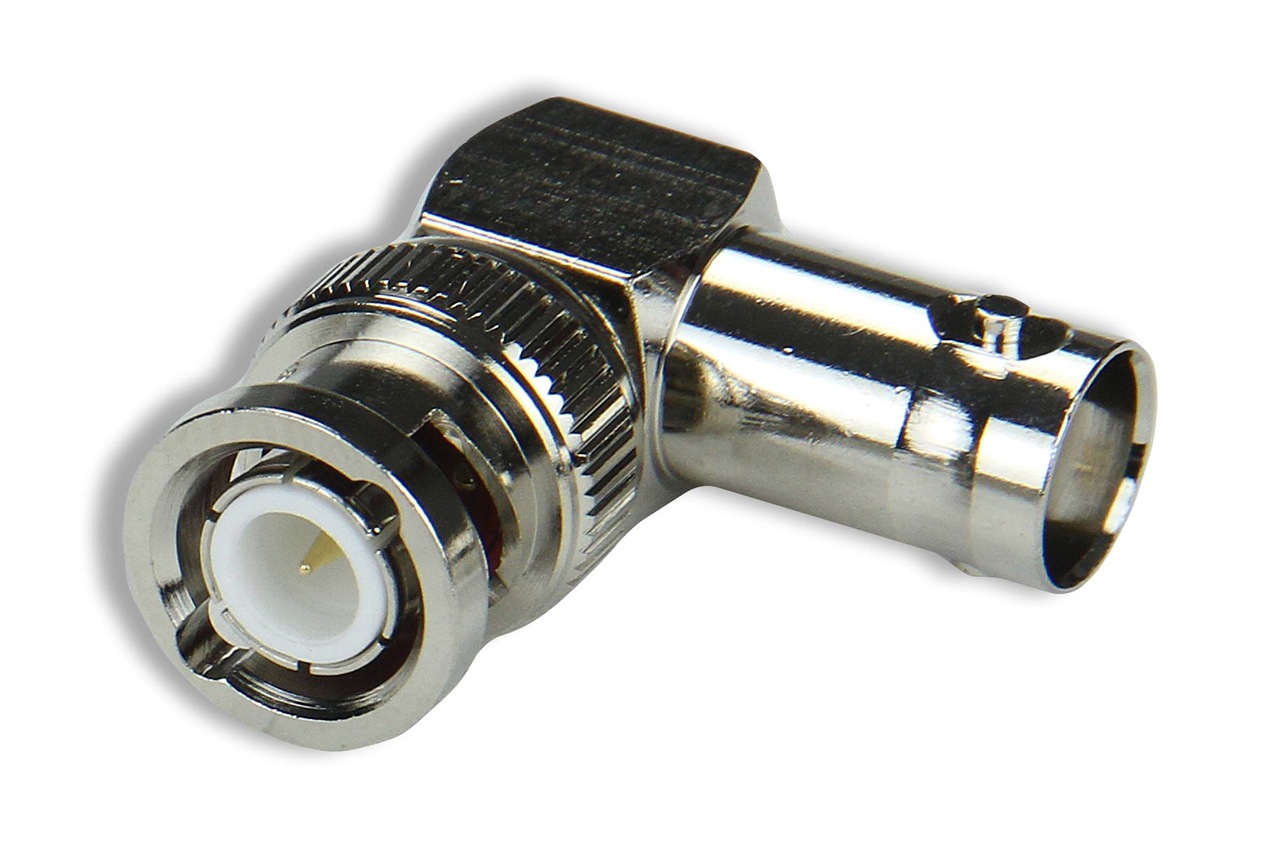

Right-Angle BNC male-female Adapter, 50ohm, 4 GHz
$9.001 Year Warranty
Overview
General Purpose Right-Angle BNC, male-female, 50 Ω in-series coaxial adapter.
- General Purpose Grade
- Body: Brass, Nickel Plated
- Contact: Brass and BeCu, Gold Plated
- Dielectric: PTFE
Specifications
- Connector Grade
- General Purpose
- Frequency Range
- DC to 4 GHz (various)
- Impedance
- 50 Ohms
- VSWR
- 1.30:1 - DC to 4 GHz
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.69.4010
- Country of Origin
- Taiwan
- Lead Time
- 30 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
