CT3290RA
CT3290RA Series
Active Catalog3.5mm Compact Oscilloscope Probe

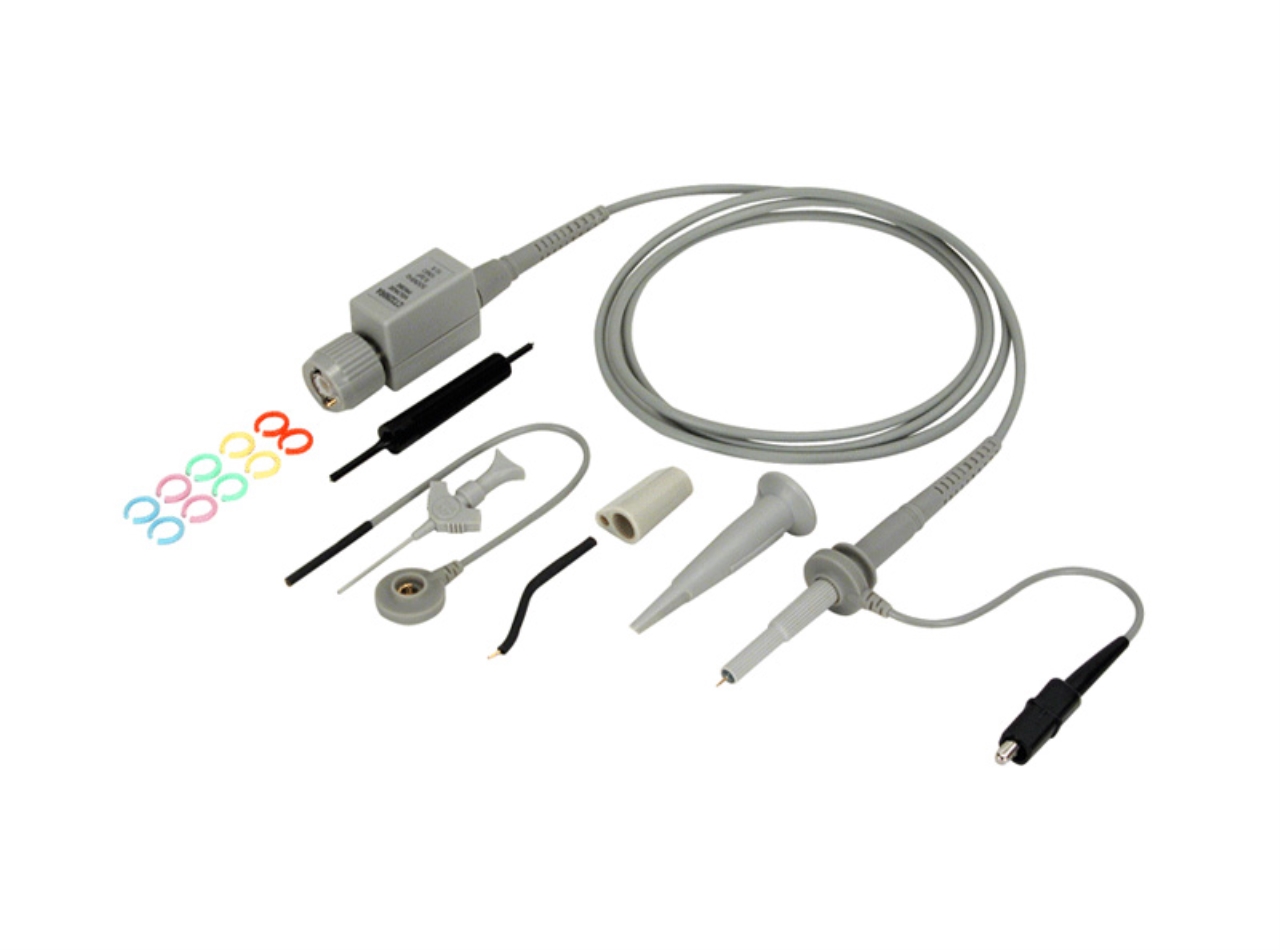

3.5 mm Compact Oscilloscope Probe, 500 MHz, 10x, 1.3 m with Right-Angle
$200.002 Years Warranty
Where to Buy
Checking distributor stock…
Overview
One of our highest frequency passive probes at 500 MHz. This compact probe is an excellent replacement for probes used with high frequency scopes. Probe includes a readout actuator pin (sense pin) on the BNC connector.
Replacement for Tektronix P6139A
The CT3667 is an accessory for the CT3290RA.
Specifications
- Type
- GP
- Attenuation
- 10x
- Bandwidth
- 500 MHz
- Rated Voltage
- 300 V CAT II
- Cable Length
- 1.3 m
- Impedance
- 10 MΩ /8 pF
- Input Capacitance
- 8 pF
- Rise Time
- 0.7 ns
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Datasheet
