CT3286
CT3286 Series
Active CatalogExtra Large Alligator Clips

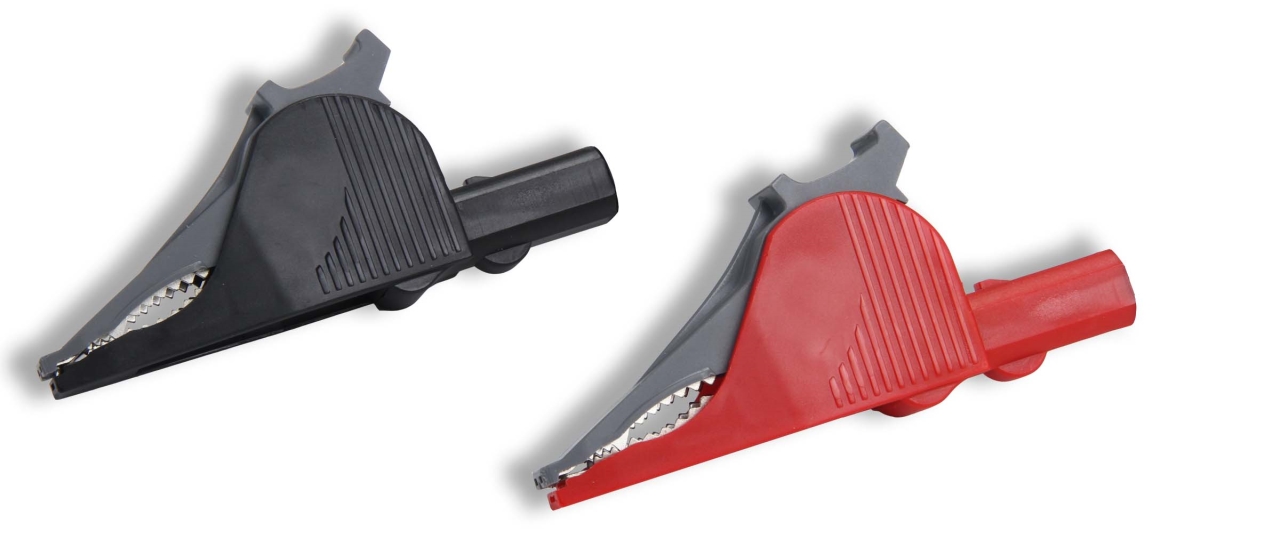

Insulated Alligator Clip, Ex-Large (Elephant Clips) Pair B/R
$22.001 Year Warranty
Overview
Pair of (R & B) Fully insulated Extra-Large alligator clips with 4mm jack. Jaw opens to 32 mm (1.26"). Meets IEC 61010 safety standards.
- Large 1.26" (32mm) Jaw Opening
- Slim, Stylish body
- 1,000V CATIII / 600V CATIV Safety Rating
- 36A Current Rating
- (2) Ex Large Alligator Clips (1) Red (1) Black
- RoHS 2 Compliant
- Materials: Body: Polypropylene; Contact: Steel, Nickel Plt.
Kit Contents
Specifications
- Type
- Fully Insulated
- Rated Voltage
- 1,000 V CAT III / 600 V CAT IV
- Max Current
- 36 A
- Operating Temperature
- -20 to +80 degC
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 84 days
- See More Specifications
- Datasheet
