Overview

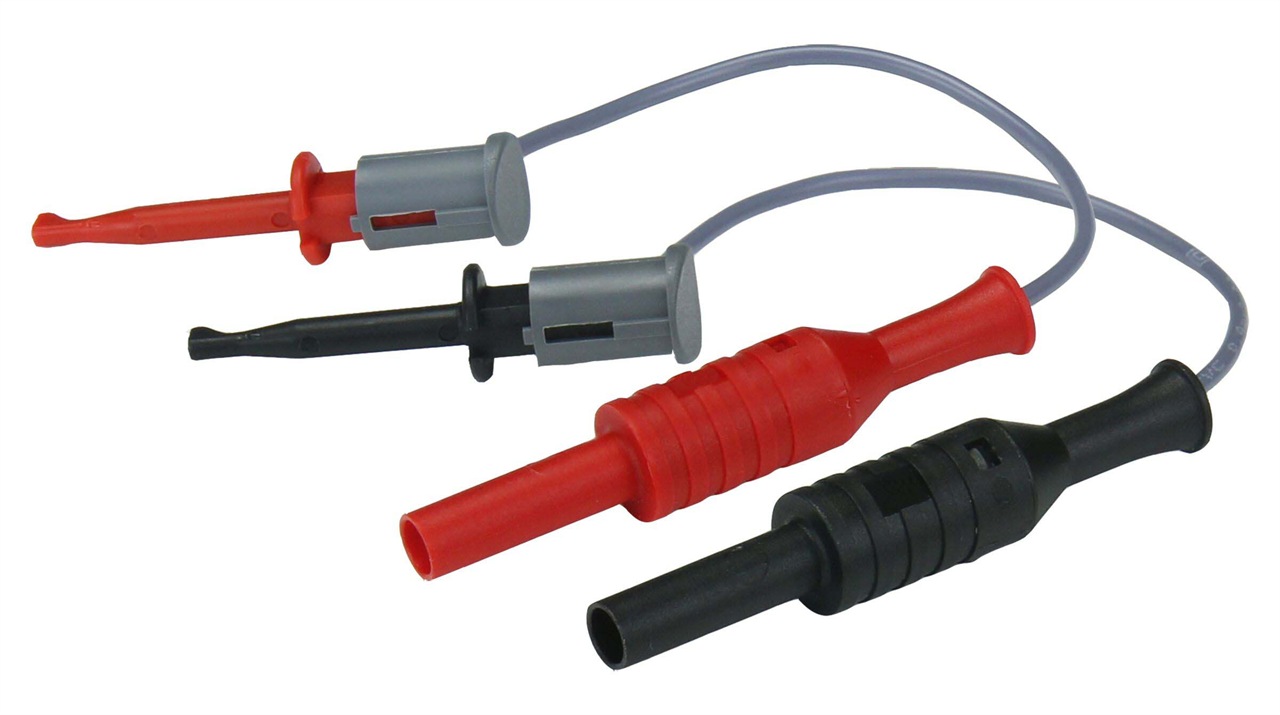

Attach these MiniPro Test Clips to DMM 4mm sheathed banana plug leads.
- Length: 10 cm (4")
- Black and red, pair
Kit Contents
- (1) Lead, MiniPro - J - PVC 0.40, 10cm, Black - CT3187-10-0
- (1) Lead, MiniPro - J - PVC 0.40, 10cm, Red - CT3187-10-2
Specifications
- Type
- Surface Mount Device (SMD)
- Connector A
- Surface Mount Device (SMD)
- Connector B
- MiniPro Test Clip
- Rated Voltage
- 33 VAC / 70 VDC
- Max Current
- 6 A
- Wire Gauge
- 21 AWG
- Conductor Area
- 0.40 mm²
- Jacket Material
- PVC
- OD
- 2.0mm (0.079")
- Operating Temperature
- -20 to +80 degC
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 84 days
- See More Specifications
- Datasheet
