CT3276-6
CT3276 Series
Active CatalogSolderless Banana Plug

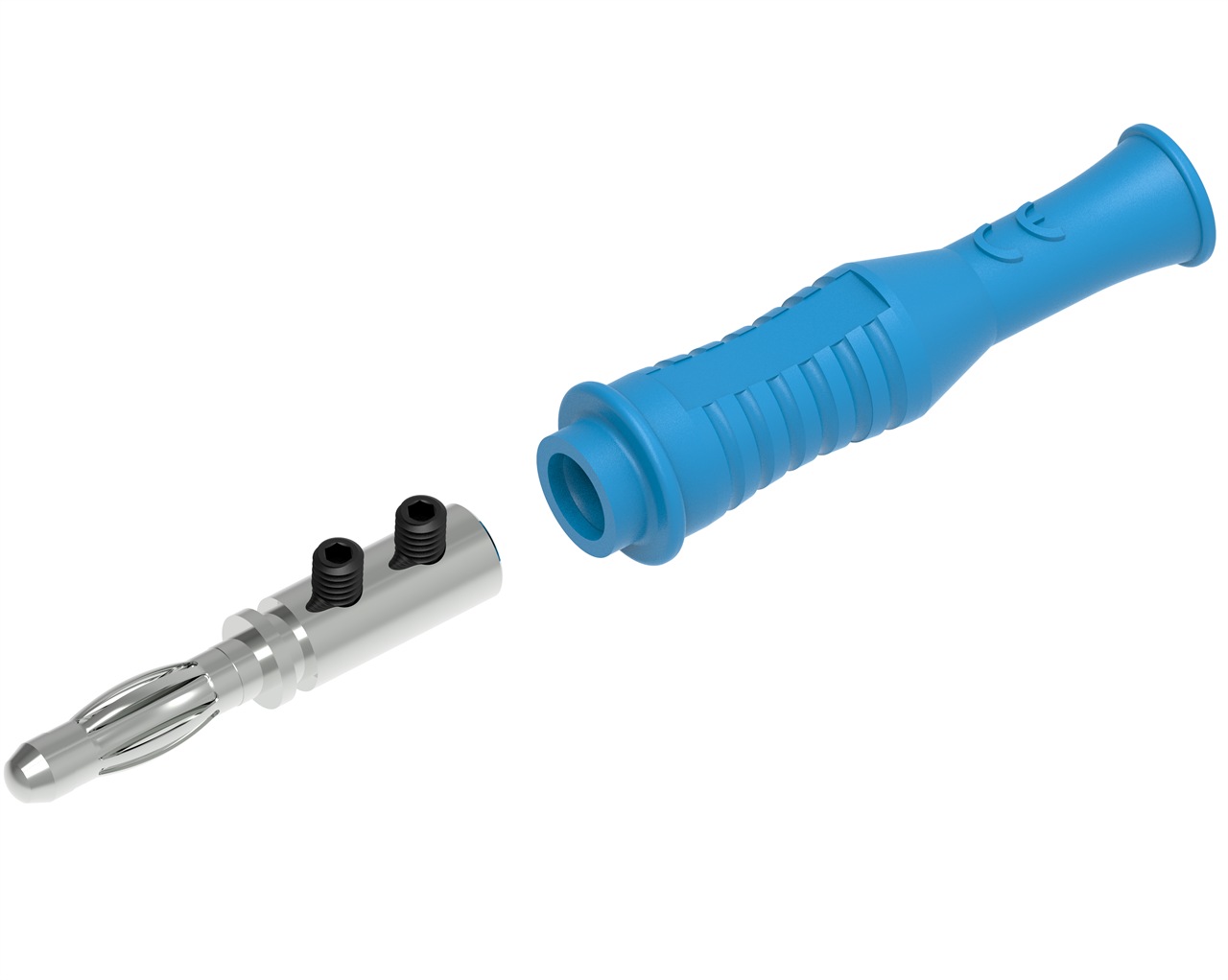

Do It Yourself FlexPlug Banana Plug - Blue
$4.651 Year Warranty
Where to Buy
Overview
Do-It-Yourself In-Line Flex Plug banana plug. Easy to assembly without solder. Santoprene insulated bodies for sure grip and wire bend relief.
- Materials: Body: Santoprene; Plug: Brass, Nickel Plt; Contact: BeCu, Nickel Plt
- Available in 6 colors
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3276-0 | DIY FlexPlug BPlug - Black | $4.65 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Black | Brass, Nickel Plated | Santoprene | 36 | EA |
 |
CT3276-2 | DIY FlexPlug BPlug - Red | $4.65 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Red | Brass, Nickel Plated | Santoprene | 36 | EA |
 |
CT3276-4 | DIY FlexPlug BPlug - Yellow | $4.65 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Yellow | Brass, Nickel Plated | Santoprene | 36 | EA |
 |
CT3276-5 | DIY FlexPlug BPlug - Green | $4.65 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Green | Brass, Nickel Plated | Santoprene | 36 | EA |
 |
CT3276-6 | DIY FlexPlug BPlug - Blue | $4.65 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Blue | Brass, Nickel Plated | Santoprene | 36 | EA |
 |
CT3276-9 | DIY FlexPlug BPlug - White | $5.00 | Special Order | 1 Year | Inline | 30 VAC / 60 VDC | White | Brass, Nickel Plated | Santoprene | 36 | EA |
Specifications
- Type
- Inline
- Rated Voltage
- 30 VAC / 60 VDC
- Color
- Blue
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Santoprene
- Max Current
- 36
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
Documents
- Product DrawingProduct Drawing
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
