Product resources
CT3251-1
CT3251 Series
Special OrderExtra Large Alligator Clip

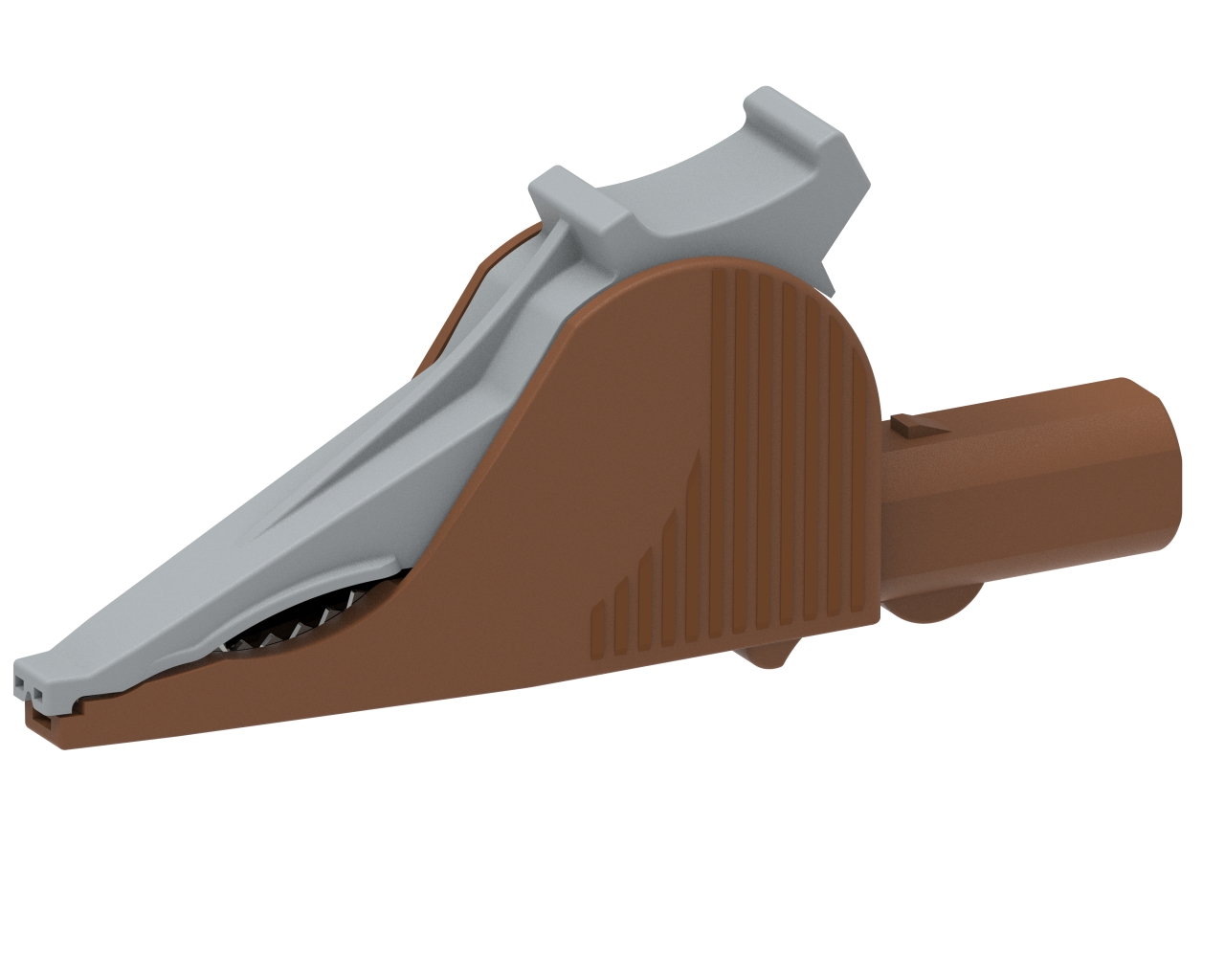

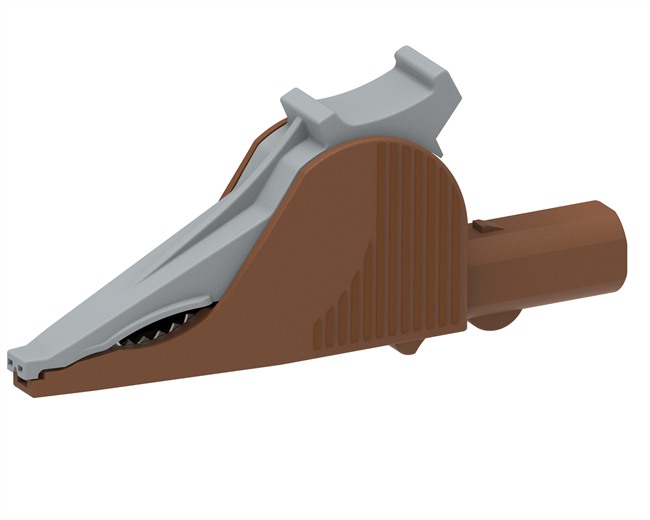

Insulated Alligator Clip, Ex-Large (Elephant Clip), Brown
$11.001 Year Warranty
Where to Buy
Overview
Fully insulated Extra-Large alligator clip with 4mm banana jack. Jaw opens to 32 mm (1.26"). Works with both bench and handheld digital multimeters.
Meets IEC 61010-031 safety standards.
- Large 1.26" (32mm) Jaw Opening
- Slim, Stylish body
- 1,000V CATIII / 600V CATIV Safety Rating
- 36A Current Rating
- 10 Colors Available
- RoHS 2 Compliant
- Materials: Body: Polypropylene; Contact: Steel, Nickel Plt.
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Color | Rated Voltage | Max Current | Operating Temperature | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3251-0 | Insulated Alligator Clip, Ex-Large (Elephant Clip), Black | $11.00 | Active Catalog | 1 Year | Fully Insulated | Black | 1,000 V CAT III / 600 V CAT IV | 36 A | -20° to +80° C | EA |
 |
CT3251-1 | Insulated Alligator Clip, Ex-Large (Elephant Clip), Brown | $11.00 | Special Order | 1 Year | Fully Insulated | Brown | 1,000 V CAT III / 600 V CAT IV | 36 A | -20° to +80° C | EA |
 |
CT3251-2 | Insulated Alligator Clip, Ex-Large (Elephant Clip), Red | $11.00 | Active Catalog | 1 Year | Fully Insulated | Red | 1,000 V CAT III / 600 V CAT IV | 36 A | -20° to +80° C | EA |
 |
CT3251-4 | Insulated Alligator Clip, Ex-Large (Elephant Clip), Yellow | $11.00 | Active Catalog | 1 Year | Fully Insulated | Yellow | 1,000 V CAT III / 600 V CAT IV | 36 A | -20° to +80° C | EA |
 |
CT3251-5 | Insulated Alligator Clip, Ex-Large (Elephant Clip), Green | $11.00 | Active Catalog | 1 Year | Fully Insulated | Green | 1,000 V CAT III / 600 V CAT IV | 36 A | -20° to +80° C | EA |
 |
CT3251-6 | Insulated Alligator Clip, Ex-Large (Elephant Clip), Blue | $11.00 | Active Catalog | 1 Year | Fully Insulated | Blue | 1,000 V CAT III / 600 V CAT IV | 36 A | -20° to +80° C | EA |
 |
CT3251-7 | Insulated Alligator Clip, Ex-Large (Elephant Clip), Violet | $11.00 | Special Order | 1 Year | Fully Insulated | Violet | 1,000 V CAT III / 600 V CAT IV | 36 A | -20° to +80° C | EA |
 |
CT3251-8 | Insulated Alligator Clip, Ex-Large (Elephant Clip), Grey | $11.00 | Special Order | 1 Year | Fully Insulated | Grey | 1,000 V CAT III / 600 V CAT IV | 36 A | -20° to +80° C | EA |
 |
CT3251-9 | Insulated Alligator Clip, Ex-Large (Elephant Clip), White | $12.00 | Special Order | 1 Year | Fully Insulated | White | 1,000 V CAT III / 600 V CAT IV | 36 A | -20° to +80° C | EA |
Specifications
- Type
- Fully Insulated
- Color
- Brown
- Rated Voltage
- 1,000 V CAT III / 600 V CAT IV
- Max Current
- 36 A
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
