Overview

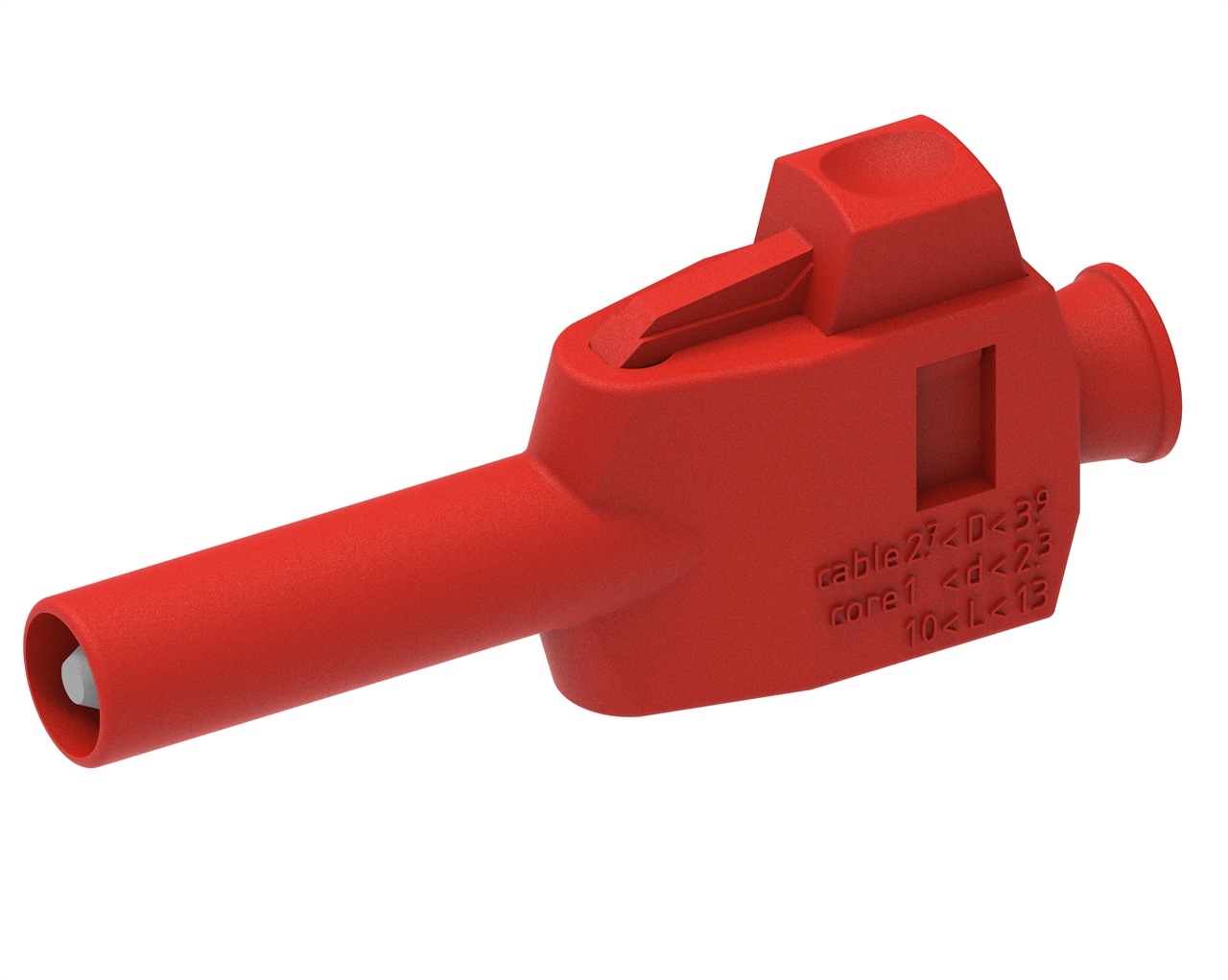

4 mm DIY Quick Connect, In-Line, Sheathed Banana Plug with Solderless Clamp. Build your own test leads and meet the latest international safety standards with this sheath plug assembly. Just strip the wire, depress the spring loaded button, insert the wire and release. The connection is complete including a secure grip on the wire's insulation. * IEC rating when using equally rated lead wire. CAUTION - Wire must not be under voltage during assembly.
- One Piece (1) piece housing
- Materials: Body: Polyamide (Nylon); Plug: Brass, Nickel Plt; Contact: BeCu, Nickel Plt
- Conductor Size: 2.5mm2 (Approx. 13AWG) Max.; Jacket: 3.9mm (0.154") Max.
- RoHS 2 Compliant.
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3250-0 | Sheathed Quick Plug - Black | $8.75 | Active Catalog | 1 Year | Sheathed | 600 V CAT III | Black | Brass, Nickel Plated | Polyamide | 20 | EA |
 |
CT3250-2 | Sheathed Quick Plug - Red | $8.75 | Active Catalog | 1 Year | Sheathed | 600 V CAT III | Red | Brass, Nickel Plated | Polyamide | 20 | EA |
Specifications
- Type
- Sheathed
- Rated Voltage
- 600 V CAT III
- Color
- Red
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 20
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
