CT3249-5
CT3249 Series
Active CatalogQuick Connect Banana Plug

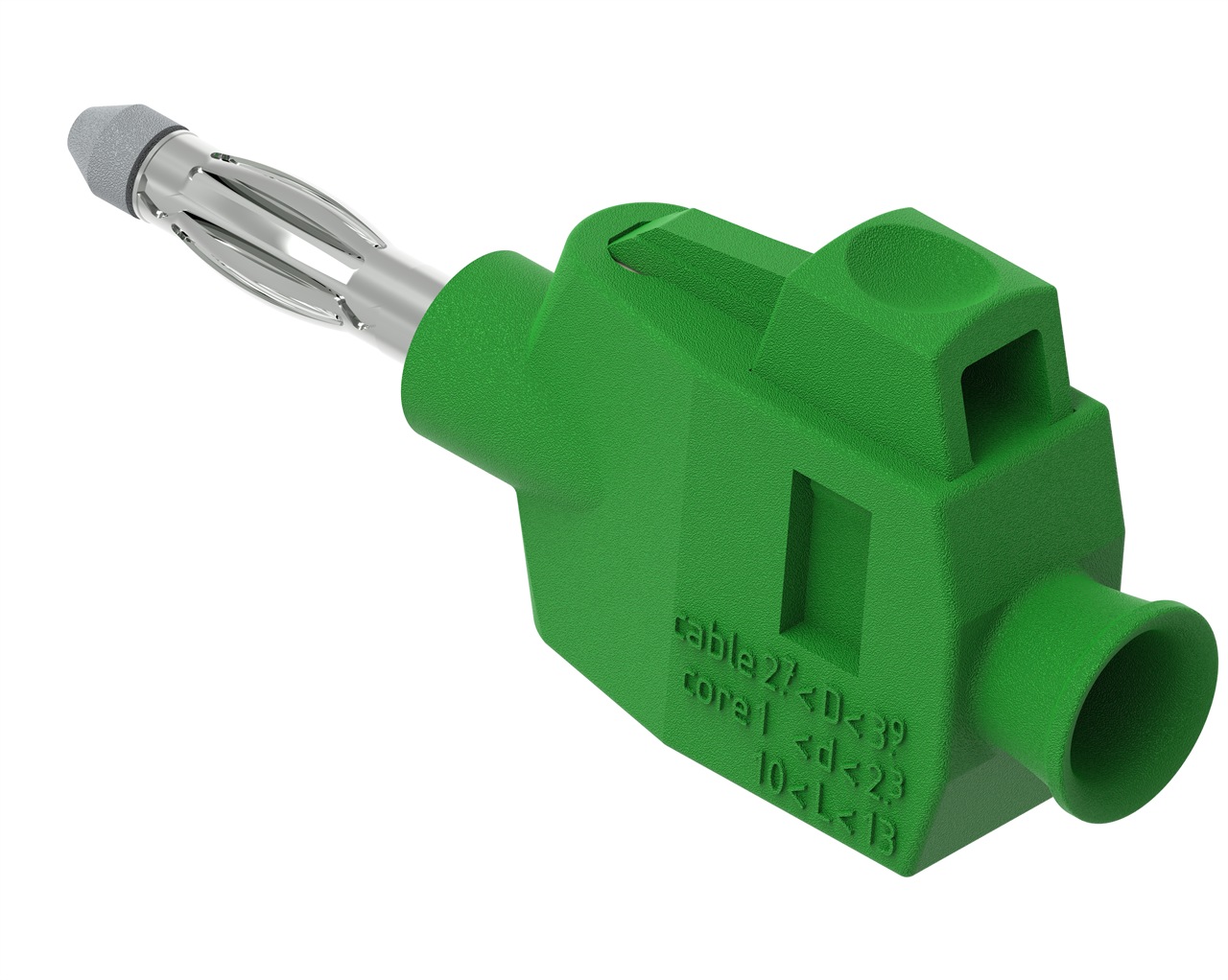

Standard Quick Plug - Green
$10.001 Year Warranty
Where to Buy
Overview
Do-It-Yourself Quick Connect banana plug. Just strip the wire, depress the spring loaded button, insert the wire and release. The connection is complete including a secure grip on the wire's insulation.
- Materials: Body: Polyamide (Nylon); Plug: Brass, Nickel Plt; Contact: BeCu, Nickel Plt
- Conductor Size: 2.5mm2 (Approx. 13AWG) Max.; Jacket: 3.9mm (0.154") Max.
- RoHS 2 Compliant.
- Available in 6 colors
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3249-0 | Standard Quick Plug - Black | $10.00 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Black | Brass, Nickel Plated | Polyamide | 20 | EA |
 |
CT3249-2 | Standard Quick Plug - Red | $10.00 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Red | Brass, Nickel Plated | Polyamide | 20 | EA |
 |
CT3249-4 | Standard Quick Plug - Yellow | $10.00 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Yellow | Brass, Nickel Plated | Polyamide | 20 | EA |
 |
CT3249-5 | Standard Quick Plug - Green | $10.00 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Green | Brass, Nickel Plated | Polyamide | 20 | EA |
 |
CT3249-6 | Standard Quick Plug - Blue | $10.00 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Blue | Brass, Nickel Plated | Polyamide | 20 | EA |
 |
CT3249-9 | Standard Quick Plug - White | $10.50 | Special Order | 1 Year | Inline | 30 VAC / 60 VDC | White | Brass, Nickel Plated | Polyamide | 20 | EA |
Specifications
- Type
- Inline
- Rated Voltage
- 30 VAC / 60 VDC
- Color
- Green
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 20
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
