CT3233-100
CT3233-100 Series
Active CatalogLead Set, Stacking Banana Plugs, 100 cm, 6 Colors
Lead, 4mm Stk P-P Set - PVC 0.75, 100cm, 6 Clr
$67.001 Year Warranty
Where to Buy
| Distributor | Availability | |
|---|---|---|
| DIGIKEY | Low Stock | Buy Now → |
| MOUSER ELECTRONICS | Low Stock | Buy Now → |
Select Variant
Length
Overview

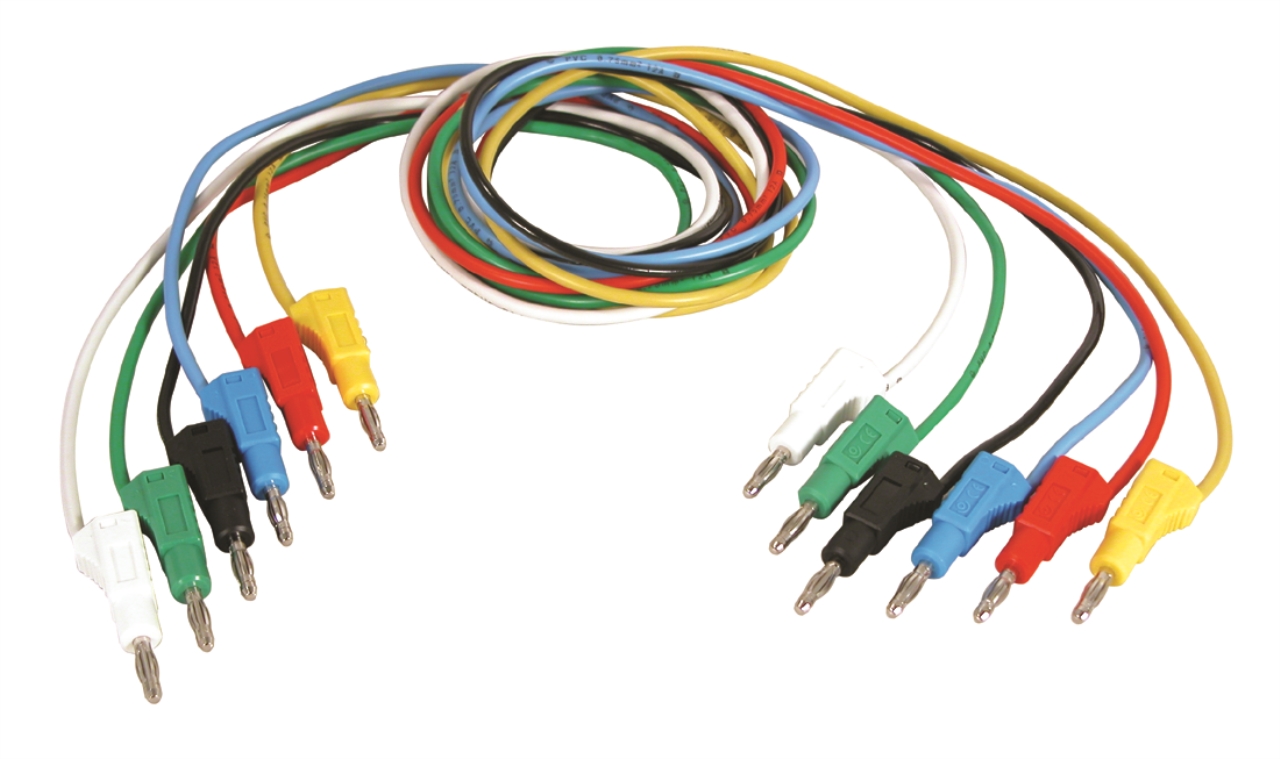

This premium lead set from Cal Test Electronics includes six 100 cm color-coded stacking banana plug leads for fast, tangle-free connections. Each lead features rugged PP insulation and nickel-plated brass and BeCu contacts for high conductivity and durability. The 0.75 mm² (18 AWG) wire ensures flexibility without sacrificing performance. Includes black, red, yellow, green, blue, and white leads — backed by a 1-year warranty.
Kit Contents
- (1) Lead, 4mm Stk P-P - PVC 0.75, 100cm, Black - CT2126-100-0
- (1) Lead, 4mm Stk P-P - PVC 0.75, 100cm, Red - CT2126-100-2
- (1) Lead, 4mm Stk P-P - PVC 0.75, 100cm, Yellow - CT2126-100-4
- (1) Lead, 4mm Stk P-P - PVC 0.75, 100cm, Green - CT2126-100-5
- (1) Lead, 4mm Stk P-P - PVC 0.75, 100cm, Blue - CT2126-100-6
- (1) Lead, 4mm Stk P-P - PVC 0.75, 100cm, White - CT2126-100-9
Specifications
- Type
- Banana Plug
- Connector A
- Banana Plug
- Length
- 100 cm
- Color
- Pack
- Rated Voltage
- 33 VAC / 70 VDC
- Wire Gauge
- 18 AWG
- Conductor Area
- 0.75 mm2
- Jacket Material
- PP
- Operating Temperature
- -20 to +80 degC
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 98 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
