Overview

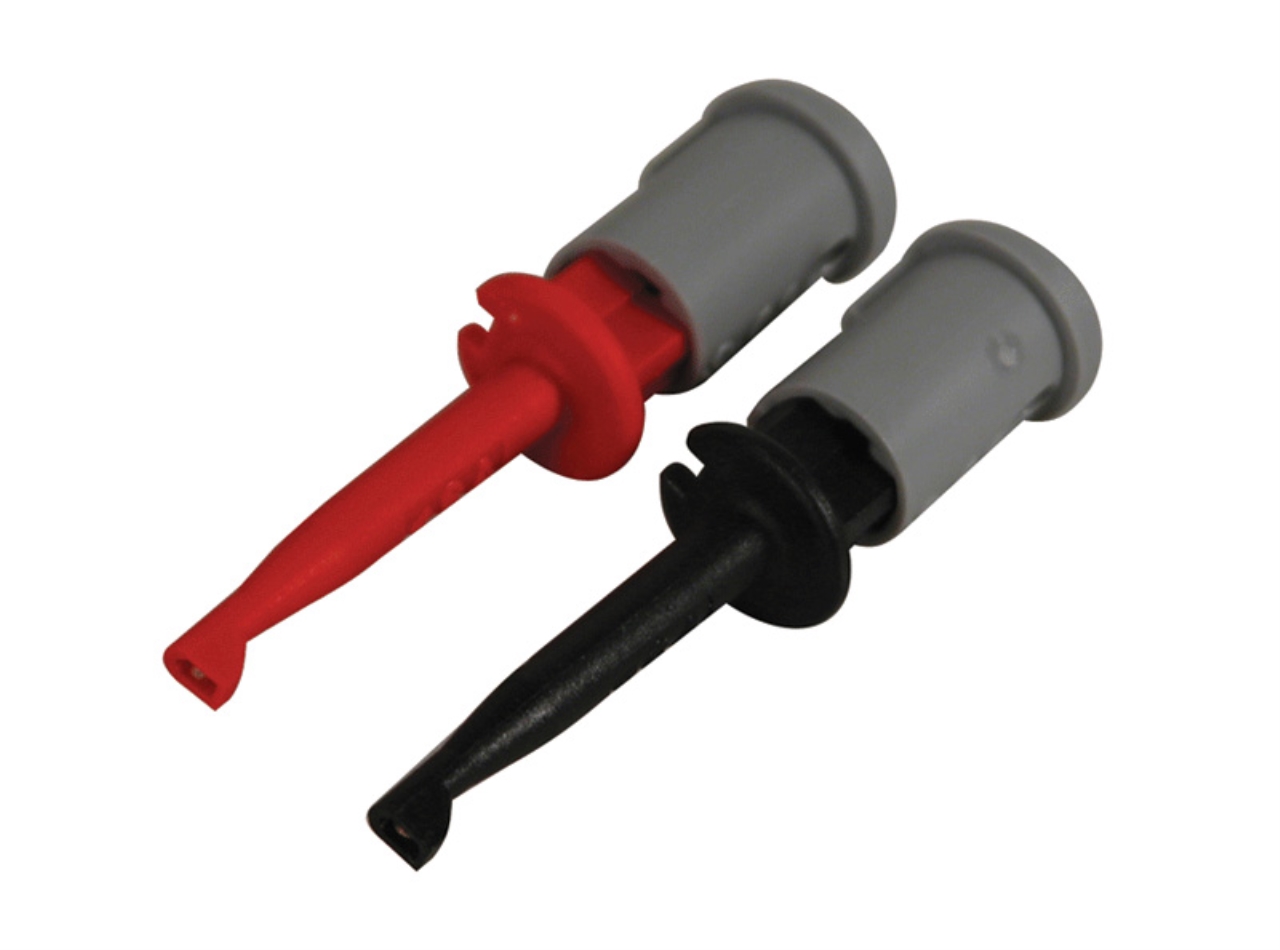

Pair of DIY MiniPro hook clips for general purpose electronic testing. With a compact size and easy to solder assembly, the clips are ideally suited for today's tight measurement needs. The clips feature smooth, soft touch actuation with high quality gold plated BeCu equivalent contact hooks. The MiniPro clips also feature a snap-lock to securely fix the cap to the body.
- (2) MiniPro Test Clip: (1) Red (1) Black
- Gold plated BeCu contact hook
- Fits 21 AWG (0.40 mm2) wire
Kit Contents
Specifications
- Type
- MiniPro
- Rated Voltage
- 33 Vac / 70 Vdc
- Max Current
- 6 A
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 84 days
- See More Specifications
- Datasheet
