CT3207
CT3207 Series
Active CatalogSheathed Banana Jack DIY
Do It Yourself, 4 mm Sheathed Banana Jacks, Solderless - Black and Red Pair
$11.101 Year Warranty
Overview
Model number is a pair (black and red) fully insulated sheathed, 4mm in-line banana jacks. Set screws provide solderless assembly. Provides 1,000 V IEC 61010-031 rating when assembled correctly.
* IEC rating when using equally rated lead wire.

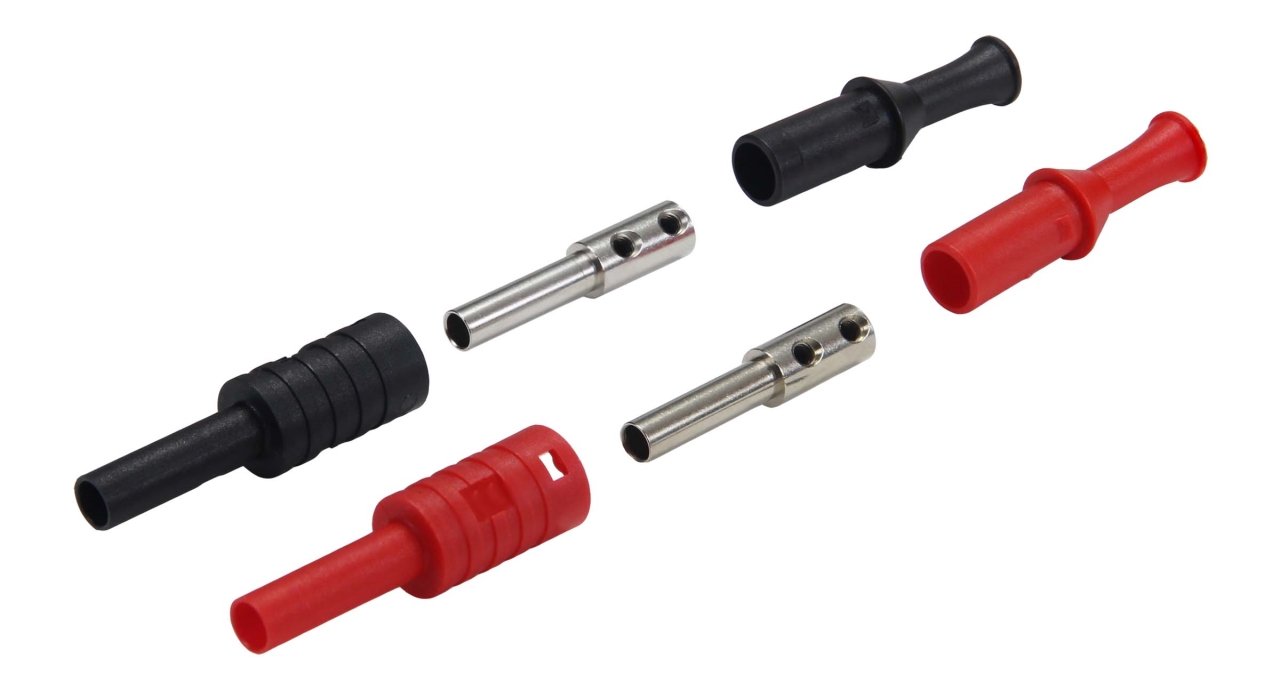

- Three (3) piece assembly easily snaps together
- Requires 1.5 mm allen wrench for assembly
Individual jack model number CT3134
Kit Contents
Specifications
- Type
- Inline
- Rated Voltage
- 1000 V CAT III
- Color
- Black/Red Pair
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 36 A
- Max Voltage
- -
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 84 days
- See More Specifications
- Datasheet
